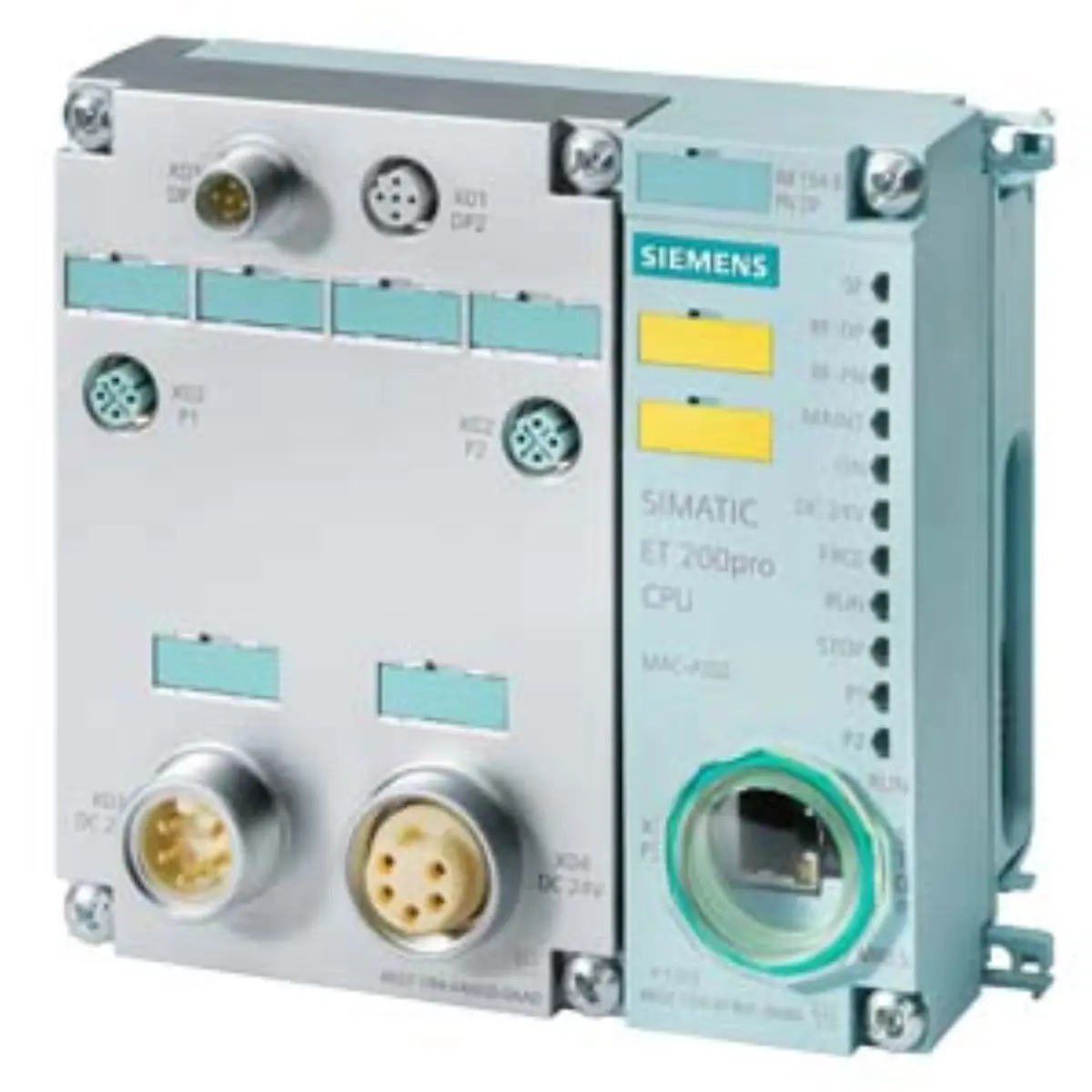

Siemens 6ES7154-8FB01-0AB0 IM 154-8 F PN/DP CPU Inquiry

Part number

6ES7154-8FB01-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

IM 154-8 F PN/DP CPU

Lifecycle

Phase Out Announce

Dimensions

16.1 x 14.2 x 7.6 cm

Net weight

0.771 Kg

Source category

IM 154-8 F PN/DP CPU

• Integrated PROFINET interface enables high-speed Ethernet communication for modern industrial networks. Keep dimensions 16.1 x 14.2 x 7.6 cm and net weight 0.771 Kg unchanged while comparing project documents and product image evidence.
• Built-in PROFIBUS DP master and slave functionality supports legacy and standard fieldbus connections.
• Fail-safe design ensures safety-related processes meet stringent industrial safety certification requirements.
• IP65/67 degree of protection allows operation in harsh industrial environments with dust and water exposure.
• Micro Memory Card slot facilitates data storage and configuration management for the CPU module.
• Connection module requirement ensures proper physical interfacing with the ET200 PRO station backbone.

• Part number 6ES7154-8FB01-0AB0 identifies the specific IM 154-8 F PN/DP CPU variant. Use the source path Automation technology / Fail-safe CPUs / IM 154-8 F PN/DP CPU to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The 'F' designation indicates fail-safe capabilities integrated directly into the processing unit logic.
• PN/DP suffix confirms dual protocol support for both PROFINET and PROFIBUS communication standards.
• Product classification places this item under the broader SIMATIC DP automation technology umbrella.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 16.1 cm in width, 14.2 cm in height, and 7.6 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7154-8FB01-0AB0 record before publication.
• Net weight is listed at 0.771 kg, indicating a compact form factor for DIN rail mounting.
• Lifecycle status is currently noted as Phase Out Announce for project planning purposes.
• Working memory capacity stands at 512 KB for program storage and data handling operations.
• Environmental rating includes IP65 and IP67 classifications for dust tightness and water jet resistance.

• Visual inspection should confirm the presence of the integrated PROFINET port on the front panel.
• Check for the PROFIBUS connector location adjacent to the primary communication interface slots.
• Verify the Micro Memory Card slot position for easy access during maintenance procedures.
• Ensure labeling matches the exact part number 6ES7154-8FB01-0AB0 for accurate inventory identification.

• Review project documentation to confirm the need for fail-safe CPU functionality in the station.
• Verify that the existing ET200 PRO infrastructure supports the required PROFINET and PROFIBUS protocols.
• Check if additional connection modules are needed to complete the physical installation setup.
• Confirm space constraints align with the 16.1 x 14.2 x 7.6 cm physical dimensions.

• Source parameter review indicates the unit requires a separate connection module for full operation.
• Project document review should address the Phase Out Announce lifecycle status implications.
• Technical specification verification confirms the 512 KB working memory meets basic automation needs.
• Physical inspection guidelines highlight the importance of verifying IP65/67 ratings for the environment.
