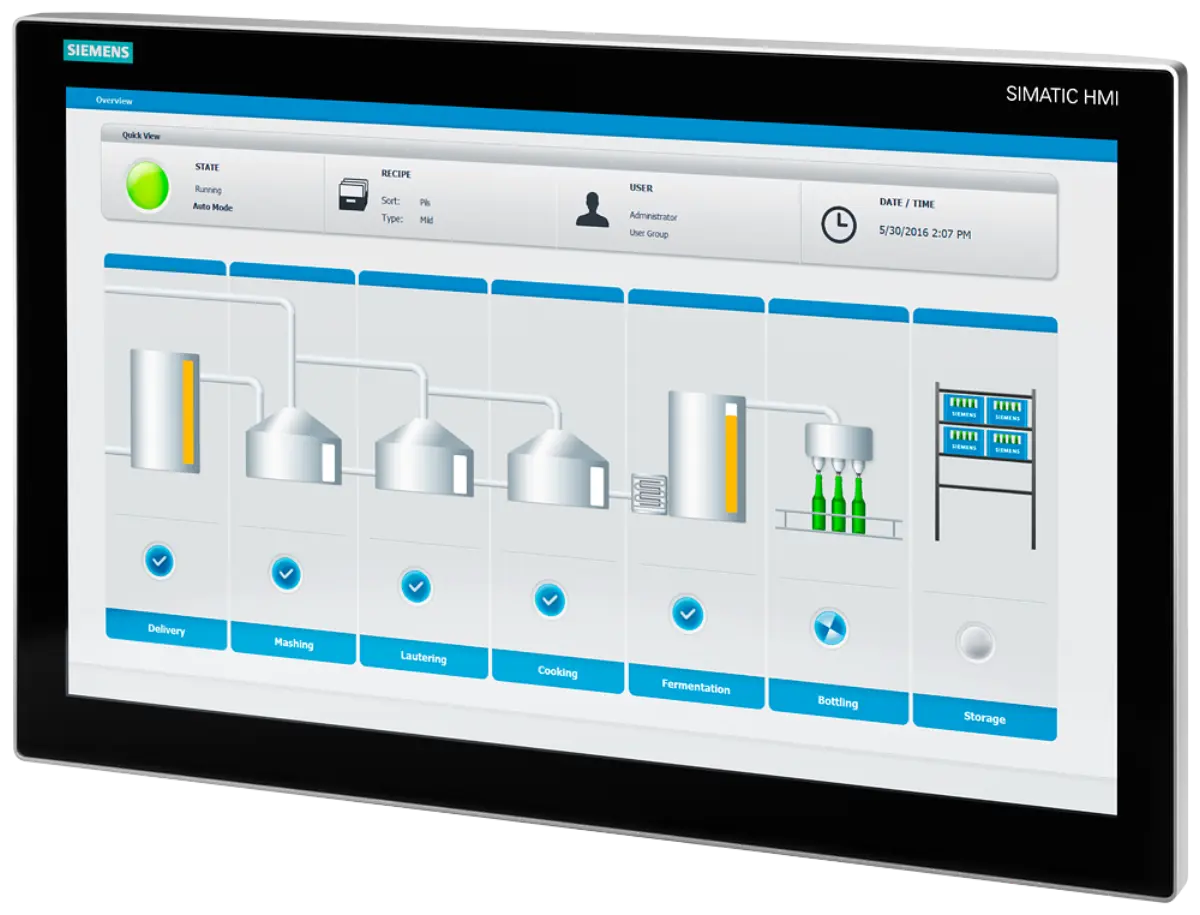

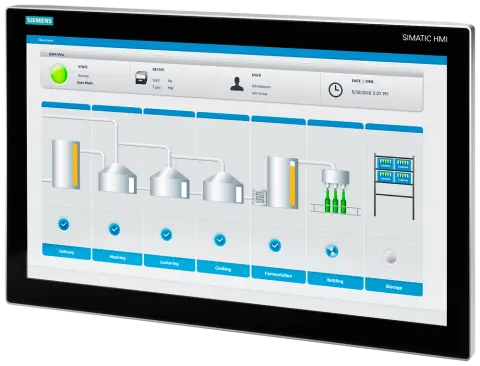

6AV7863-6MA00-2AA0 Siemens SIMATIC IFP1900 V2 Industrial PC

Part number

6AV7863-6MA00-2AA0

Brand

Siemens

Category

Industrial PCs

Product type

Industrial PCs

Lifecycle

Active Product

Dimensions

62.5 x 51.00 x 23.00 cm

Net weight

7.42 Kg

Source category

SIMATIC Industrial Flat Panel HYG

• Display technology utilizes a 19-inch screen with a 16:9 aspect ratio for optimal viewing angles and workspace efficiency.
• Resolution is specified at 1920x1080 pixels, ensuring sharp graphics and clear text rendering for detailed operational data.
• Multi-touch capability allows intuitive user interaction, supporting simultaneous inputs for enhanced control panel functionality.
• Power requirements are listed as 24 V DC, aligning with standard industrial electrical infrastructure and safety protocols.
• Interface options include DisplayPort and DVI connections, providing versatile connectivity for various signal source configurations.
• Included accessories feature a 1.8-meter DP/USB cable, facilitating direct connection between the display and control units.

• Brand designation confirms this unit originates from Siemens, a recognized leader in industrial automation and digitalization technologies.
• Product classification identifies it as part of the SIMATIC IFP1900 V2 line, indicating its generation and feature set.
• Category placement falls under Industrial PCs, distinguishing it from standard consumer electronics or simple operator panels.
• Lifecycle status is recorded as Active Product, suggesting ongoing manufacturing support and current technical documentation review details.

Parameters are factual source fields retained for model review.

• Physical dimensions are measured at 62.5 x 51.00 x 23.00 cm, defining the spatial footprint required for installation.
• Net weight is documented at 7.42 Kg, influencing mounting hardware selection and structural support considerations.
• Standard design implies adherence to baseline industrial specifications without specialized customizations or extended environmental ratings.
• Rear USB port review details offers convenient access for peripheral devices or configuration tools during setup phases.

• Visual inspection should confirm the presence of the built-in unit housing and integrated touch sensor layer.
• Cable connections must match the included 1.8-meter DP/USB specification for proper signal transmission and power.
• Mounting points should align with the stated dimensions to ensure secure attachment to control cabinet structures.
• Screen surface integrity must be verified to prevent scratches that could impair multi-touch responsiveness.

• Verify that the 24 V DC power supply matches the electrical standards of your existing industrial network infrastructure.
• Confirm physical space constraints accommodate the 62.5 x 51.00 x 23.00 cm dimensions for proper ventilation.
• Check interface application context with your control system to ensure DisplayPort and DVI signals are supported correctly.
• Review project documentation to determine if additional mounting brackets or protective covers are necessary for deployment.

• Ensure all technical parameters align with the specific requirements of your target industrial application environment.
• Cross-reference the part number 6AV7863-6MA00-2AA0 with internal asset management systems for accurate tracking.
• Consult engineering schematics to validate cable lengths and connector types against site-specific installation layouts.
• Maintain records of this inquiry for future reference regarding maintenance schedules and potential upgrade paths.
