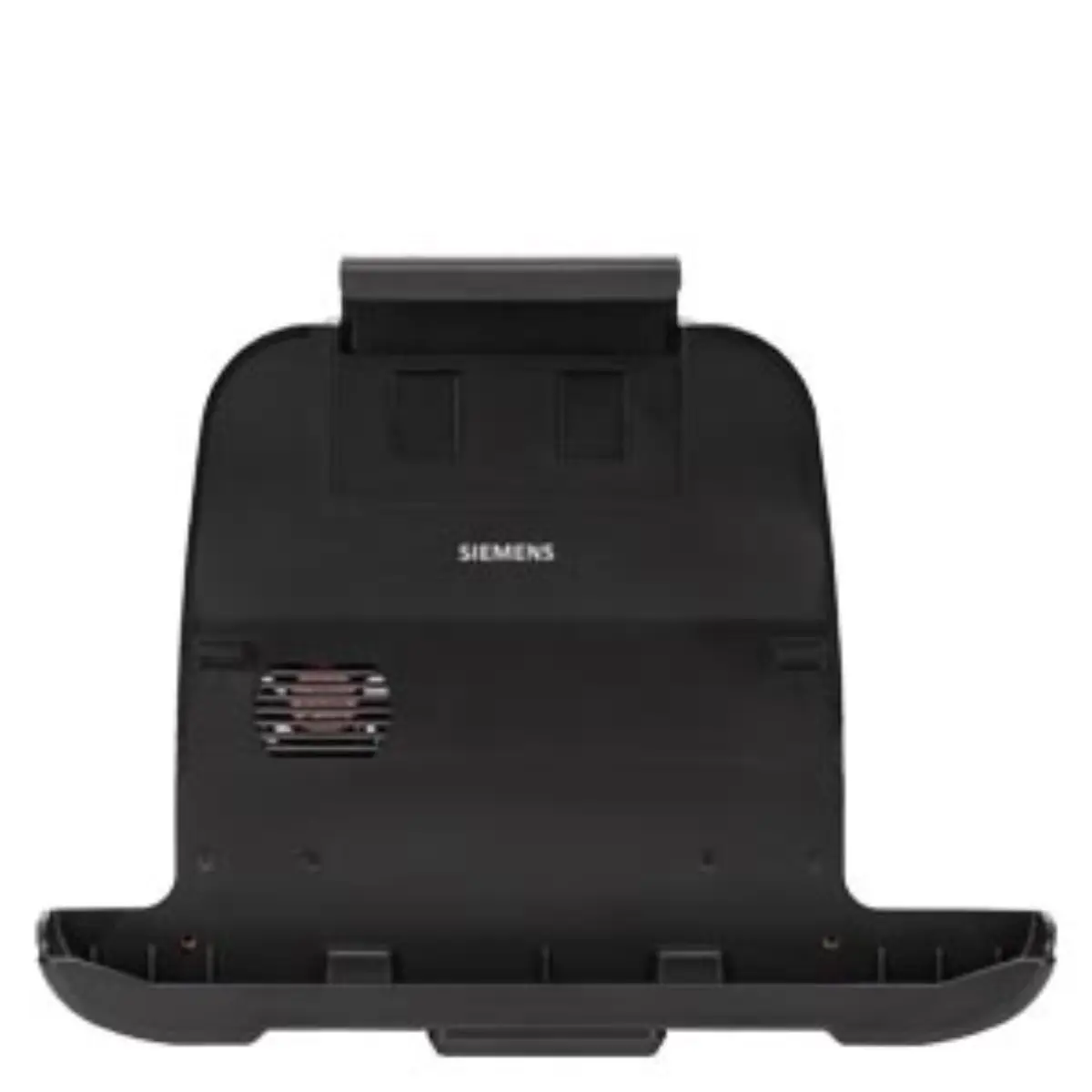

6AV7676-1AC10-0AA0 SIMATIC IPC MD-34A Vehicle Dock Accessory

Part number

6AV7676-1AC10-0AA0

Brand

Siemens

Category

Industrial PCs

Product type

SIMATIC IPC MD-34A Vehicle Dock accessories

Lifecycle

Active Product

Net weight

0.67 Kg

Source category

SIMATIC IPC MD-34A

• Network connectivity is established through a single LAN port supporting 10/100 Mbps Ethernet standards for reliable data transmission.
• The docking station features two USB 2.0 ports to connect peripheral devices or charge the integrated mobile computer unit.
• Serial communication capabilities are provided via one RS-232 interface, allowing integration with legacy industrial equipment and sensors.
• Video output is managed through a dedicated VGA connector, enabling direct display linkage for monitoring and operational control tasks.
• Power input accepts a wide voltage range of DC 9 to 36 volts, ensuring application context with various vehicle electrical systems.
• The net weight of the docking assembly is recorded at 0.67 kilograms, indicating a lightweight design for mobile installation.

• This specific part number corresponds to the Entry Plus configuration variant within the broader SIMATIC IPC MD-34A product family.
• The Outdoor configuration option is also supported by this hardware revision, listed for harsh environmental operating conditions.
• Mechanical design constraints prevent adaptation of High-End and Automation versions to this specific vehicle docking station structure.
• Review the submitted model documentation to confirm that the Entry Plus specification meets your specific project requirements.

Parameters are factual source fields retained for model review.

• The LAN port operates at standard 10/100 Mbps speeds, which is sufficient for most industrial telemetry and control data.
• Dual USB 2.0 interfaces allow simultaneous connection of storage devices, keyboards, or other standard USB peripherals.
• The RS-232 serial port remains critical for connecting to older PLCs, barcode scanners, or specialized industrial instruments.
• VGA video output ensures visual feedback on external monitors, though resolution limits apply compared to modern digital standards.
• DC input range of 9-36V accommodates standard 12V and 24V vehicle electrical architectures without additional conversion hardware.

• Visual inspection should verify the presence of the single RJ45 LAN connector on the rear panel interface.
• Check that both USB Type-A ports are clearly visible and undamaged before proceeding with the inquiry submission.
• Confirm the location of the VGA port and RS-232 serial connector for proper cable management planning.
• Ensure the DC power input socket matches the specifications of the selected power supply cord for your vehicle.

• Select the appropriate power supply cord type that matches your vehicle's electrical system voltage and connector style.
• Verify that the Entry Plus configuration aligns with your operational needs, as High-End versions are mechanically application context.
• Prepare project documents detailing the required network bandwidth and peripheral device connections for accurate specification review.
• Include any specific environmental requirements, such as temperature ranges or vibration standards, in your initial inquiry message.

• The lifecycle status is listed as Active Product, indicating ongoing support and review details for new project integrations.
• Source parameter review confirms the physical dimensions are not recorded in the standard public specification sheet.
• Project document review should address the mandatory selection of the power supply cord to complete the system setup.
• Final verification of the part number 6AV7676-1AC10-0AA0 is recommended to ensure correct request and technical alignment.
