Siemens 6AV7241-5SB04-0FA0 SIMATIC IPC 477E Product Details

Part number

6AV7241-5SB04-0FA0

Brand

Siemens

Category

Industrial PCs

Product type

SIMATIC IPC 477E

Lifecycle

Prod. Cancellation

Dimensions

69.5 x 55.00 x 27.00 cm

Net weight

8.00 Kg

Source category

SIMATIC IPC477E

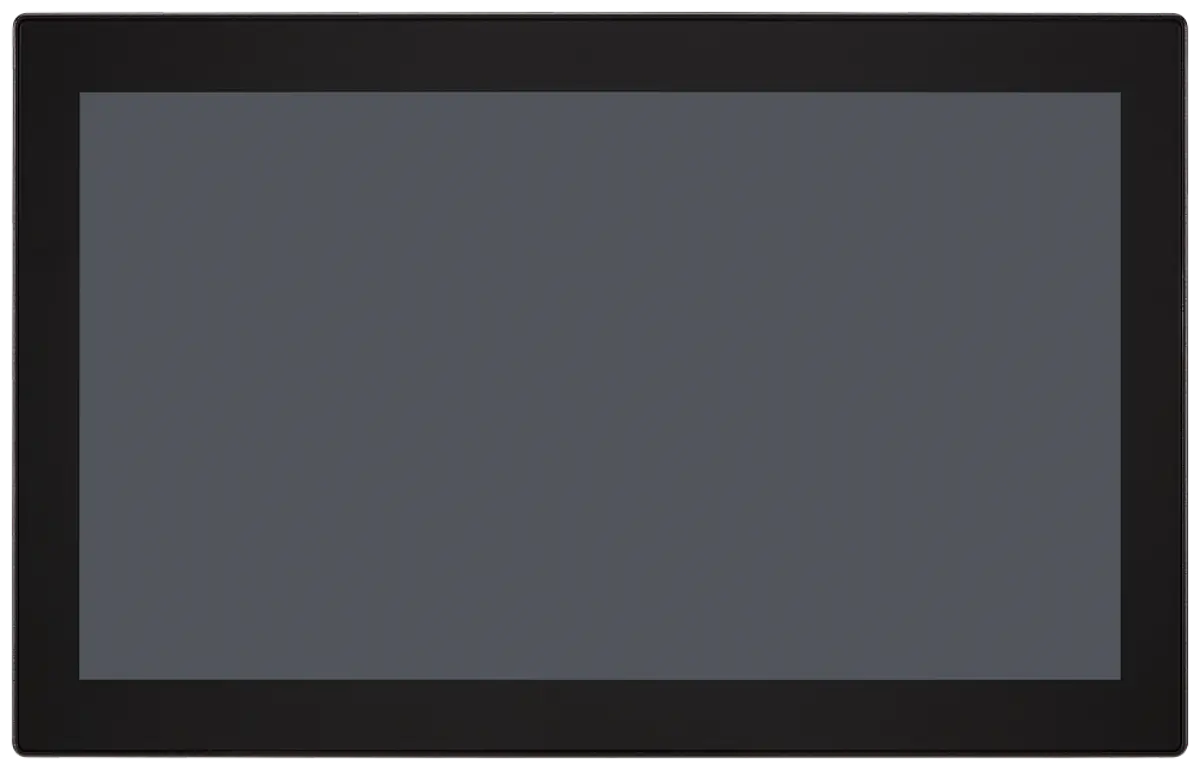

• Display size is recorded as 24 inches with 1920 x 1080 resolution. Touch capability is listed as multitouch for standard operation modes.
• Processor model is identified as Intel Core i5-6442EQ. This component drives the computational tasks for the industrial computing environment.
• Memory configuration shows 8 GB of installed RAM. Storage consists of an internal 240 GB SATA solid-state drive without replaceable mass storage.
• Network interfaces include three Gigabit Ethernet ports labeled IE/PN. Additional connectivity is provided via four USB ports located on the back panel.
• Operating system is listed as Windows 7 Ultimate SP1. The installation supports multiple languages including German, English, Spanish, French, and Italian.
• Physical dimensions are noted as 69.5 x 55.00 x 27.00 cm. Net weight is recorded at 8.00 Kg for logistics planning purposes.

• Part number 6AV7241-5SB04-0FA0 identifies the specific SIMATIC IPC 477E variant. This code distinguishes the unit within the broader industrial PC portfolio.
• The product class is designated as B, indicating review restrictions. Users are advised to contact their Siemens review contacts for further handling guidance.
• Lifecycle status is listed as Prod. Cancellation. This indicates the manufacturing phase has concluded for this specific model configuration.
• Power supply is specified as 24 V DC industrial type. The unit does not include SIMATIC software in its base configuration.

Parameters are factual source fields retained for model review.

• Single-touch operation is noted when using WES7-E only. This limitation applies specifically to the embedded Windows version configuration.
• RS232 and RS485 serial interfaces are absent from this model. Projects requiring these connections must account for alternative communication methods.
• PCIe slots are not included in the hardware expansion options. Internal expansion capabilities are limited to the provided Ethernet and USB ports.
• Mass storage is non-replaceable in the standard configuration. The 240 GB SSD is integrated internally without user-accessible spare part record mechanisms.
• Neutral front design suggests a specific aesthetic and functional layout. This feature aligns with standard industrial panel mounting requirements.

• Visual inspection should confirm the 24-inch display dimensions. The screen resolution matches the stated 1920 x 1080 pixel count.
• Check the rear panel for four USB port placements. Verify the presence of three Ethernet ports for network connectivity assessment.
• Examine the front bezel for neutral design characteristics. Ensure no additional software logos or branding interfere with the clean aesthetic.
• Confirm the overall chassis size against 69.5 x 55.00 x 27.00 cm. Weight verification at 8.00 Kg aids in mounting planning.

• Review the submitted model number 6AV7241-5SB04-0FA0 carefully. Ensure all technical parameters match your specific project documentation requirements.
• Note the Prod. Cancellation lifecycle status for planning. Consider long-term support implications when integrating this unit into new systems.
• Verify the Class B review restriction conditions. Contact your designated Siemens review contacts to understand handling procedures for this product class.
• Document the absence of RS232/RS485 and PCIe slots. Confirm that the recorded I/O options meet your operational interface needs.

• Source parameter review confirms the Intel Core i5-6442EQ specification. Memory and storage details align with the provided technical summary.
• Project document review should address the Windows 7 MUI support. Multi-language capabilities are essential for international deployment scenarios.
• Technical summary validation ensures all dimensions and weights are accurate. Physical constraints must be considered for rack or wall mounting.
• Lifecycle and class notes require careful attention during inquiry preparation. Understanding the cancellation status and review restrictions is critical for compliance.
