Siemens 6AG4012-2BA10-0AX0 SIMATIC IPC347G Rack PC Details

Part number

6AG4012-2BA10-0AX0

Brand

Siemens

Category

Industrial PCs

Product type

SIMATIC IPC347G (rack PC, 19", 4 U)

Lifecycle

Active Product

Dimensions

60.00 x 57.00 x 32.00 cm

Net weight

15.26 Kg

Source category

SIMATIC IPC347G

• Processor: Intel Core i5-6500, 4C/4T, 3.2 GHz base, 3.6 GHz turbo, 6 MB cache. Keep dimensions 60.00 x 57.00 x 32.00 cm and net weight 15.26 Kg unchanged while comparing project documents and product image evidence.
• Memory: 4 GB DDR4 installed via a single 4 GB module for standard operational capacity.
• Storage: One internal 1 TB hard disk drive providing substantial local data retention capabilities.
• Network: Dual Gigabit Ethernet ports alongside one Profibus DP interface for industrial communication.
• I/O Panel: Front panel includes two USB ports, one VGA output, two serial ports, and two PS/2 connectors.
• Rear I/O: Rear side offers four USB ports, two internal USB headers, audio jacks, and power connections.

• Brand designation: Siemens, indicating the manufacturer of this industrial computing hardware component. Use the source path Automation technology / Industrial Computing / Rack PC / SIMATIC IPC347G to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product line: SIMATIC IPC347G, identifying the specific series within the industrial PC portfolio.
• Form factor: Rack PC configuration, sized at 19 inches width and 4 units height.
• Operating System: Pre-installed with Windows 10 IoT Enterprise optimized for Pentium, i3, and i5 processors.

Parameters are factual source fields retained for model review.

• Power Supply: 100/240 V industrial power supply unit included, though line cable is not provided. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG4012-2BA10-0AX0 record before publication.
• Optical Drive: Configuration lists no DVD plus/minus RW drive installed in the chassis.
• Physical Dimensions: Recorded measurements are 60.00 cm length, 57.00 cm width, and 32.00 cm depth.
• Net Weight: The unit weighs 15.26 kilograms, requiring appropriate handling during installation procedures.
• Lifecycle Status: Listed as Active Product, confirming current production status for new project integration.

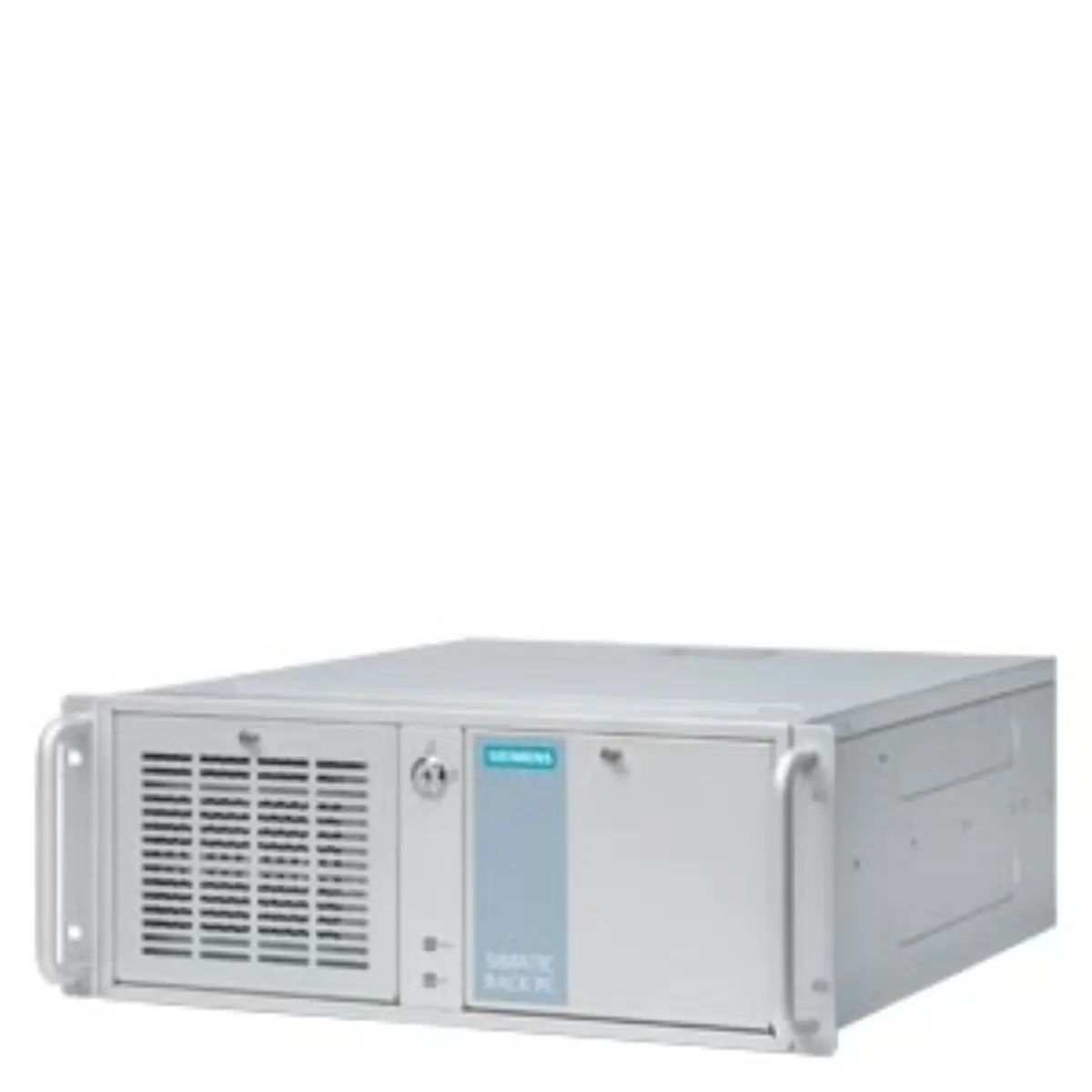

• Visual inspection should confirm the presence of front-mounted USB and VGA interfaces.
• Check rear panel connectivity for dual Gbit Ethernet and Profibus DP port alignment.
• Verify chassis labeling matches the part number 6AG4012-2BA10-0AX0 for accurate identification.
• Ensure power supply unit location aligns with standard 19-inch rack mounting specifications.

• Confirm required cabling details as the line cable is not included with the main unit.
• Verify space constraints against the 60x57x32 cm dimensions for rack enclosure planning.
• Assess weight capacity of mounting rails to support the 15.26 kg net weight safely.
• Review software licensing needs for Windows 10 IoT Enterprise based on project scope.

• Product class B indicates review restrictions; contact designated Siemens review contacts for clarification.
• Source parameter review suggests verifying all I/O configurations against specific application requirements.
• Project document review should include power consumption estimates for the industrial power supply.
• Technical summary confirms the inclusion of audio interfaces and multiple serial communication ports.
