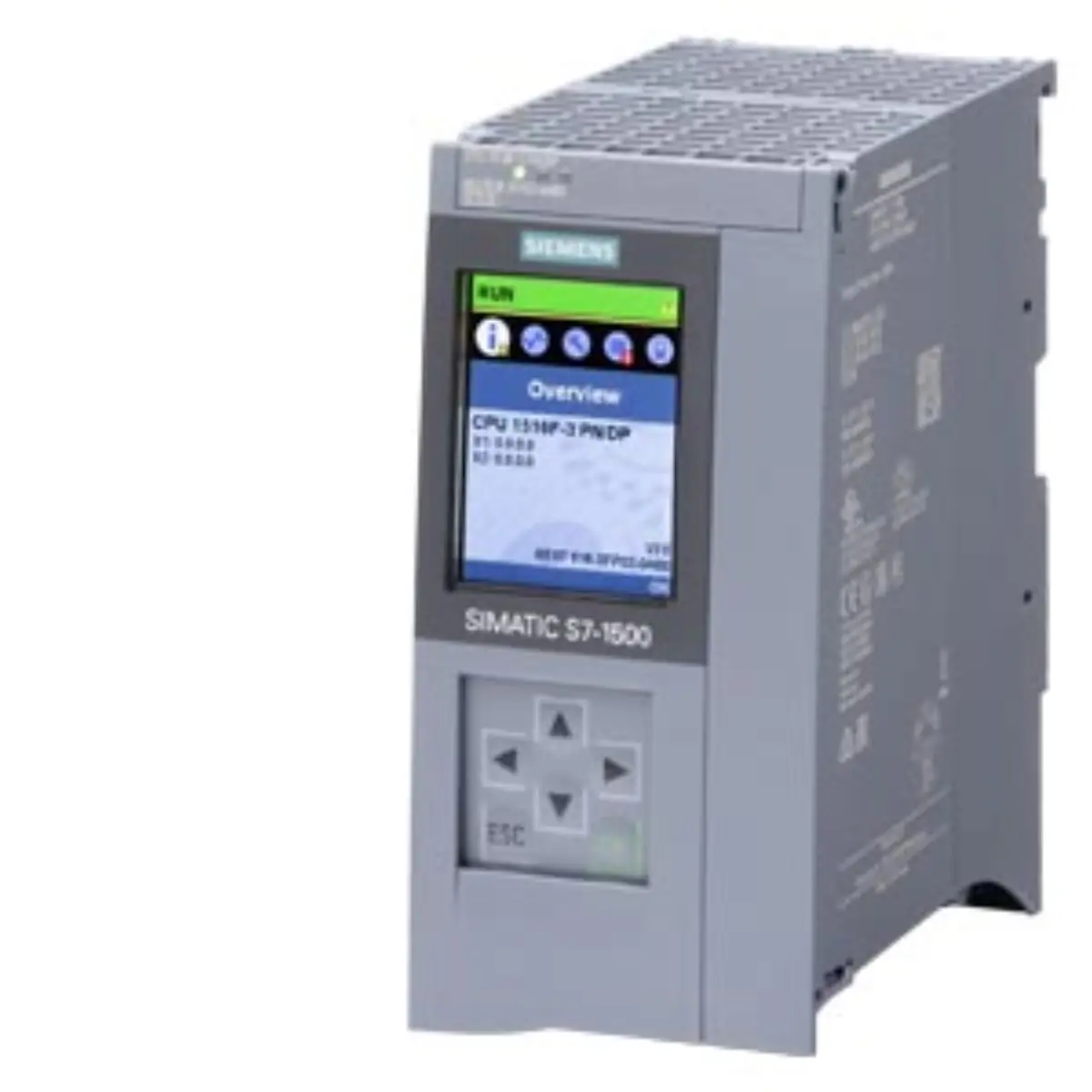

6AG2516-3FP03-4AB0 SIPLUS S7-1500 Fail-Safe CPU

Part number

6AG2516-3FP03-4AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS S7-1500 CPU 1516F-3 PN rail based on 6ES7516-3FP03-0AB0 with conformal coating OT4: -40

Lifecycle

Active Product

Dimensions

16.2 x 15.6 x 8.3 cm

Net weight

0.596 Kg

Source category

SIPLUS S7-1500 CPU 1516F-3 PN/DP RAIL

• Central processing unit with 3 MB work memory for program storage and 7.5 MB for data handling. Keep dimensions 16.2 x 15.6 x 8.3 cm and net weight 0.596 Kg unchanged while comparing project documents and product image evidence.
• First interface utilizes PROFINET IRT with a built-in two-port switch for high-speed communication.
• Second interface supports PROFINET RT protocol for real-time Ethernet applications in automated systems.
• Third interface connects via PROFIBUS for legacy device integration and distributed I/O communication.
• Bit performance is recorded at 6 nanoseconds for precise timing in critical control loops.
• A SIMATIC Memory Card is required for operation to store configuration and firmware data.

• Brand designation is listed as Siemens within the industrial automation component catalog. Use the source path SIPLUS extreme RAIL fail-safe CPUs / SIPLUS S7-1500 CPU 1516F-3 PN/DP RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification identifies this as a SIPLUS extreme RAIL fail-safe CPU variant.
• Base model reference is noted as being based on 6ES7516-3FP03-0AB0 specifications.
• Lifecycle status is currently recorded as Active Product for ongoing project planning.

Parameters are factual source fields retained for model review.

• Conformal coating OT4 provides protection against specific environmental stressors during operation. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2516-3FP03-4AB0 record before publication.
• Standard temperature range is defined as -40 degrees Celsius up to +70 degrees Celsius.
• Short-term thermal tolerance allows exposure to 85 degrees Celsius for ten-minute durations.
• Physical dimensions are recorded as 16.2 cm by 15.6 cm by 8.3 cm.
• Net weight of the unit is specified as 0.596 kilograms for logistics assessment.

• Visual inspection should confirm the presence of the OT4 conformal coating layer. Review Siemens 6AG2516-3FP03-4AB0 as plc cpu controllers with source category SIPLUS S7-1500 CPU 1516F-3 PN/DP RAIL, recorded lifecycle Active Product, and submitted model identity.
• Check that all port labels match the PROFINET and PROFIBUS interface descriptions.
• Verify the model plate displays the full part number 6AG2516-3FP03-4AB0 clearly.
• Ensure the rail mounting clips are intact and undamaged for secure installation.

• Review project documentation to confirm the need for fail-safe CPU functionality. Keep dimensions 16.2 x 15.6 x 8.3 cm and net weight 0.596 Kg unchanged while comparing project documents and product image evidence.
• Assess whether the extended temperature range meets the specific site environmental conditions.
• Determine the required memory card capacity for program and data storage needs.
• Evaluate network topology requirements for PROFINET IRT and PROFIBUS integration points.

• Confirm that the base model 6ES7516-3FP03-0AB0 aligns with existing system designs.
• Verify that the 6 ns bit performance satisfies the cycle time requirements.
• Ensure that the two-port switch capability fits the network infrastructure plan.
• Check that the SIMATIC Memory Card requirement is accounted for in setup.
