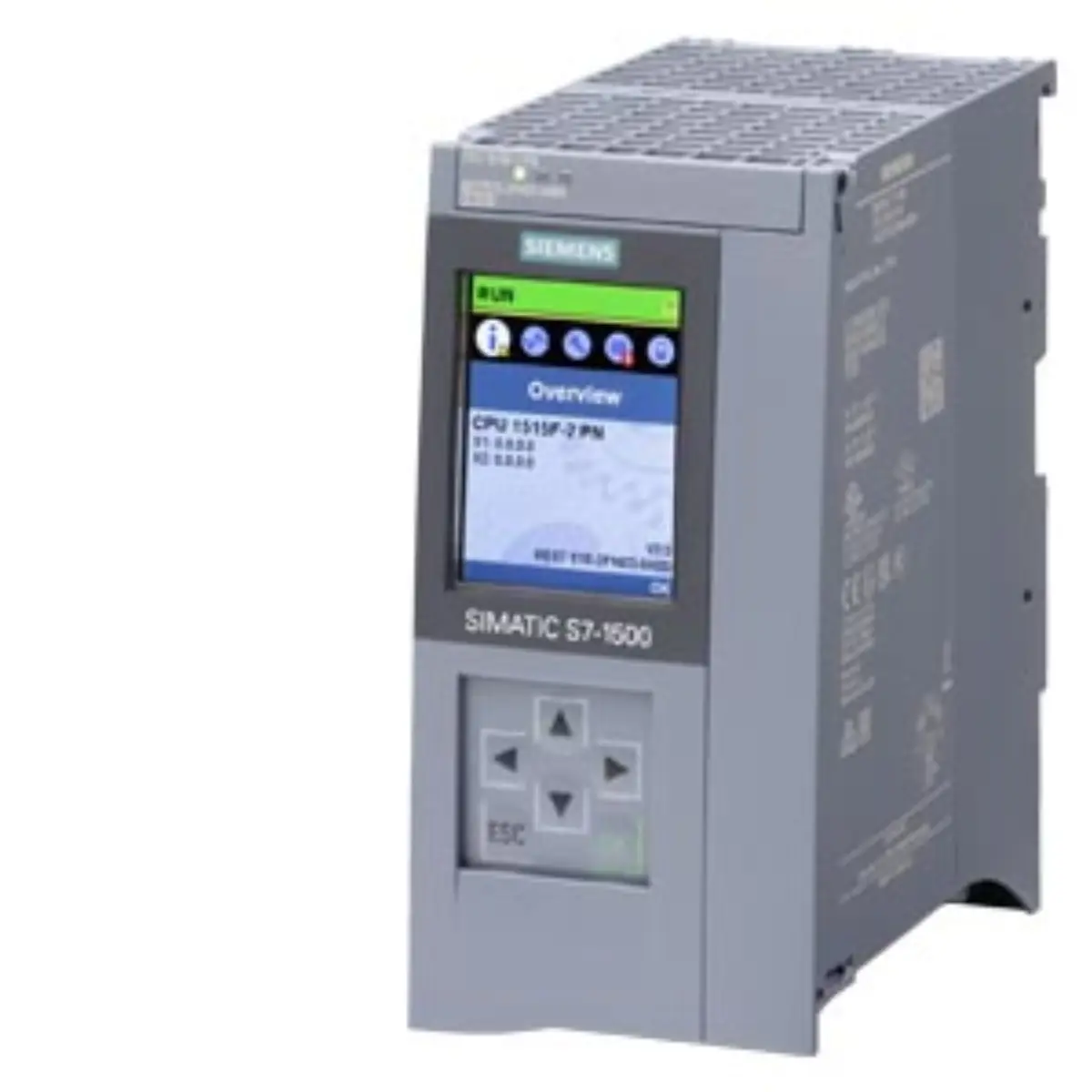

Siemens 6AG2515-2FN03-4AB0 SIPLUS S7-1500 CPU Inquiry

Part number

6AG2515-2FN03-4AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS S7-1500 CPU 1515F-2 PN rail based on 6ES7515-2FN03-0AB0 with conformal coating OT4: -40

Lifecycle

Active Product

Dimensions

16.00 x 15.6 x 8.3 cm

Net weight

0.582 Kg

Source category

SIPLUS S7-1500 CPU 1515F-2 PN RAIL

• The device operates within a temperature range of -40 to +70 °C under standard conditions. Keep dimensions 16.00 x 15.6 x 8.3 cm and net weight 0.582 Kg unchanged while comparing project documents and product image evidence.
• Short-term thermal stress tolerance reaches 85 °C for durations up to ten minutes.
• Communication relies on PROFINET IRT technology featuring a built-in two-port switch interface.
• A second interface supports PROFINET RT protocols for flexible network integration scenarios.
• Memory expansion requires the use of a dedicated SIMATIC Memory Card for operation.
• Physical dimensions are recorded as 16.00 x 15.6 x 8.3 cm for spatial planning.

• The part number 6AG2515-2FN03-4AB0 identifies the specific SIPLUS extreme variant. Use the source path SIPLUS extreme RAIL fail-safe CPUs / SIPLUS S7-1500 CPU 1515F-2 PN RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is categorized under SIPLUS S7-1500 CPU 1515F-2 PN RAIL product lines.
• The base hardware architecture originates from the 6ES7515-2FN03-0AB0 reference model.
• Fail-safe functionality distinguishes this unit within the broader SIMATIC automation portfolio.

Parameters are factual source fields retained for model review.

• Work memory allocation includes 1.5 MB specifically designated for program storage tasks. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2515-2FN03-4AB0 record before publication.
• Data memory capacity is listed at 4.5 MB for process data handling.
• Bit processing speed is specified at 6 nanoseconds for rapid execution cycles.
• Net weight is recorded at 0.582 kg for logistics and mounting calculations.
• Conformal coating type OT4 ensures protection against harsh industrial environmental factors.

• Visual inspection should confirm the rail-mounting configuration on standard DIN rails. Review Siemens 6AG2515-2FN03-4AB0 as plc cpu controllers with source category SIPLUS S7-1500 CPU 1515F-2 PN RAIL, recorded lifecycle Active Product, and submitted model identity.
• Label clarity is essential for verifying the full alphanumeric part number sequence.
• Port indicators on the PROFINET interfaces should be visible for connection verification.
• Overall housing condition reflects the robust design intended for industrial automation use.

• Review project documentation to confirm temperature requirements match the -40 to +70 °C range. Keep dimensions 16.00 x 15.6 x 8.3 cm and net weight 0.582 Kg unchanged while comparing project documents and product image evidence.
• Verify network topology needs align with the dual PROFINET interface capabilities.
• Ensure SIMATIC Memory Cards are included in the overall system component list.
• Check physical space constraints against the 16.00 x 15.6 x 8.3 cm dimensions.

• Confirm the lifecycle status is listed as Active Product for current projects.
• Cross-reference the normalized part number 6AG25152FN034AB0 for database accuracy checks.
• Evaluate the need for conformal coating based on specific site environmental hazards.
• Assess memory requirements to ensure the 1.5 MB program and 4.5 MB data limits suffice.
