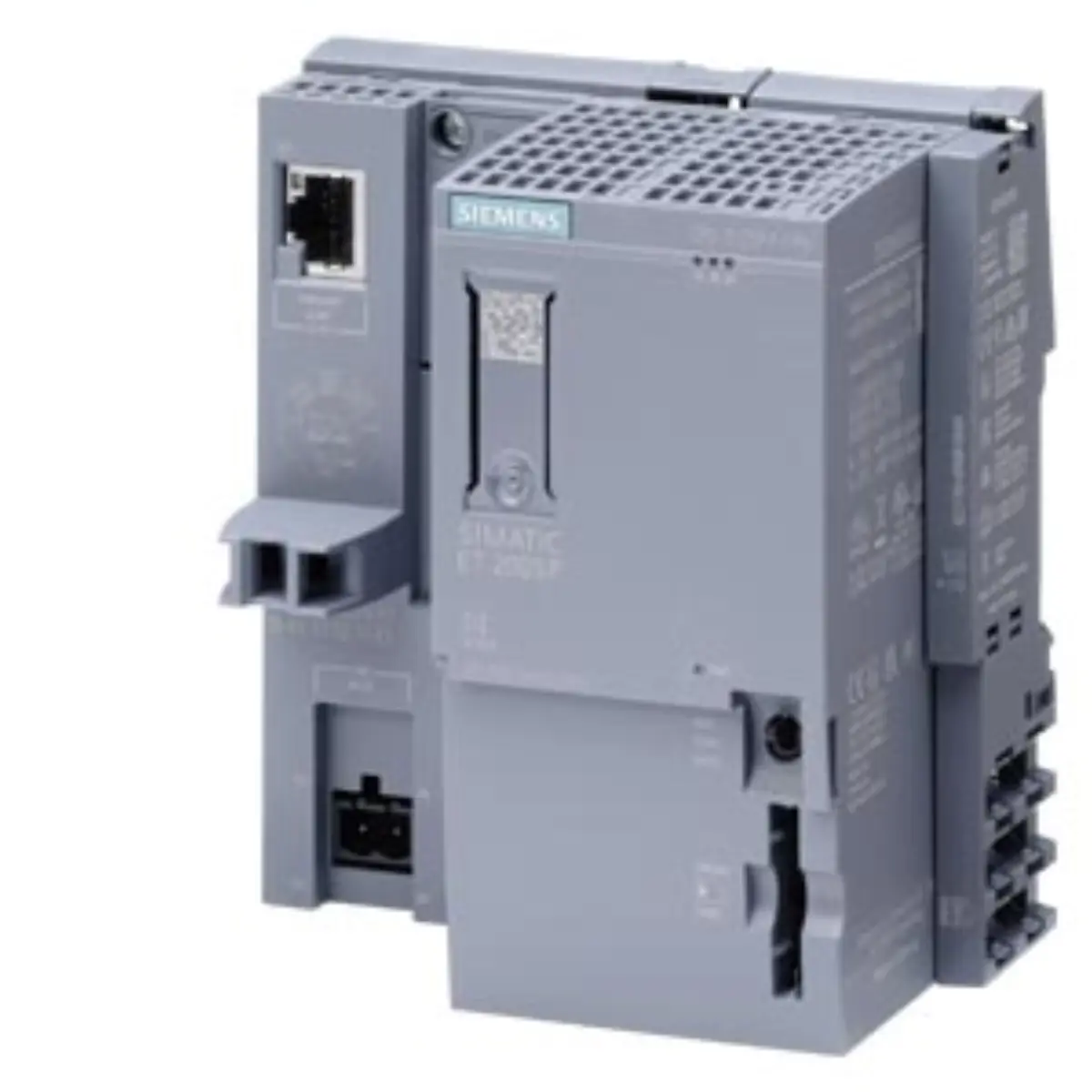

6AG2512-1SM03-1AB0 SIPLUS ET 200SP CPU 1512SP F-1

Part number

6AG2512-1SM03-1AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS ET 200SP CPU 1512SP F-1 rail based on 6ES7512-1SM03-0AB0 with conformal coating OT2: -40

Lifecycle

Active Product

Dimensions

13.4 x 13.3 x 8.8 cm

Net weight

0.387 Kg

Source category

SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL

• Central processing unit equipped with 600 KB work memory for program storage and execution logic. Keep dimensions 13.4 x 13.3 x 8.8 cm and net weight 0.387 Kg unchanged while comparing project documents and product image evidence.
• Data memory capacity is recorded at 2 MB for storing process values and configuration parameters.
• First interface utilizes PROFINET IRT technology featuring a built-in three-port switch mechanism.
• Bit performance specification is listed at 25 ns for high-speed processing requirements.
• Conformal coating OT2 ensures operation in temperatures ranging from -40 to +55 degrees Celsius.
• Short-term thermal resistance ST1/2 allows exposure up to 70 degrees Celsius for ten minutes.

• Brand designation is recorded under Siemens for this specific industrial automation component series. Use the source path SIPLUS extreme RAIL fail-safe CPUs / SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification falls within the SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL category.
• Lifecycle status is currently listed as Active Product for ongoing project documentation purposes.
• Base hardware reference is identified as being based on the 6ES7512-1SM03-0AB0 platform structure.

Parameters are factual source fields retained for model review.

• Physical dimensions are noted as 13.4 cm in length, 13.3 cm in width, and 8.8 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2512-1SM03-1AB0 record before publication.
• Net weight of the unit is specified at 0.387 kg for logistical planning considerations.
• SIMATIC Memory Card requirement is essential for program storage and must be reviewed separately.
• BusAdapter necessity for ports 1 and 2 should be verified during system integration planning.

• Visual inspection should confirm the presence of conformal coating indicators on the housing surface. Review Siemens 6AG2512-1SM03-1AB0 as plc cpu controllers with source category SIPLUS ET 200SP CPU 1512SP F-1 PN RAIL, recorded lifecycle Active Product, and submitted model identity.
• Port layout verification requires checking for the three-port PROFINET IRT switch configuration.
• Label readability is important for confirming the exact part number and revision details.
• Rail mounting mechanism appearance should match standard ET 200SP form factor specifications.

• Review project documentation to confirm temperature range requirements match the OT2 coating specification. Keep dimensions 13.4 x 13.3 x 8.8 cm and net weight 0.387 Kg unchanged while comparing project documents and product image evidence.
• Verify if SIMATIC Memory Cards are included in the scope of the current inquiry.
• Check system architecture needs regarding BusAdapter requirements for ports 1 and 2 connectivity.
• Confirm fail-safe functionality requirements align with the F-1 designation in the part number.

• Source parameter review indicates active lifecycle status for continued engineering support review details.
• Technical summary confirms memory allocations listed for moderate complexity control logic implementations.
• Environmental ratings suggest suitability for locations with significant thermal fluctuations or extremes.
• Integration notes highlight the need for additional accessories like memory cards and adapters.
