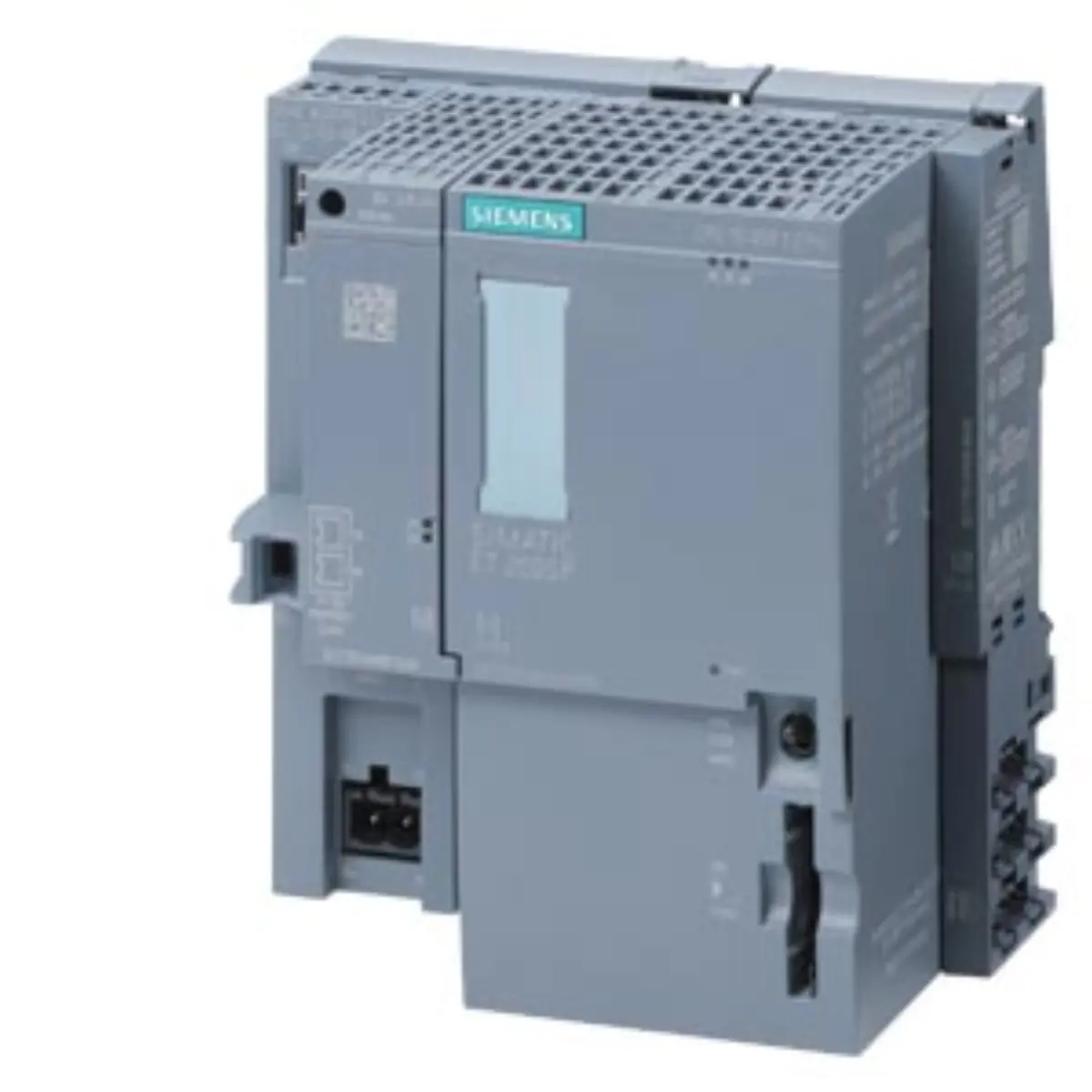

6AG2512-1DM03-4AB0 SIPLUS ET 200SP CPU 1512SP-1 PN

Part number

6AG2512-1DM03-4AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS ET 200SP CPU 1512SP-1 PN rail based on 6ES7512-1DM03-0AB0 with conformal coating OT4: -40

Lifecycle

Active Product

Dimensions

13.2 x 13.1 x 8.8 cm

Net weight

0.386 Kg

Source category

SIPLUS ET 200SP CPU 1512SP-1 PN RAIL

• Central processing unit utilizes a 25 ns bit performance rate for efficient execution of control tasks within automated systems. Keep dimensions 13.2 x 13.1 x 8.8 cm and net weight 0.386 Kg unchanged while comparing project documents and product image evidence.
• First interface provides PROFINET IRT communication capability featuring a built-in 3-port switch for network integration.
• Conformal coating OT4 ensures protection against harsh environmental factors during operation within specified temperature ranges.
• Operating temperature range extends from -40 °C to +70 °C for standard continuous industrial applications.
• Short-term thermal stress tolerance allows exposure up to 85 °C for a duration of 10 minutes.
• Requires a SIMATIC Memory Card for program storage and a BusAdapter for ports 1 and 2 functionality.

• Product classification identifies this as an SIPLUS ET 200SP CPU 1512SP-1 PN rail module. Use the source path SIPLUS extreme RAIL standard CPUs / SIPLUS ET 200SP CPU 1512SP-1 PN RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Base hardware reference links to the standard 6ES7512-1DM03-0AB0 component with added environmental protections.
• Lifecycle status is recorded as Active Product indicating current manufacturing and support review details.
• Brand attribution confirms Siemens as the manufacturer of this industrial automation control component.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.2 cm in length, 13.1 cm in width, and 8.8 cm in height.
• Net weight specification lists the unit mass at 0.386 Kg for logistical and mounting considerations.
• Memory allocation specifies 400 KB for program storage and 2 MB for data retention operations.
• Interface configuration mandates the use of a BusAdapter for proper connection on ports 1 and 2.
• Environmental rating includes OT4 coating listed for temperatures ranging from -40 to +70 degrees Celsius.

• Visual inspection should confirm the presence of conformal coating consistent with OT4 environmental protection standards.
• Label verification must match the part number 6AG2512-1DM03-4AB0 printed clearly on the device housing.
• Port assessment requires checking for the three PROFINET IRT ports integrated into the front panel.
• Mounting structure review ensures the rail-based design fits standard DIN rail installation procedures.

• Verify project documentation to confirm the need for OT4 conformal coating in the operating environment.
• Check technical drawings to ensure physical dimensions of 13.2 x 13.1 x 8.8 cm fit the enclosure.
• Confirm power supply requirements align with the central processing unit specifications for stable operation.
• Review network topology to determine if the 3-port PROFINET switch meets communication needs.

• Source parameter review indicates active lifecycle status for continued engineering support and updates.
• Technical summary highlights the importance of the SIMATIC Memory Card for program execution.
• Model identification confirms the base architecture derived from the 6ES7512-1DM03-0AB0 reference design.
• Inquiry preparation steps emphasize verifying environmental and network requirements before submission.
