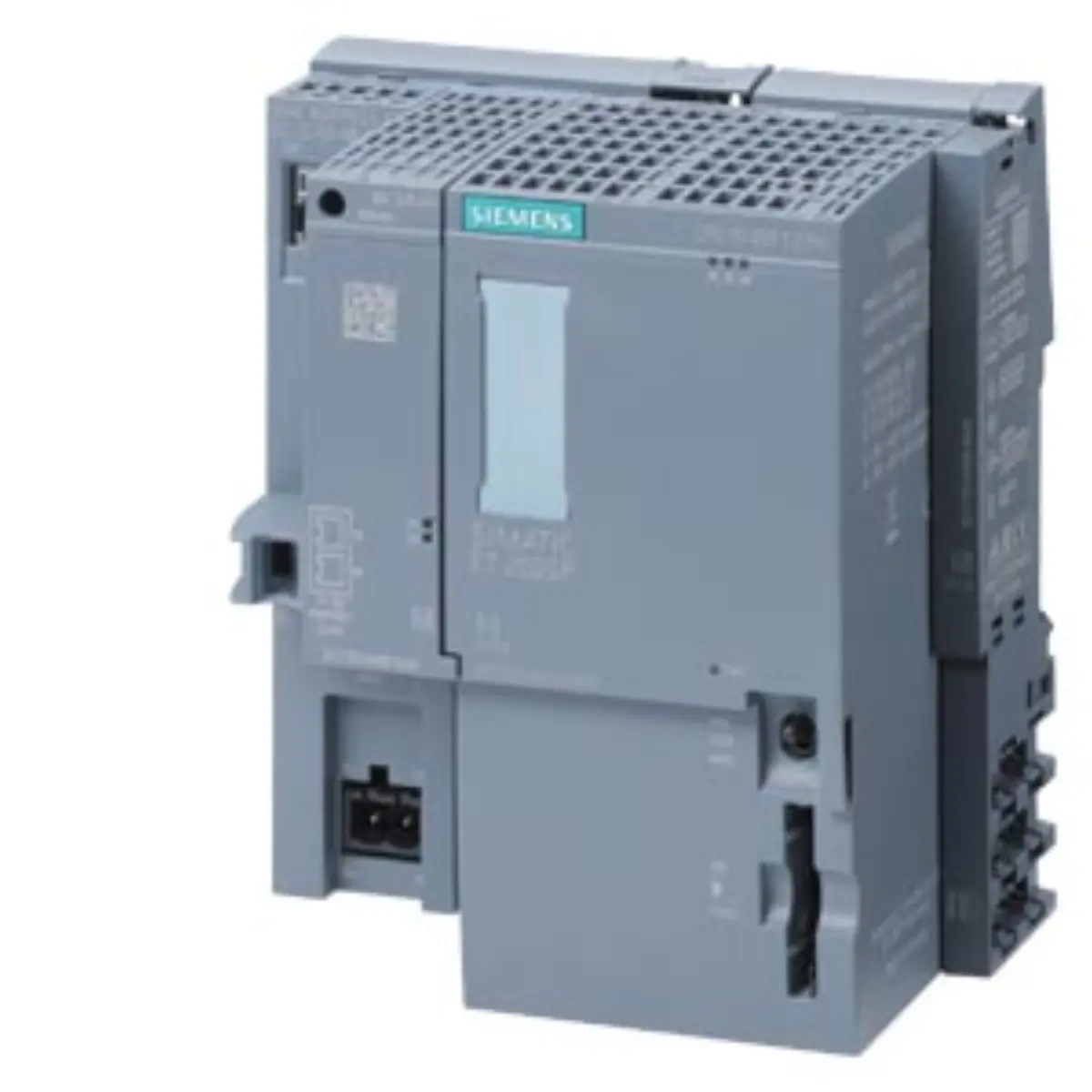

Siemens 6AG2512-1DM03-1AB0 SIPLUS ET 200SP CPU 1512SP-1 PN

Part number

6AG2512-1DM03-1AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS ET 200SP CPU 1512SP-1 PN rail based on 6ES7512-1DM03-0AB0 with conformal coating OT2: -40

Lifecycle

Active Product

Dimensions

13.2 x 13.1 x 8.8 cm

Net weight

0.386 Kg

Source category

SIPLUS ET 200SP CPU 1512SP-1 PN RAIL

• Central processing unit equipped with 400 KB work memory for program storage and execution tasks. Keep dimensions 13.2 x 13.1 x 8.8 cm and net weight 0.386 Kg unchanged while comparing project documents and product image evidence.
• Data memory capacity is recorded at 2 MB to support extensive data handling requirements.
• First interface utilizes PROFINET IRT technology featuring a built-in three-port switch configuration.
• Bit performance speed is specified at 25 ns for precise and rapid control operations.
• Operating temperature range extends from -40 °C to +55 °C under standard conditions.
• Short-term thermal stress tolerance allows exposure to 70 °C for up to ten minutes.

• Part number 6AG2512-1DM03-1AB0 identifies the specific SIPLUS variant with extended durability features. Use the source path SIPLUS extreme RAIL standard CPUs / SIPLUS ET 200SP CPU 1512SP-1 PN RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The base hardware corresponds to the 6ES7512-1DM03-0AB0 CPU architecture for functional reference.
• Conformal coating designation OT2 indicates specialized protection against moisture and corrosive agents.
• Product classification remains within the active lifecycle status for ongoing project integration planning.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 13.2 cm in width, 13.1 cm in height, and 8.8 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2512-1DM03-1AB0 record before publication.
• Net weight is documented at 0.386 kg, facilitating straightforward logistics and mounting calculations.
• Memory allocation specifies distinct areas for program logic versus dynamic data storage management.
• Network interface configuration requires attention to port usage and switch topology integration details.

• Visual inspection should confirm the presence of the conformal coating on internal circuitry. Review Siemens 6AG2512-1DM03-1AB0 as plc cpu controllers with source category SIPLUS ET 200SP CPU 1512SP-1 PN RAIL, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number for accurate inventory and request verification.
• Connector ports should be examined for physical integrity before initiating any connection procedures.
• Rail mounting clips need assessment to ensure secure attachment to standard DIN rails.

• Verify that SIMATIC Memory Cards are included in the project scope for program loading.
• Confirm requirements for BusAdapters to enable proper connectivity on Port 1 and Port 2.
• Review environmental data sheets to ensure the -40 to +55 °C range meets site specs.
• Document any specific PROFINET IRT timing constraints relevant to the overall network architecture.

• Cross-reference the normalized part number 6AG25121DM031AB0 during database searches for consistency.
• Ensure all technical parameters align with the current project documentation and design standards.
• Check for any updates to the source category path for accurate navigation and filing.
• Validate that the inquiry form captures all necessary technical details for inquiry team assessment.
