6AG2512-1DK01-1AB0 SIPLUS ET 200SP CPU Inquiry

Part number

6AG2512-1DK01-1AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Phase Out Announce

Dimensions

12.2 x 10.00 x 6.3 cm

Net weight

0.396 Kg

Source category

SIPLUS ET 200SP CPU 1512SP-1 PN RAIL

• Central processing unit with 48 ns bit performance capability for efficient execution of control tasks in automated systems.
• First interface utilizes PROFINET IRT technology featuring a built-in three-port switch for robust network connectivity.
• Work memory allocation includes 200 KB dedicated to program storage and 1 MB reserved for data management operations.
• Conformal coating provides additional protection against harsh environmental conditions, ensuring reliability in extreme operational scenarios.
• Operating temperature range spans from -40°C to +60°C, supporting continuous operation in challenging industrial settings effectively.
• Overload temperature tolerance allows operation up to 70°C for ten minutes, providing resilience during temporary thermal stress events.

• Part number 6AG2512-1DK01-1AB0 identifies the specific SIPLUS variant of the ET 200SP CPU 1512SP-1 PN.
• The normalized part number 6AG25121DK011AB0 removes hyphens for standardized database indexing and reference purposes.
• Lifecycle status is recorded as Phase Out Announce, indicating current production stage information for planning purposes.
• Product class B indicates review restrictions, requiring direct contact with designated Siemens review contacts for further handling.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 12.2 cm in width, 10.00 cm in depth, and 6.3 cm in height.
• Net weight is listed at 0.396 Kg, contributing to overall system mass calculations for mounting and support structures.
• Source category path includes SIPLUS extreme RAIL standard CPUs and specifically the SIPLUS ET 200SP CPU 1512SP-1 PN RAIL.
• SIMATIC Memory Card is required for operation, and a BusAdapter is necessary for ports one and two.
• PROFINET IRT interface supports high-performance real-time communication, essential for synchronized motion control and automation applications.

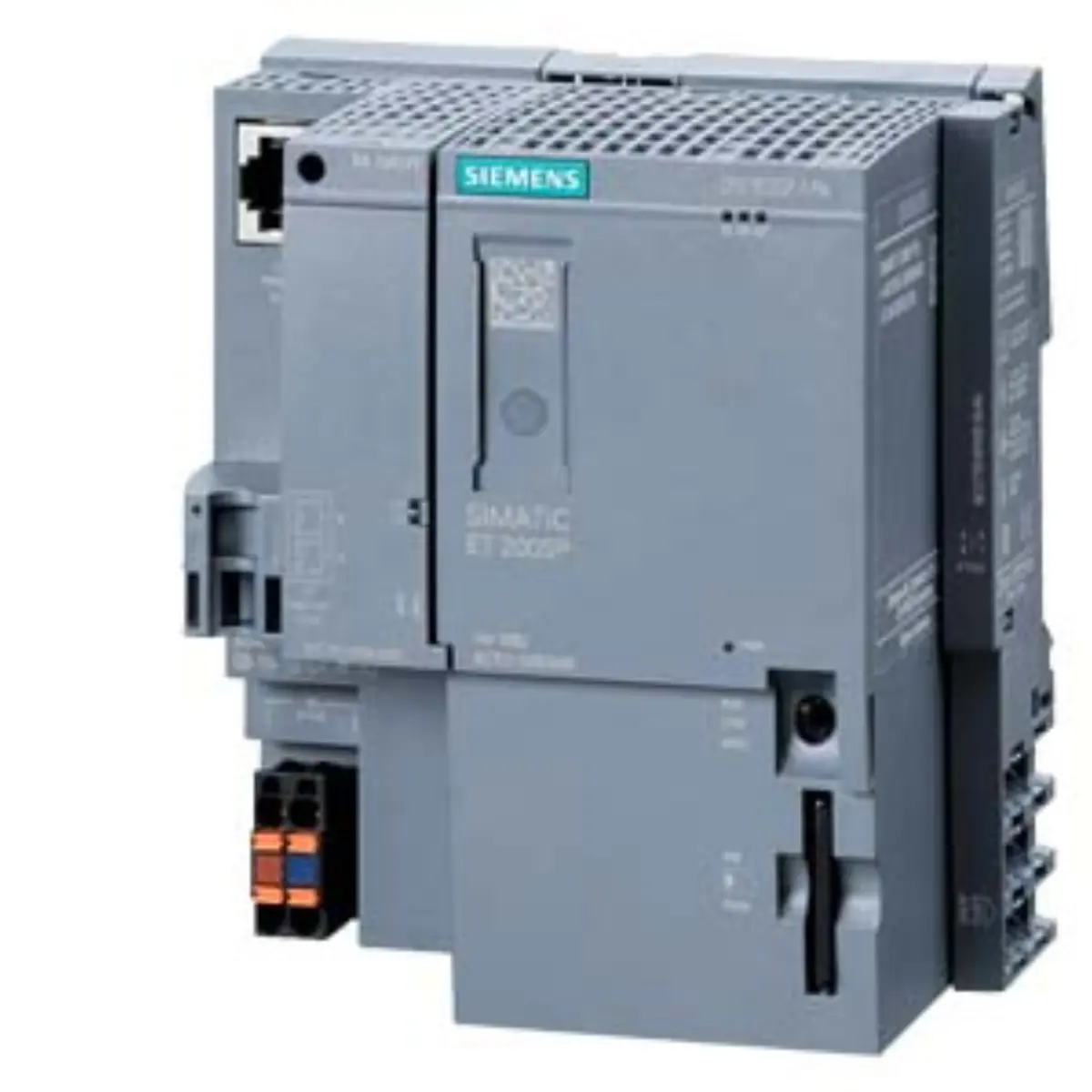

• Visual documentation should display the rail-mounted form factor characteristic of the ET 200SP series controllers.
• Labeling must clearly show the full part number 6AG2512-1DK01-1AB0 for accurate identification during physical inspection.
• Connector interfaces, including PROFINET ports, should be visible to confirm the three-port switch configuration details.
• Conformal coating appearance may be noted in close-up views to verify environmental protection features applied to the unit.

• Verify project requirements against the -40°C to +60°C operating temperature range to ensure environmental suitability.
• Confirm necessity of SIMATIC Memory Card and BusAdapter components for ports one and two in system design.
• Review lifecycle status as Phase Out Announce to assess long-term supply chain implications for the project.
• Note product class B restrictions regarding review, ensuring alignment with internal inquiry preparation and handling procedures.

• Cross-reference the part number 6AG2512-1DK01-1AB0 with documented Siemens documentation for complete technical specifications.
• Check the normalized part number 6AG25121DK011AB0 for consistency in internal databases and inventory systems.
• Evaluate the Phase Out Announce status against project timelines to determine appropriate sourcing strategies.
• Ensure understanding of Product Class B restrictions before initiating any review or exchange discussions.
