Siemens 6AG2234-4HE32-1XB1 SIPLUS Extreme Analog Module

Part number

6AG2234-4HE32-1XB1

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.00 x 8.8 x 5.6 cm

Net weight

0.198 Kg

Source category

SIPLUS extreme S7-1200 SM 1234 RAIL

• This module operates within a temperature range of -25 to +60 degrees Celsius, supporting OT1 conditions with ST1/2 tolerance up to 70 degrees for ten minutes.
• It provides four analog input channels capable of handling signals in either +/-10 V or 0 (4)-20 mA formats with specified resolution capabilities.
• The analog output section includes two channels, allowing precise control signals to be transmitted to connected actuators or field devices in automated processes.
• Resolution is maintained at 14-bit for voltage inputs and 13-bit for current inputs, ensuring accurate data acquisition and signal processing for critical applications.
• Physical dimensions are recorded as 11.00 x 8.8 x 5.6 cm, with a net weight of 0.198 Kg, facilitating easy integration into existing rack configurations.
• The design is based on the 6ES7234-4HE32-0XB0 foundation, incorporating specific enhancements for extreme environments while maintaining application context with S7-1200 system architectures.

• The part number 6AG2234-4HE32-1XB1 uniquely identifies this specific variant within the Siemens product portfolio, distinguishing it from standard S7-1200 modules.
• Source documentation links this model to the SIPLUS extreme S7-1200 SM 1234 RAIL series, indicating its specialized manufacturing lineage and purpose.
• Review the submitted model against project requirements to ensure the extended temperature ratings align with the intended operational environment specifications.
• The prefix 6AG indicates the Siemens automation group classification, while the subsequent digits define the specific hardware configuration and feature set.

Parameters are factual source fields retained for model review.

• Verify that the input signal types match the 14-bit resolution requirement for voltage measurements or the 13-bit resolution for current loop applications.
• Confirm that the ambient temperature conditions fall within the -25 to +60 degrees Celsius range to utilize the full operational capability of the unit.
• Check the physical space constraints against the recorded dimensions of 11.00 x 8.8 x 5.6 cm to ensure proper fit within the control cabinet.
• Assess the weight of 0.198 Kg for mounting considerations, ensuring that the rail structure can support the load without additional reinforcement.
• Evaluate the need for conformal coating benefits in your specific application, particularly if exposure to moisture, dust, or corrosive agents is anticipated.

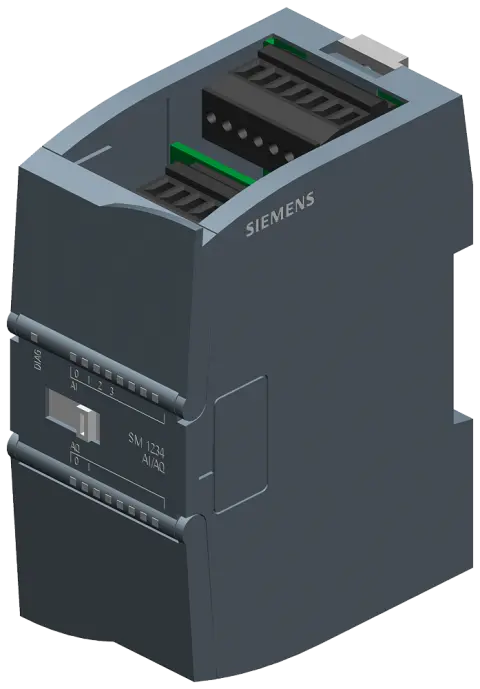

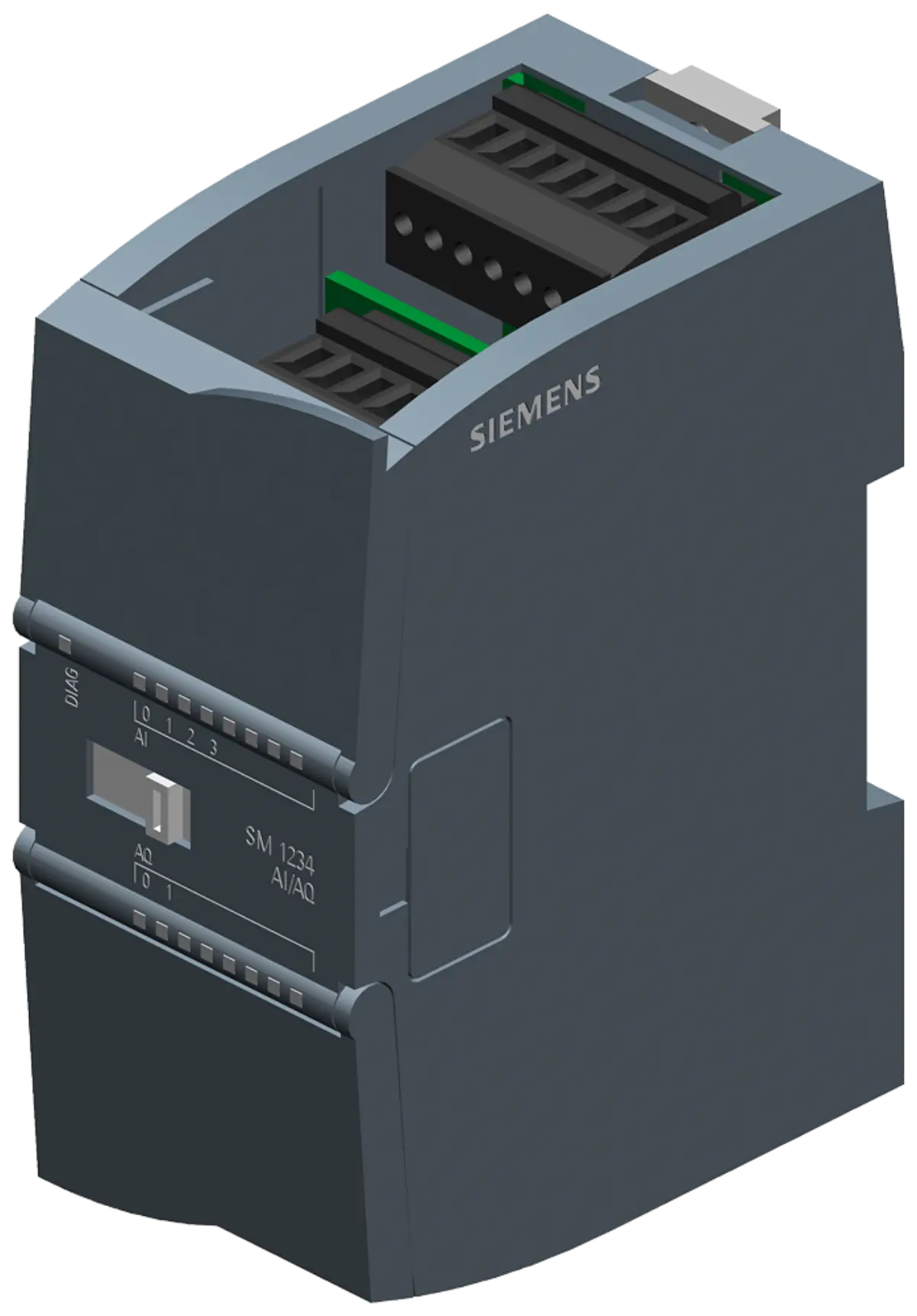

• Images typically display the front panel showing the connection terminals for the four analog inputs and two analog outputs clearly labeled.
• Side views may highlight the rail mounting mechanism and the compact form factor that allows dense installation in standard automation racks.
• Labeling on the device body usually includes the full part number 6AG2234-4HE32-1XB1 for easy identification during maintenance or inventory checks.
• Documentation images often illustrate the dimensional drawings, providing visual reference for the 11.00 x 8.8 x 5.6 cm footprint and mounting holes.

• Prepare your project specifications detailing the required analog input types, whether voltage or current, to match the module's resolution capabilities accurately.
• Document the environmental conditions of the installation site, specifically maximum and minimum temperatures, to confirm suitability for the SIPLUS extreme rating.
• List the total number of analog channels needed, ensuring that the four inputs and two outputs meet the system's signal processing demands.
• Gather any relevant electrical schematics or wiring diagrams to verify terminal connections and ensure seamless integration with existing S7-1200 controllers.

• Ensure that the inquiry includes all necessary technical parameters to facilitate an accurate assessment of the module's applicability to your project.
• Cross-reference the active product lifecycle status with long-term supply chain planning to maintain consistency in future system expansions.
• Consider the specific SIPLUS extreme features when evaluating alternatives, as the conformal coating and temperature range offer distinct advantages in harsh settings.
• Maintain detailed records of the part number 6AG2234-4HE32-1XB1 for future reference, inquiry preparation tracking, and technical support requests.
