Inquiry for Siemens 6AG2223-1PL32-1XB0 Digital Input Output Module

Part number

6AG2223-1PL32-1XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.00 x 8.6 x 8.6 cm

Net weight

0.328 Kg

Source category

SIPLUS S7-1200 SM 1223 RAIL

• The module features sixteen digital inputs operating at 24 V DC voltage levels. Keep dimensions 11.00 x 8.6 x 8.6 cm and net weight 0.328 Kg unchanged while comparing project documents and product image evidence.
• Sink and source current configurations are supported for flexible wiring arrangements.
• Sixteen digital outputs utilize relay technology with a maximum load current of two amperes.
• Operating temperature range spans from negative twenty-five degrees Celsius to positive sixty degrees Celsius.
• Overtemperature class OT1 allows temporary operation up to seventy degrees Celsius for ten minutes.
• Physical dimensions measure eleven centimeters by eight point six centimeters by eight point six centimeters.

• Part number 6AG2223-1PL32-1XB0 identifies the specific SIPLUS variant of the SM 1223 module. Use the source path SIPLUS extreme RAIL digital modules / SIPLUS S7-1200 SM 1223 RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The base model reference is 6ES7223-1PL32-0XB0 with added environmental protection characteristics.
• SIPLUS designation indicates extended temperature ratings and protective coating for extreme conditions.
• Rail mounting design allows integration into standard DIN rail distribution systems.

Parameters are factual source fields retained for model review.

• Input circuitry supports both sink and source logic for diverse sensor connections. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2223-1PL32-1XB0 record before publication.
• Relay outputs provide electrical isolation between control signals and connected load devices.
• Conformal coating protects internal components against moisture, dust, and corrosive agents.
• Net weight of three hundred twenty-eight grams facilitates easy handling during installation.
• Temperature tolerance ensures stable performance in environments exceeding standard industrial limits.

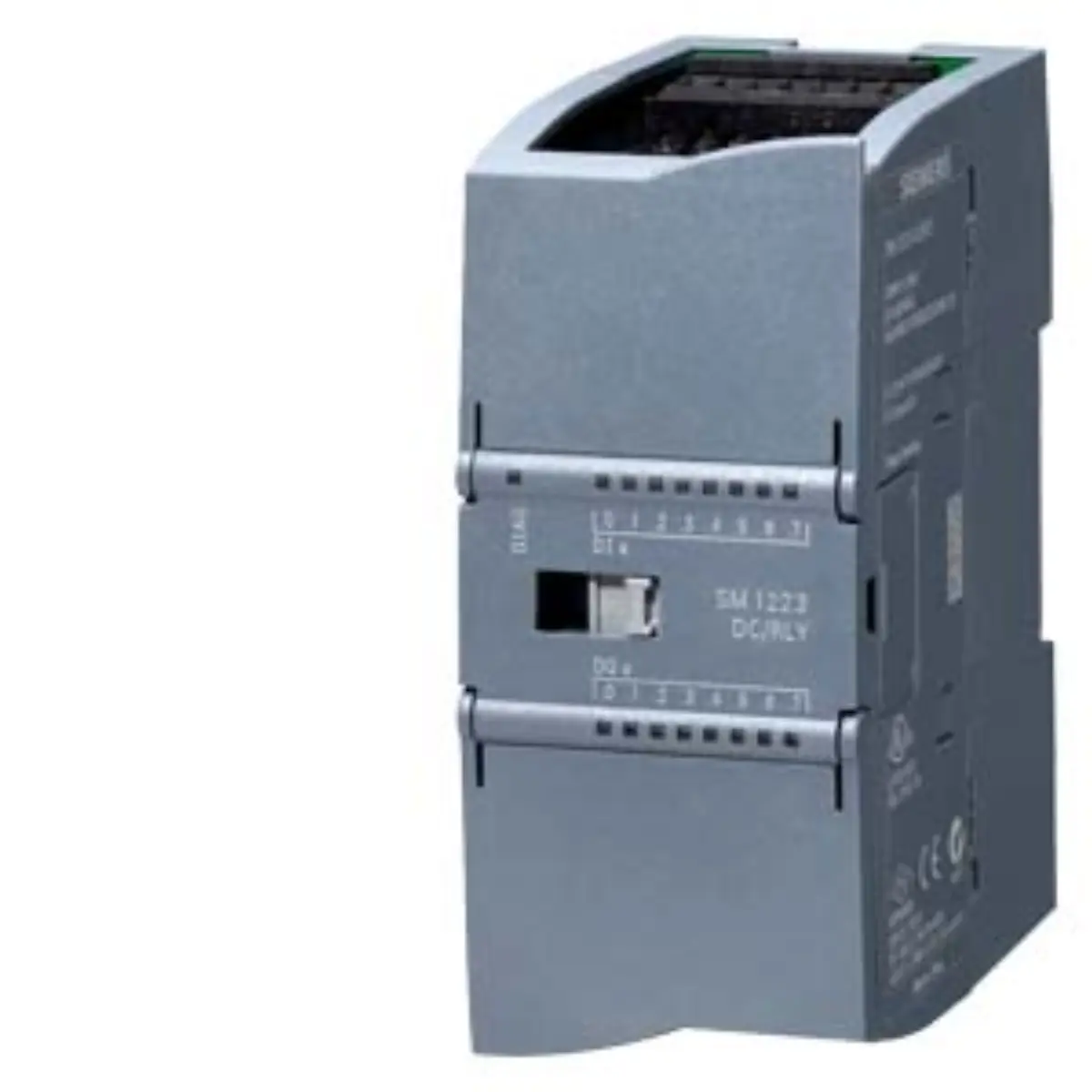

• Product images typically display the front label with full part number identification. Review Siemens 6AG2223-1PL32-1XB0 as PLC CPUs & Controllers with source category SIPLUS S7-1200 SM 1223 RAIL, recorded lifecycle Active Product, and submitted model identity.
• Side views may show the rail mounting clips and connection terminal blocks.
• Internal structure photos often highlight the relay components and circuit board layout.
• Dimensional diagrams assist in verifying space requirements for control cabinet planning.

• Review project documentation to confirm voltage levels and signal types required. Keep dimensions 11.00 x 8.6 x 8.6 cm and net weight 0.328 Kg unchanged while comparing project documents and product image evidence.
• Verify environmental conditions such as temperature extremes and exposure to contaminants.
• Check physical space constraints within the control panel for rail mounting.
• Prepare technical questions regarding integration with existing S7-1200 controller architectures.

• Confirm all technical specifications match the specific application requirements before submission.
• Ensure that the relay output capacity meets the load current demands.
• Validate that the extended temperature range covers the operational environment needs.
• Double-check the part number accuracy to avoid request incorrect module variants.
