6AG2222-1HF32-1XB0 SIPLUS S7-1200 Digital Output Module

Part number

6AG2222-1HF32-1XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.2 x 8.8 x 5.6 cm

Net weight

0.186 Kg

Source category

SIPLUS S7-1200 SM 1222 RAIL

• Eight digital outputs are provided via relay switching mechanisms for reliable load control. Keep dimensions 11.2 x 8.8 x 5.6 cm and net weight 0.186 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating protects internal components against moisture, dust, and corrosive agents.
• Operating temperature range extends from -25 °C up to +60 °C for diverse environments.
• Overtemperature class OT1 allows temporary operation at +70 °C for ten-minute durations.
• Physical dimensions measure 11.2 cm in width, 8.8 cm in height, and 5.6 cm in depth.
• Net weight is recorded at 0.186 kg, facilitating easy handling and rail installation.

• Base model reference is 6ES7222-1HF32-0XB0, modified for extreme industrial conditions. Use the source path SIPLUS extreme RAIL digital modules / SIPLUS S7-1200 SM 1222 RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates enhanced protection levels beyond standard industrial automation requirements.
• SM 1222 identifier confirms the specific digital module type within the S7-1200 family.
• Rail-based construction ensures secure mounting on standard DIN rails in control cabinets.

Parameters are factual source fields retained for model review.

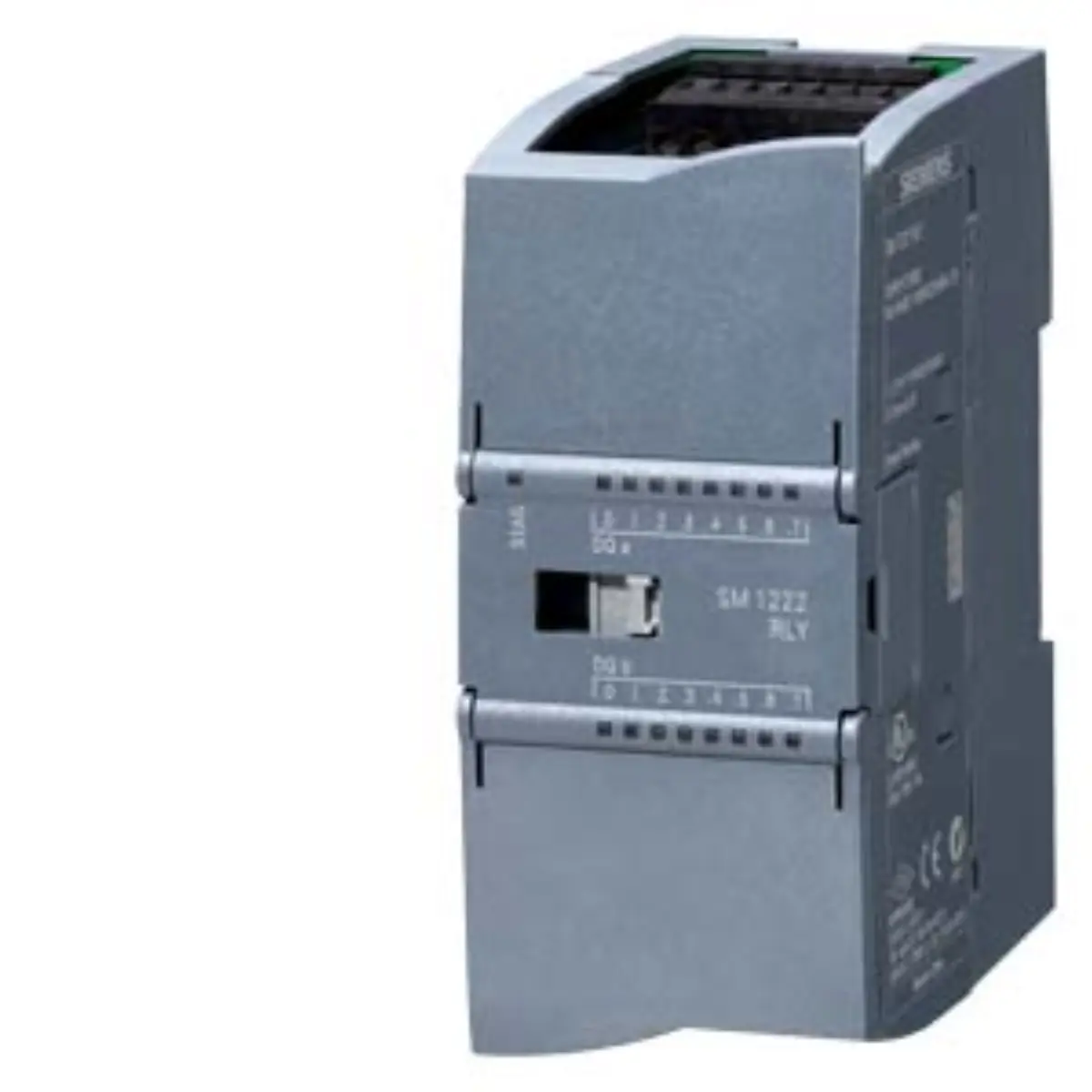

• Relay output type offers electrical isolation between control circuit and load circuit connections. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2222-1HF32-1XB0 record before publication.
• Current rating of 2 A per channel supports moderate power switching applications directly.
• Extended thermal tolerance allows deployment in unconditioned or semi-conditioned industrial spaces.
• Compact form factor minimizes panel space usage while maintaining high output density.
• Specific part number suffixes denote the unique configuration and environmental hardening features.

• Visual inspection should confirm the presence of conformal coating on visible circuitry. Review Siemens 6AG2222-1HF32-1XB0 as PLC CPUs & Controllers with source category SIPLUS S7-1200 SM 1222 RAIL, recorded lifecycle Active Product, and submitted model identity.
• Check labeling for clarity of the full part number and Siemens branding elements.
• Verify terminal block orientation and numbering for correct wiring diagram alignment.
• Ensure rail mounting clips are intact and functional for secure cabinet installation.

• Confirm the required number of digital output channels needed for the specific project.
• Verify ambient temperature conditions to ensure compliance with the -25 to +60 °C range.
• Assess load current requirements to ensure they remain within the 2 A relay limit.
• Prepare project documentation specifying any additional environmental protection needs beyond standard ratings.

• Cross-reference the base model 6ES7222-1HF32-0XB0 for standard feature comparisons and limitations.
• Review project specifications to validate the suitability of relay outputs for the loads.
• Document any specific environmental factors that necessitate the extended temperature and coating features.
• Ensure all technical parameters align with the overall system design and integration plans.
