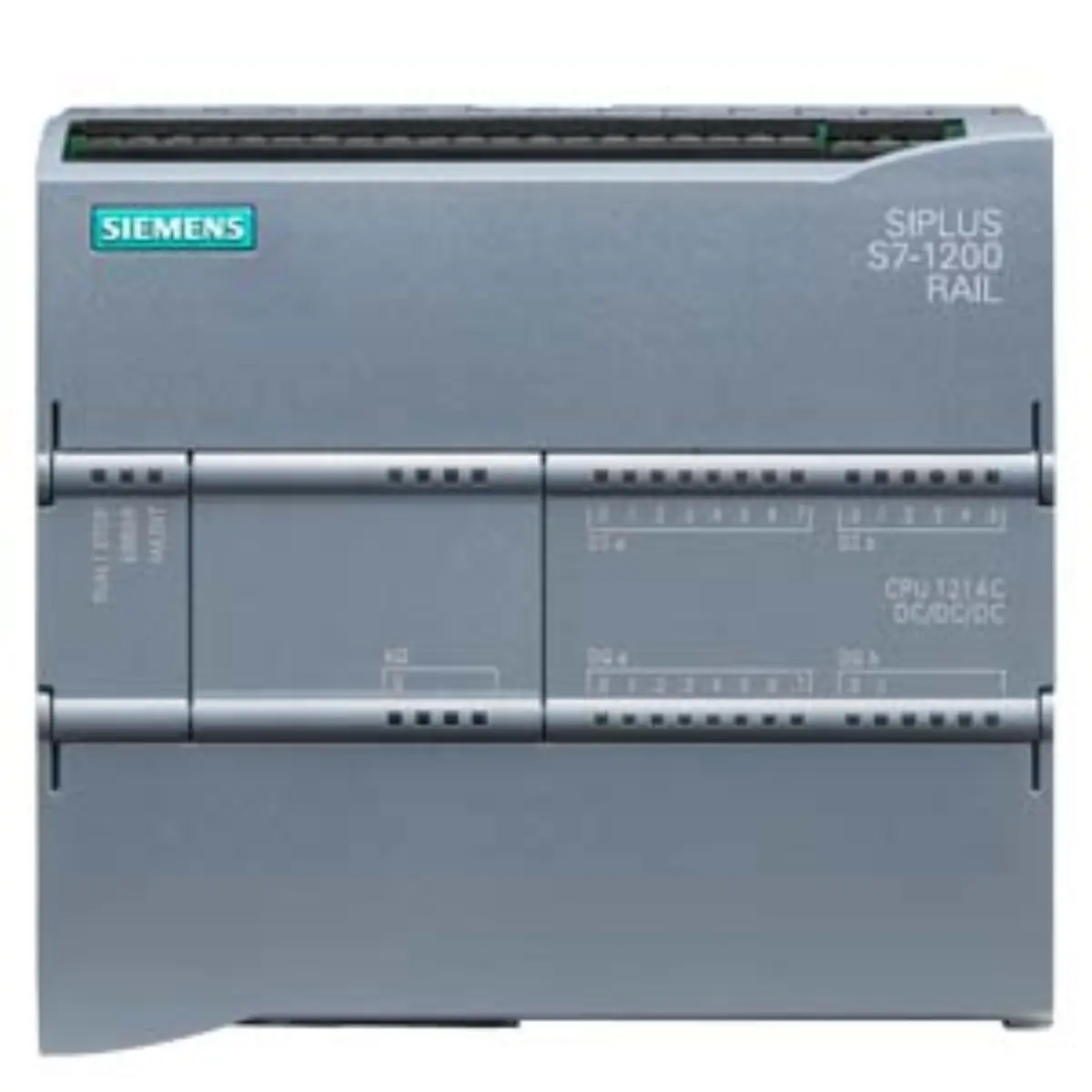

6AG2214-1AG40-1XB0 SIPLUS S7-1200 CPU Inquiry

Part number

6AG2214-1AG40-1XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.7 x 11.4 x 9.00 cm

Net weight

0.421 Kg

Source category

SIPLUS S7-1200 CPU 1214C RAIL

• Operating temperature range extends from -25 °C to +60 °C for continuous use. Keep dimensions 11.7 x 11.4 x 9.00 cm and net weight 0.421 Kg unchanged while comparing project documents and product image evidence.
• Overtemperature class OT1 allows operation up to +70 °C for ten-minute intervals.
• Power supply requirements are specified between 20.4 V DC and 28.8 V DC.
• Program and data memory capacity is recorded at 75 KB for application storage.
• Onboard digital inputs consist of fourteen channels rated for 24 V DC signals.
• Onboard digital outputs provide ten channels capable of switching 24 V DC loads.

• The part number 6AG2214-1AG40-1XB0 identifies the specific SIPLUS extreme variant. Use the source path SIPLUS extreme RAIL standard CPUs / SIPLUS S7-1200 CPU 1214C RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It belongs to the S7-1200 family of programmable logic controllers.
• The model is classified under the SIPLUS S7-1200 CPU 1214C RAIL series.
• Lifecycle status is listed as Active Product within manufacturer catalogs.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 11.7 cm in width and 11.4 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2214-1AG40-1XB0 record before publication.
• Depth measurement is noted at 9.00 cm for mounting space calculations.
• Net weight is specified as 0.421 Kg for logistics and handling assessments.
• Analog inputs support voltage ranges of 0 to 10 V DC for sensor data.
• The controller design integrates compact housing listed for standard DIN rail installation.

• Visual inspection should confirm the presence of conformal coating on circuit boards. Review Siemens 6AG2214-1AG40-1XB0 as PLC CPUs & Controllers with source category SIPLUS S7-1200 CPU 1214C RAIL, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number 6AG2214-1AG40-1XB0.
• Connector types should match DC/DC/DC configuration standards for wiring verification.
• Mounting clips and rail attachment points require visual confirmation for integrity.

• Review project documents to verify temperature requirements against the -25 to +60 °C range. Keep dimensions 11.7 x 11.4 x 9.00 cm and net weight 0.421 Kg unchanged while comparing project documents and product image evidence.
• Confirm power supply specifications align with the 20.4 to 28.8 V DC input.
• Check I/O counts to ensure fourteen digital inputs and ten digital outputs suffice.
• Assess memory needs to determine if 75 KB is sufficient for program size.

• Source parameter review confirms the technical data matches the submitted model number.
• Project document review should validate environmental conditions against the extended temperature rating.
• Technical summary points provide a structured basis for engineering evaluation and comparison.
• All listed specifications are derived directly from the manufacturer's published product data.
