6AG2212-1AE40-1XB0 Industrial Automation Component

Part number

6AG2212-1AE40-1XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

10.8 x 10.6 x 8.6 cm

Net weight

0.34 Kg

Source category

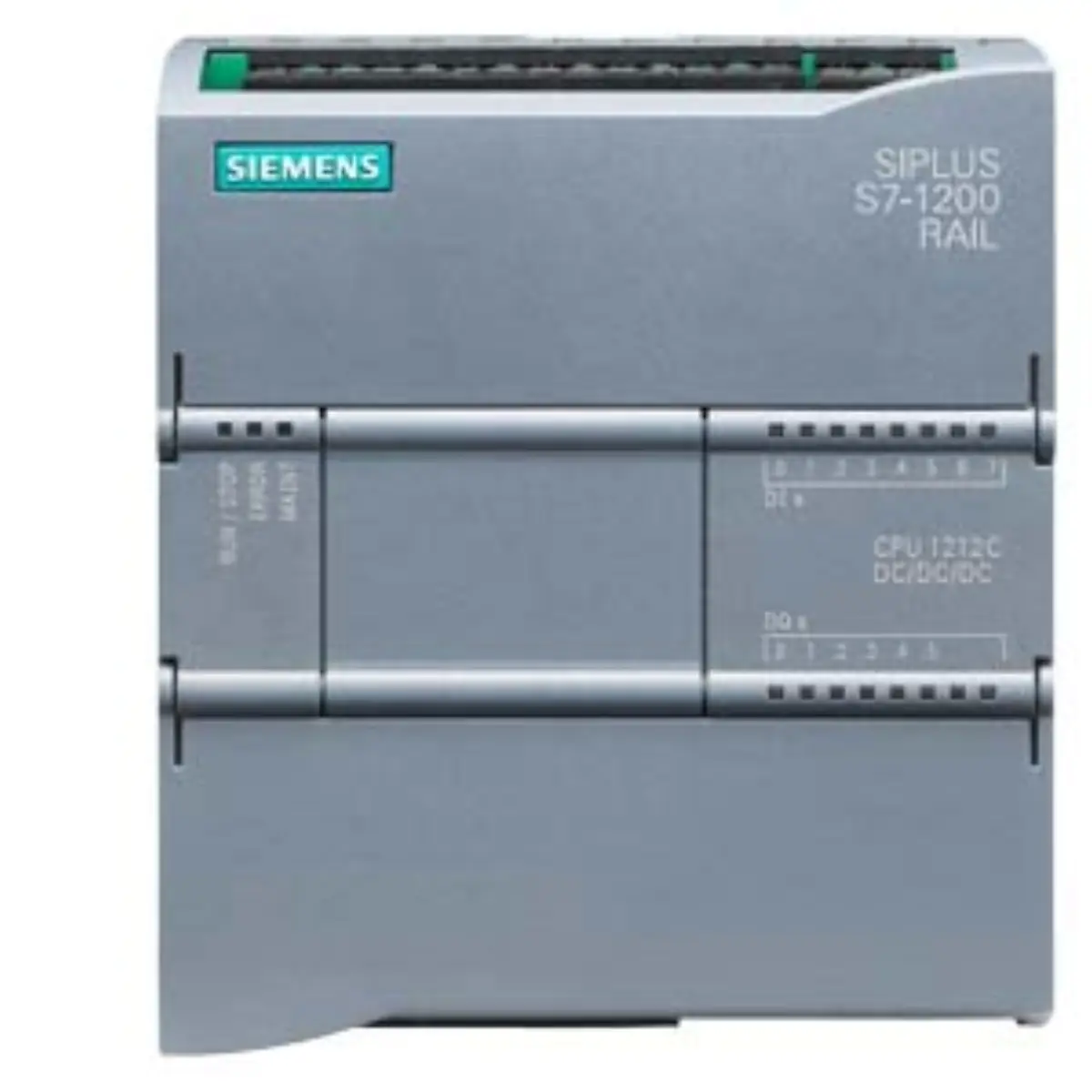

SIPLUS S7-1200 CPU 1212C RAIL

• Physical dimensions are recorded at 10.8 x 10.6 x 8.6 centimeters, ensuring compact integration into control panels. Keep dimensions 10.8 x 10.6 x 8.6 cm and net weight 0.34 Kg unchanged while comparing project documents and product image evidence.
• The net weight is listed as 0.34 kilograms, facilitating easy handling and secure mounting on standard DIN rails.
• Power supply requirements specify a DC voltage range of 20.4 to 28.8 volts for stable controller operation.
• Onboard digital inputs consist of eight channels rated for 24 V DC signals for process monitoring.
• Digital outputs include six channels providing 24 V DC switching capability for actuator control tasks.
• Analog input functionality offers two channels supporting a 0-10 V DC signal range for precise measurement.

• The prefix SIPLUS indicates this model belongs to the extreme environment product line from Siemens. Use the source path SIPLUS extreme RAIL standard CPUs / SIPLUS S7-1200 CPU 1212C RAIL to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Base architecture derives from the S7-1200 CPU 1212C platform, maintaining familiar programming structures.
• Rail-based installation designates this unit for direct mounting on standard industrial DIN rail systems.
• The specific suffix T1 denotes thermal class characteristics relevant to the extended operating temperature range.

Parameters are factual source fields retained for model review.

• Program and data memory capacity is recorded as 50 kilobytes for user application storage needs.
• Overtemperature warning level OT1 triggers alerts when temperatures exceed normal operational thresholds significantly.
• Shutdown threshold ST1 and ST2 activate at +70 degrees Celsius for ten-minute duration limits.
• Conformal coating application provides additional protection layers against environmental contaminants during extended service life.
• DC/DC/DC configuration confirms the input, output, and power supply types for electrical planning.

• Visual inspection should confirm the presence of conformal coating on visible internal components if accessible.
• Labeling must clearly display the full part number 6AG2212-1AE40-1XB0 for accurate identification purposes.
• Mounting rails and connection terminals should appear intact without signs of physical damage or corrosion.
• Overall housing condition reflects the ruggedized design intended for demanding industrial automation applications.

• Verify project documentation requires operation within the specified -25 to +60 degree Celsius range.
• Confirm power supply units provide stable 24 V DC output within the 20.4-28.8 V window.
• Check wiring diagrams for eight digital inputs and six digital outputs matching your control logic.
• Ensure analog sensors align with the 0-10 V DC input range for proper signal acquisition.

• Source parameter review confirms the active product lifecycle status for current engineering projects.
• Technical specifications align with SIPLUS extreme standards for enhanced environmental resilience and durability.
• Memory allocation of 50 KB supports moderate complexity automation programs without immediate expansion needs.
• Final verification should reference the base model 6ES7212-1AE40-0XB0 for architectural comparison and understanding.
