Inquiry: Siemens 6AG1518-4AX00-4AC0 SIPLUS CPU 1518-4 PN/DP MFP

Part number

6AG1518-4AX00-4AC0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

15.5 x 15.5 x 5.00 cm

Net weight

2.135 Kg

Source category

SIPLUS CPU 1518-4 PN/DP MFP

• The device features a 4 MB work memory allocated for program storage and 20 MB dedicated to data management. Keep dimensions 15.5 x 15.5 x 5.00 cm and net weight 2.135 Kg unchanged while comparing project documents and product image evidence.
• Connectivity includes a PROFINET IRT interface with a two-port switch for high-speed real-time communication.
• A second PROFINET RT interface provides additional flexibility for network integration and distributed automation setups.
• An Ethernet interface allows for standard TCP/IP communication protocols and integration with higher-level systems.
• PROFIBUS interface support enables connection to legacy devices and fieldbus networks for comprehensive automation.
• Bit performance is recorded at 1 nanosecond, indicating high-speed processing capabilities for critical control loops.

• The part number 6AG1518-4AX00-4AC0 identifies this specific variant of the SIPLUS CPU 1518-4 PN/DP MFP. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1518-4 PN/DP MFP to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is derived from the base model 6ES7518-4AX00-1AC0 with added environmental protection features.
• The MFP designation indicates Multi-Function Platform capabilities, supporting multiple communication interfaces simultaneously.
• Lifecycle status is listed as Active Product, confirming current manufacturing and support review details.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.5 cm by 15.5 cm by 5.00 cm for spatial planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1518-4AX00-4AC0 record before publication.
• Net weight is specified at 2.135 kg, which is relevant for mounting and structural considerations.
• A SIMATIC Memory Card with a minimum capacity of 2 GB is required for operation.
• OPC UA Runtime license is included, facilitating secure and standardized data exchange over networks.
• Conformal coating is applied to protect internal components from moisture, dust, and corrosive agents.

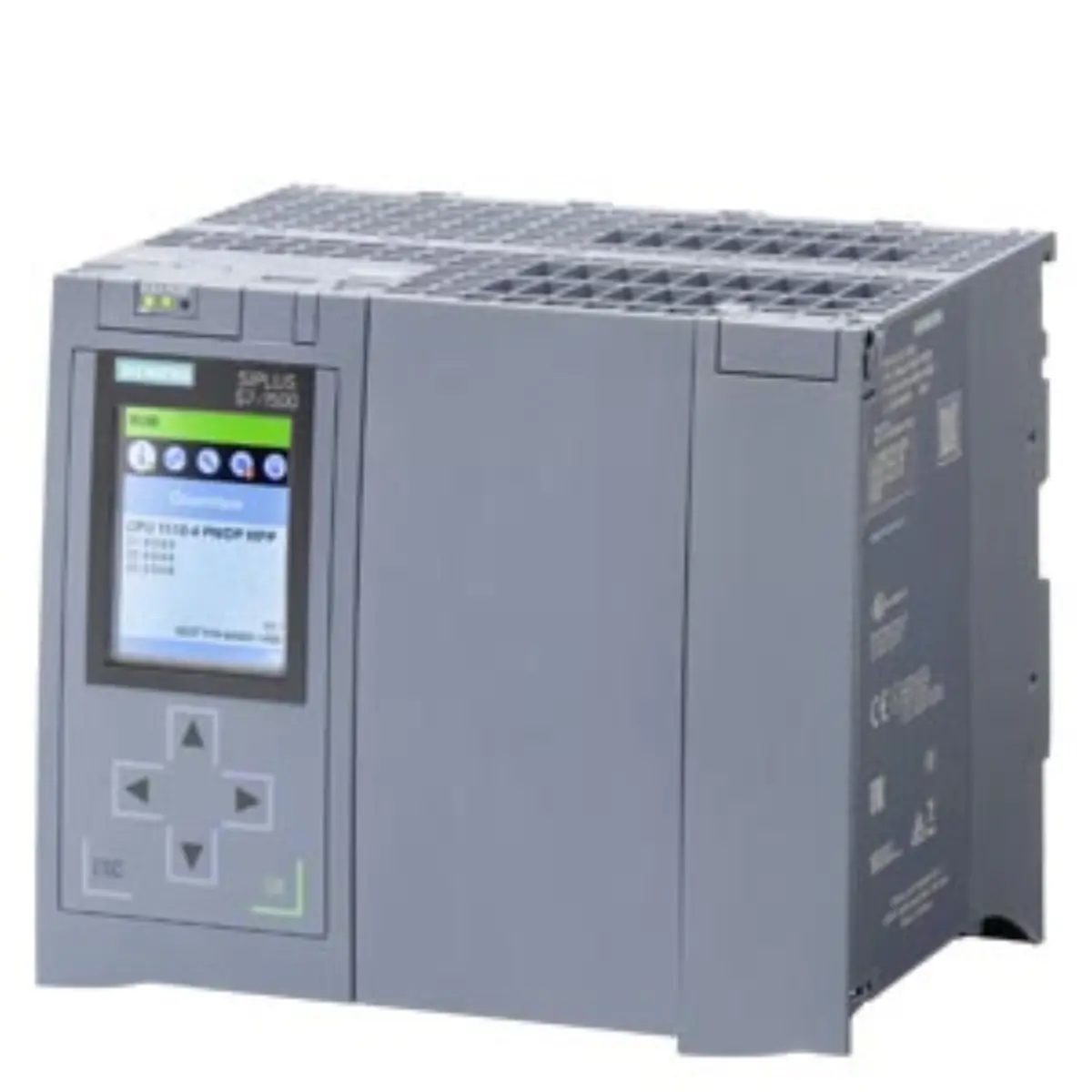

• Front view displays the status LEDs and connection ports for interface identification and monitoring.
• Side profile highlights the compact form factor and DIN-rail mounting mechanism for installation.
• Rear section shows the terminal blocks and communication connectors for wiring and cabling.
• Label area contains the part number and barcode for inventory tracking and verification purposes.

• Verify the required memory card capacity and type before submitting detailed technical questions.
• Confirm the network topology requirements for PROFINET IRT and PROFIBUS integration in your project.
• Check environmental conditions to ensure the 0 to +60 degree range meets your site specs.
• Review the C/C++ runtime license inclusion for software development and deployment planning.

• Source parameter review confirms the technical specifications match the published Siemens documentation.
• Model identification notes verify the correct part number and variant designation for accuracy.
• Lifecycle status indicates active production, supporting long-term project planning and maintenance.
• Inquiry preparation steps help ensure all technical and operational questions are addressed.
