6AG1516-3FP03-2AB0 SIPLUS S7-1500 CPU 1516F-3 PN

Part number

6AG1516-3FP03-2AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS S7-1500 CPU 1516F-3 PN based on 6ES7516-3FP03-0AB0 with conformal coating -40

Lifecycle

Active Product

Dimensions

16.2 x 15.6 x 8.3 cm

Net weight

0.596 Kg

Source category

SIPLUS CPU 1516F-3 PN/DP

• The processor operates within a wide temperature range of -40 to +60 degrees Celsius. Keep dimensions 16.2 x 15.6 x 8.3 cm and net weight 0.596 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating protects internal components against moisture, dust, and corrosive industrial atmospheres.
• Work memory allocation includes 3 MB dedicated to program storage and 7.5 MB for data.
• Bit performance is recorded at 6 nanoseconds, ensuring rapid processing cycles for control logic.
• The first interface utilizes PROFINET IRT with a built-in two-port switch configuration.
• Additional connectivity options include a second PROFINET RT interface and a third PROFIBUS port.

• The base model for this unit is identified as 6ES7516-3FP03-0AB0 in technical documentation. Use the source path Automation technology / SIPLUS fail-safe CPUs / SIPLUS CPU 1516F-3 PN/DP to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The SIPLUS prefix indicates enhanced environmental resistance compared to standard SIMATIC S7-1500 CPUs.
• Fail-safe functionality is integrated, denoted by the F designation within the product code.
• Network capabilities are defined by the PN suffix, highlighting PROFINET communication support.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 16.2 centimeters in width, 15.6 centimeters in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1516-3FP03-2AB0 record before publication.
• The height of the unit measures 8.3 centimeters for rack mounting considerations.
• Net weight is recorded at 0.596 kilograms, affecting load calculations for installation frames.
• A SIMATIC Memory Card is required for operation, though not included with the unit.
• Lifecycle status is currently active, indicating ongoing production and technical support review details.

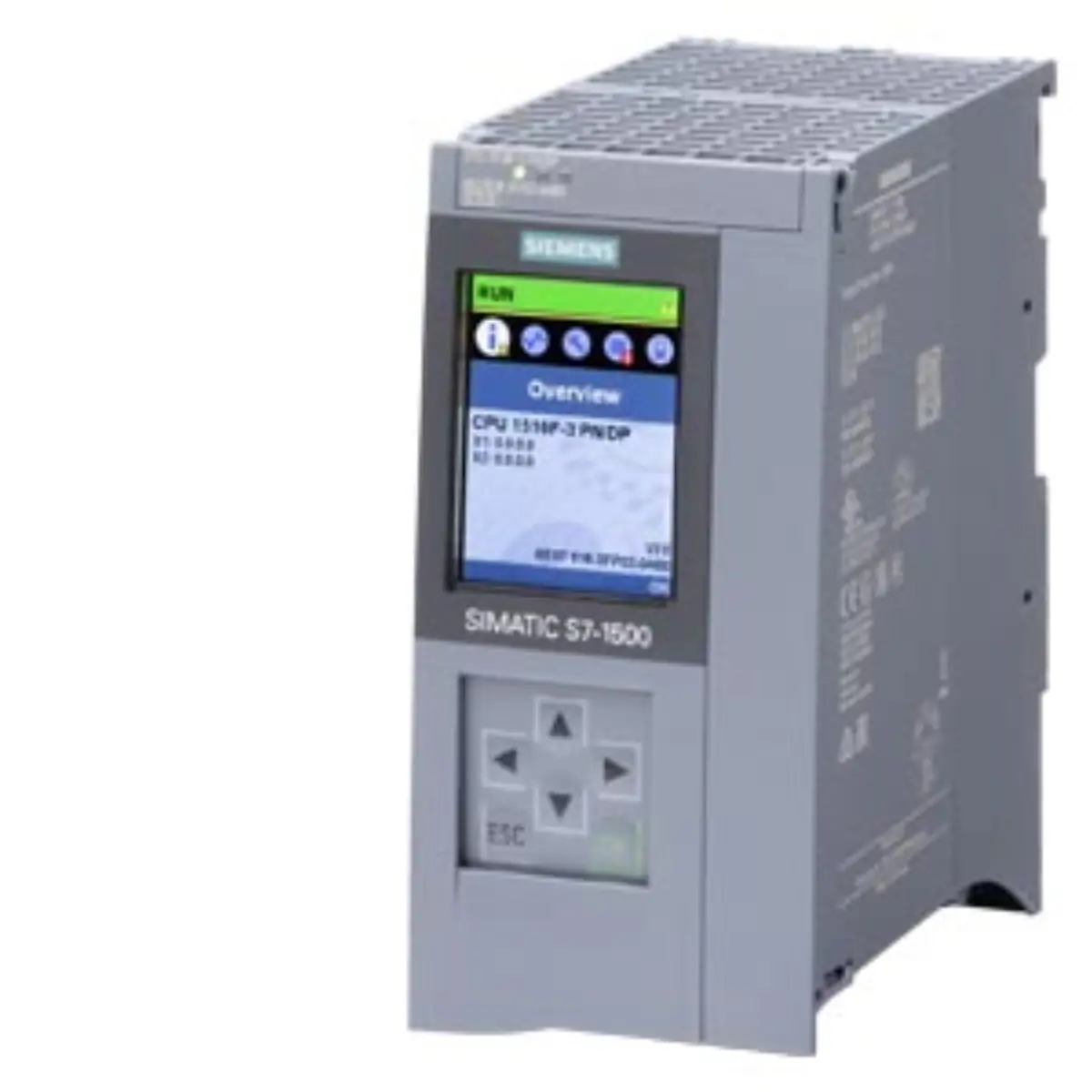

• Front panel displays the Siemens logo and model identification labels clearly. Review Siemens 6AG1516-3FP03-2AB0 as plc cpu controllers with source category SIPLUS CPU 1516F-3 PN/DP, recorded lifecycle Active Product, and submitted model identity.
• Connector ports for PROFINET and PROFIBUS are visible on the side interfaces.
• Status LEDs indicate power supply and diagnostic states for operational monitoring.
• Mounting rails and securing mechanisms are shown for DIN rail installation procedures.

• Verify the required memory card type before submitting the detailed inquiry form. Keep dimensions 16.2 x 15.6 x 8.3 cm and net weight 0.596 Kg unchanged while comparing project documents and product image evidence.
• Confirm the specific PROFINET or PROFIBUS network topology for interface application context checks.
• Document the ambient temperature conditions to ensure the -40 to +60 range fits.
• Review project documentation for any additional fail-safe safety integrity level requirements.

• Ensure all technical parameters match the specific requirements of the target project.
• Cross-reference the base model number when consulting standard S7-1500 documentation sources.
• Check that the conformal coating meets the chemical exposure standards of the site.
• Validate the network switch configuration aligns with existing infrastructure planning documents.
