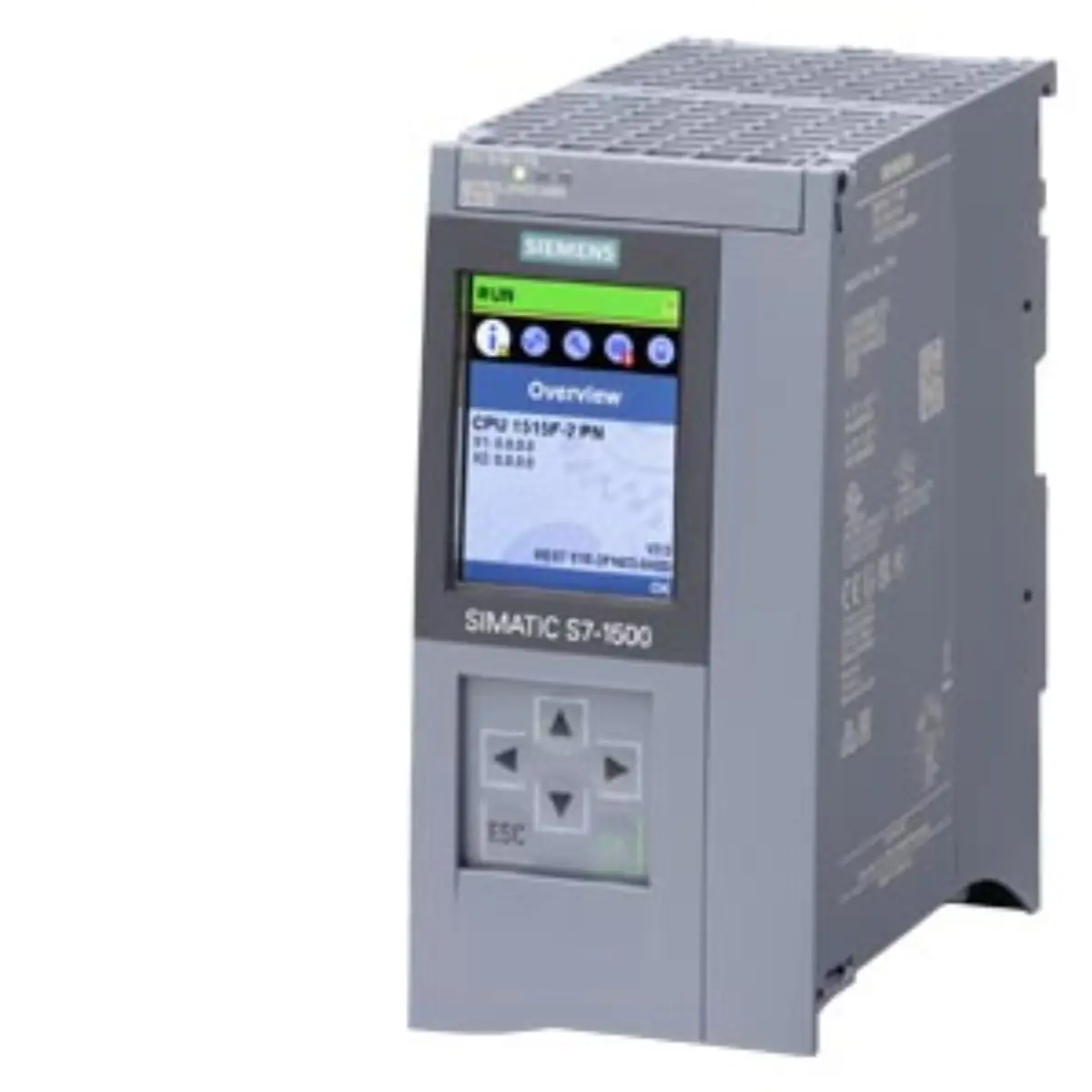

Siemens 6AG1515-2FN03-2AB0 SIPLUS S7-1500 CPU 1515F-2 PN

Part number

6AG1515-2FN03-2AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS S7-1500 CPU 1515F-2 PN based on 6ES7515-2FN03-0AB0 with conformal coating -40

Lifecycle

Active Product

Dimensions

16.00 x 15.6 x 8.3 cm

Net weight

0.582 Kg

Source category

SIPLUS CPU 1515F-2 PN

• Central processing utilizes 1.5 MB of work memory allocated specifically for program storage and execution logic. Keep dimensions 16.00 x 15.6 x 8.3 cm and net weight 0.582 Kg unchanged while comparing project documents and product image evidence.
• An additional 4.5 MB of data memory supports dynamic variables and temporary storage during operational cycles.
• The first communication interface implements PROFINET IRT technology featuring a built-in two-port switch mechanism.
• A second interface provides PROFINET RT support, enabling real-time data exchange for time-critical applications.
• Bit-level processing performance is recorded at 6 nanoseconds, ensuring rapid response to input changes.
• Operation is supported within a temperature range of -40 degrees Celsius up to +60 degrees Celsius.

• The base hardware architecture corresponds directly to the Siemens 6ES7515-2FN03-0AB0 platform specification. Use the source path Automation technology / SIPLUS fail-safe CPUs / SIPLUS CPU 1515F-2 PN to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates enhanced environmental protection through applied conformal coating on internal circuitry.
• Fail-safe functionality is inherent in the F-type designation within the S7-1500 controller series.
• PN suffix confirms integrated PROFINET network capabilities as the primary communication protocol interface.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 16.00 cm in width, 15.6 cm in depth, and 8.3 cm in height.
• Net weight is listed at 0.582 kilograms, reflecting the mass of the controller unit itself.
• Memory allocation splits between 1.5 MB for programs and 4.5 MB for data handling processes.
• Performance metric of 6 ns bit processing speed applies to standard digital logic evaluation operations.
• Temperature rating spans from -40°C to +60°C, defining the operational envelope for electronic components.

• Visual documentation typically displays the front panel with status LEDs indicating operational state and errors.
• Rear view often shows the PROFINET ports labeled for correct network cable connection procedures.
• Side profiles may highlight the DIN rail mounting clips used for secure panel installation methods.
• Labeling includes the full part number 6AG1515-2FN03-2AB0 for clear identification during inventory checks.

• Verify project requirements against the 1.5 MB program memory limit for adequate code capacity.
• Confirm network topology needs to ensure PROFINET IRT and RT interfaces meet bandwidth demands.
• Check environmental conditions to validate the -40°C to +60°C range suits the installation site.
• Review mechanical constraints to ensure the 16x15.6x8.3 cm footprint fits within existing control panels.

• Source data indicates active product lifecycle status for current manufacturing and support review details.
• Category path places this item within Automation technology, specifically under SIPLUS CPU 1515F-2 PN.
• Memory card requirement is noted as essential for booting and storing user program data.
• Conformal coating application distinguishes this model from standard S7-1500 variants for harsher environments.
