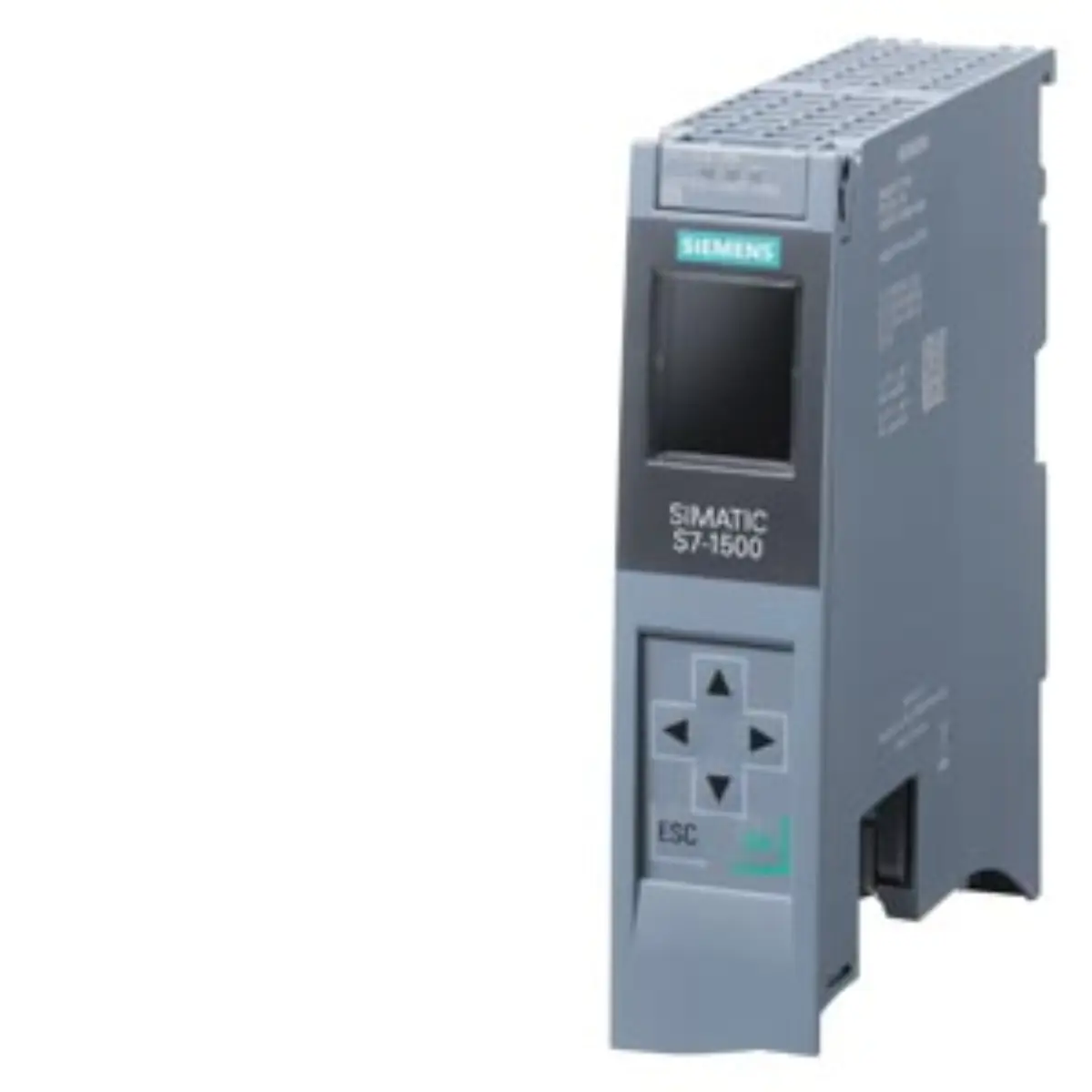

Siemens 6AG1513-1AM03-2AB0 SIPLUS S7-1500 CPU Inquiry

Part number

6AG1513-1AM03-2AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS S7-1500 CPU 1513-1 PN based on 6ES7513-1AM03-0AB0 with conformal coating -40

Lifecycle

Active Product

Net weight

0.452 Kg

Source category

SIPLUS CPU 1513-1 PN

• Based on the 6ES7513-1AM03-0AB0 model, this unit offers enhanced durability through specialized protective coatings. Keep dimensions Not recorded and net weight 0.452 Kg unchanged while comparing project documents and product image evidence.
• It includes a work memory of 600 KB for program storage and 2.5 MB for data handling.
• The first interface utilizes PROFINET IRT with a built-in two-port switch for network connectivity.
• Bit performance is recorded at 25 ns, supporting high-speed processing requirements for critical applications.
• A SIMATIC Memory Card is required for operation, serving as the primary storage medium for programs.
• The net weight is listed as 0.452 Kg, indicating a compact form factor for panel mounting.

• The part number 6AG1513-1AM03-2AB0 identifies this specific SIPLUS variant within the S7-1500 family. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1513-1 PN to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The prefix SIPLUS denotes the extended environmental rating compared to standard industrial automation components.
• CPU 1513-1 PN indicates the processor class and its integrated PROFINET communication capabilities.
• The suffix 2AB0 distinguishes this coated version from the base model 0AB0.

Parameters are factual source fields retained for model review.

• Operating temperature range spans from -40 degrees Celsius up to +60 degrees Celsius. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1513-1AM03-2AB0 record before publication.
• Program memory capacity is fixed at 600 KB for storing user application logic.
• Data memory allocation provides 2.5 MB for handling process data and variables.
• Network interface type is specified as PROFINET IRT with dual port switching functionality.
• Required peripheral component is a SIMATIC Memory Card for booting and storage.

• Visual inspection should confirm the presence of conformal coating on internal circuit boards. Review Siemens 6AG1513-1AM03-2AB0 as plc cpu controllers with source category SIPLUS CPU 1513-1 PN, recorded lifecycle Active Product, and submitted model identity.
• Label verification must match the part number 6AG1513-1AM03-2AB0 exactly on the housing.
• Port configuration shows two Ethernet ports for PROFINET IRT connection setup.
• Physical dimensions appear consistent with standard S7-1500 DIN rail mountable controller designs.

• Verify that your project environment falls within the -40°C to +60°C operational range. Keep dimensions Not recorded and net weight 0.452 Kg unchanged while comparing project documents and product image evidence.
• Ensure you have the correct SIMATIC Memory Card for program loading and execution.
• Confirm PROFINET IRT network infrastructure supports the required 25 ns bit performance levels.
• Document specific memory requirements to ensure the 600 KB program and 2.5 MB data limits suffice.

• Check the lifecycle status which is currently listed as Active Product for ongoing support.
• Source parameter review confirms the technical specifications align with standard SIPLUS documentation.
• Project document review should include network topology and environmental condition assessments.
• Submit detailed inquiry information to facilitate accurate technical evaluation and response.
