6AG1512-1SM03-7AB0 SIPLUS ET 200SP CPU 1512SP F-1

Part number

6AG1512-1SM03-7AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS ET 200SP CPU 1512SP F-1 based on 6ES7512-1SM03-0AB0 with conformal coating -40

Lifecycle

Active Product

Dimensions

13.4 x 13.3 x 8.8 cm

Net weight

0.387 Kg

Source category

SIPLUS CPU 1512SP F-1 PN

• Central processing unit equipped with 600 KB of work memory allocated specifically for program storage requirements. Keep dimensions 13.4 x 13.3 x 8.8 cm and net weight 0.387 Kg unchanged while comparing project documents and product image evidence.
• Additional 2 MB of data memory provides sufficient space for complex variable handling and process data.
• First interface utilizes PROFINET IRT technology featuring a built-in three-port switch for network connectivity.
• Bit performance capability reaches 25 nanoseconds, ensuring rapid execution cycles for time-sensitive automation tasks.
• Operating temperature range spans from -40 degrees Celsius to +70 degrees Celsius for extreme condition support.
• Conformal coating application protects internal components against moisture, dust, and corrosive substances during operation.

• Part number 6AG1512-1SM03-7AB0 identifies the specific SIPLUS variant with extended environmental protection features. Use the source path Automation technology / SIPLUS fail-safe CPUs / SIPLUS CPU 1512SP F-1 PN to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The suffix 7AB0 distinguishes this model from standard ET 200SP CPUs without conformal coating.
• Base hardware reference links to 6ES7512-1SM03-0AB0, indicating the underlying CPU architecture used in design.
• Lifecycle status listed as Active Product confirms current manufacturing and support review details for inquiry preparation.

Parameters are factual source fields retained for model review.

• Net weight recorded at 0.387 kilograms, facilitating easy handling and installation within distributed I/O stations. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1512-1SM03-7AB0 record before publication.
• Physical dimensions measure 13.4 x 13.3 x 8.8 centimeters, fitting standard rack mounting configurations.
• Memory card requirement noted as mandatory for program storage, necessitating separate SIMATIC Memory Card acquisition.
• BusAdapter requirement specified for ports 1 and 2, essential for proper electrical interface connections.

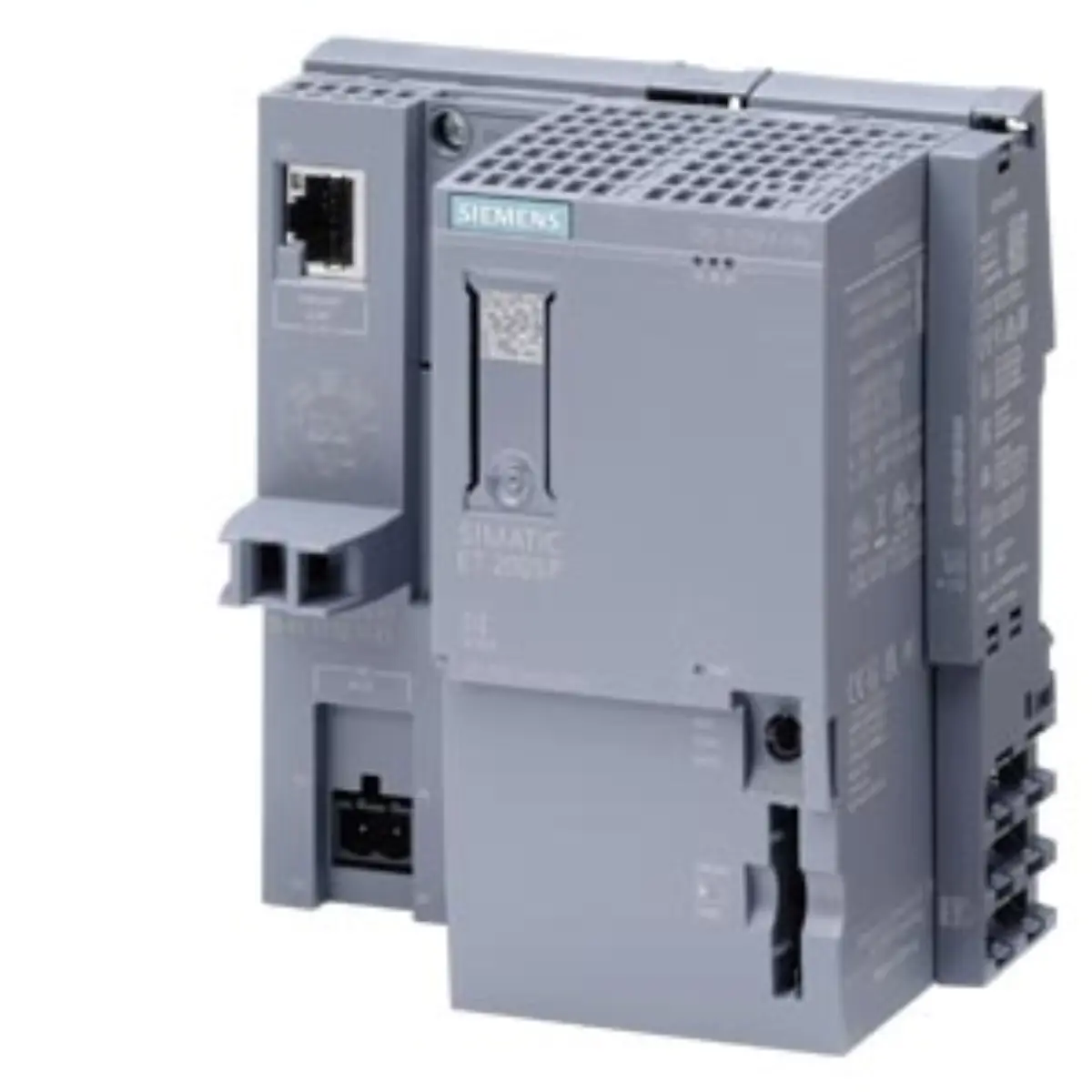

• Front view displays the compact housing design typical of the ET 200SP modular system architecture.
• Labeling clearly shows the full part number 6AG1512-1SM03-7AB0 for accurate visual identification purposes.
• Connection ports visible on the side indicate PROFINET interface locations for network cable attachment.
• Mounting rail clips demonstrate the snap-on installation method application context with standard DIN rails.

• Verify project requirements for PROFINET IRT communication speed and three-port switch topology integration.
• Confirm necessity for conformal coating due to specific environmental exposure levels in the installation site.
• Check review details of required SIMATIC Memory Cards and BusAdapters for complete system functionality.
• Review dimensional constraints to ensure physical fit within existing control cabinet or rack spaces.

• Source parameter review indicates active lifecycle status supporting long-term project planning considerations.
• Technical documentation should be consulted for detailed wiring diagrams and configuration software requirements.
• Environmental rating verification ensures suitability for the intended operational temperature and humidity ranges.
• Memory allocation analysis confirms adequacy for the specific control logic and data handling needs.
