6AG1512-1SM03-2AB0 SIPLUS ET 200SP CPU 1512SP F-1

Part number

6AG1512-1SM03-2AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

SIPLUS ET 200SP CPU 1512SP F-1 based on 6ES7512-1SM03-0AB0 with conformal coating -40

Lifecycle

Active Product

Dimensions

13.4 x 13.3 x 8.8 cm

Net weight

0.387 Kg

Source category

SIPLUS CPU 1512SP F-1 PN

• Central processing unit equipped with 600 KB of working memory allocated for program storage and execution tasks. Keep dimensions 13.4 x 13.3 x 8.8 cm and net weight 0.387 Kg unchanged while comparing project documents and product image evidence.
• Additional 2 MB of data memory supports extensive information handling and variable storage requirements.
• First interface utilizes PROFINET IRT technology featuring a built-in three-port switch for network connectivity.
• Bit performance capability reaches 25 nanoseconds, ensuring rapid processing speeds for critical control loops.
• A SIMATIC Memory Card is required for operation, serving as essential storage for boot and configuration data.
• BusAdapter components are necessary for ports 1 and 2 to establish proper physical layer connections.

• Brand designation confirms this unit originates from Siemens industrial automation product lines. Use the source path Automation technology / SIPLUS fail-safe CPUs / SIPLUS CPU 1512SP F-1 PN to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification identifies it as an Active Product within current manufacturing cycles.
• Model variant specifies SIPLUS ET 200SP CPU 1512SP F-1 structure.
• Base hardware reference links to the underlying 6ES7512-1SM03-0AB0 technical foundation.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.4 cm in length, 13.3 cm in width, and 8.8 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1512-1SM03-2AB0 record before publication.
• Net weight is listed at 0.387 kilograms for logistical and mounting assessments.
• Source category path indicates placement under Automation technology and SIPLUS fail-safe CPUs.
• Specific sub-category lists the item as SIPLUS CPU 1512SP F-1 PN.
• Operating temperature range extends from -40 degrees Celsius up to +60 degrees Celsius.

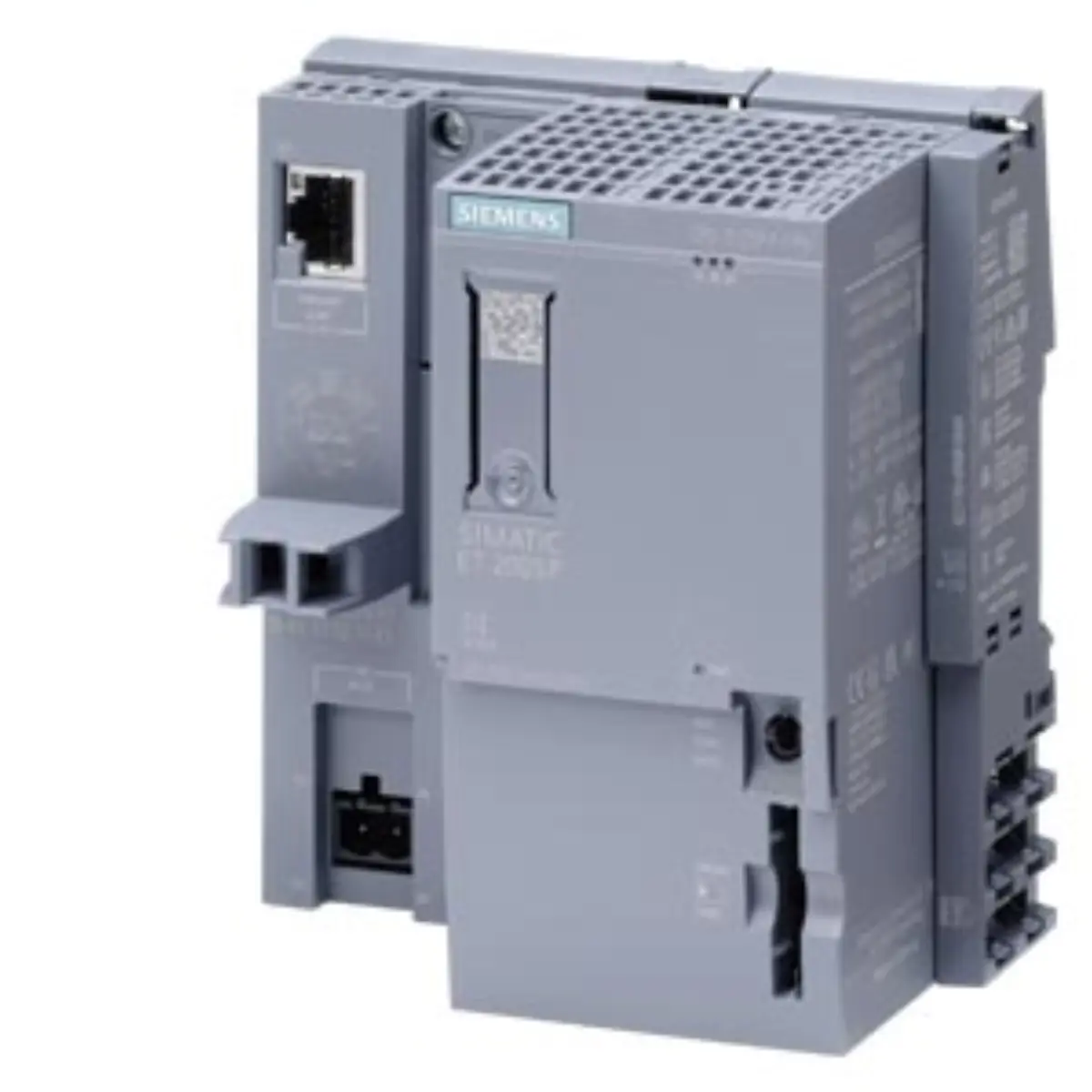

• Front panel displays standard SIPLUS labeling and status indicator LEDs for operational monitoring. Review Siemens 6AG1512-1SM03-2AB0 as plc cpu controllers with source category SIPLUS CPU 1512SP F-1 PN, recorded lifecycle Active Product, and submitted model identity.
• Side view reveals the compact form factor consistent with ET 200SP module standards.
• Rear connection area shows terminal blocks for power supply and signal wiring inputs.
• Overall housing exhibits protective casing designed for industrial environment durability and safety.

• Verify project documentation requires fail-safe CPU functionality for safety-related control processes. Keep dimensions 13.4 x 13.3 x 8.8 cm and net weight 0.387 Kg unchanged while comparing project documents and product image evidence.
• Confirm network infrastructure supports PROFINET IRT communication protocols for real-time data exchange.
• Check that SIMATIC Memory Cards are included or request separately for system initialization.
• Ensure BusAdapters are procured for ports 1 and 2 to complete hardware setup.

• Cross-reference the submitted model number against existing system designs for accuracy.
• Review source parameters to ensure environmental ratings match specific installation conditions.
• Validate memory requirements align with the complexity of the intended control program.
• Confirm interface specifications meet the network topology and bandwidth needs of the application.
