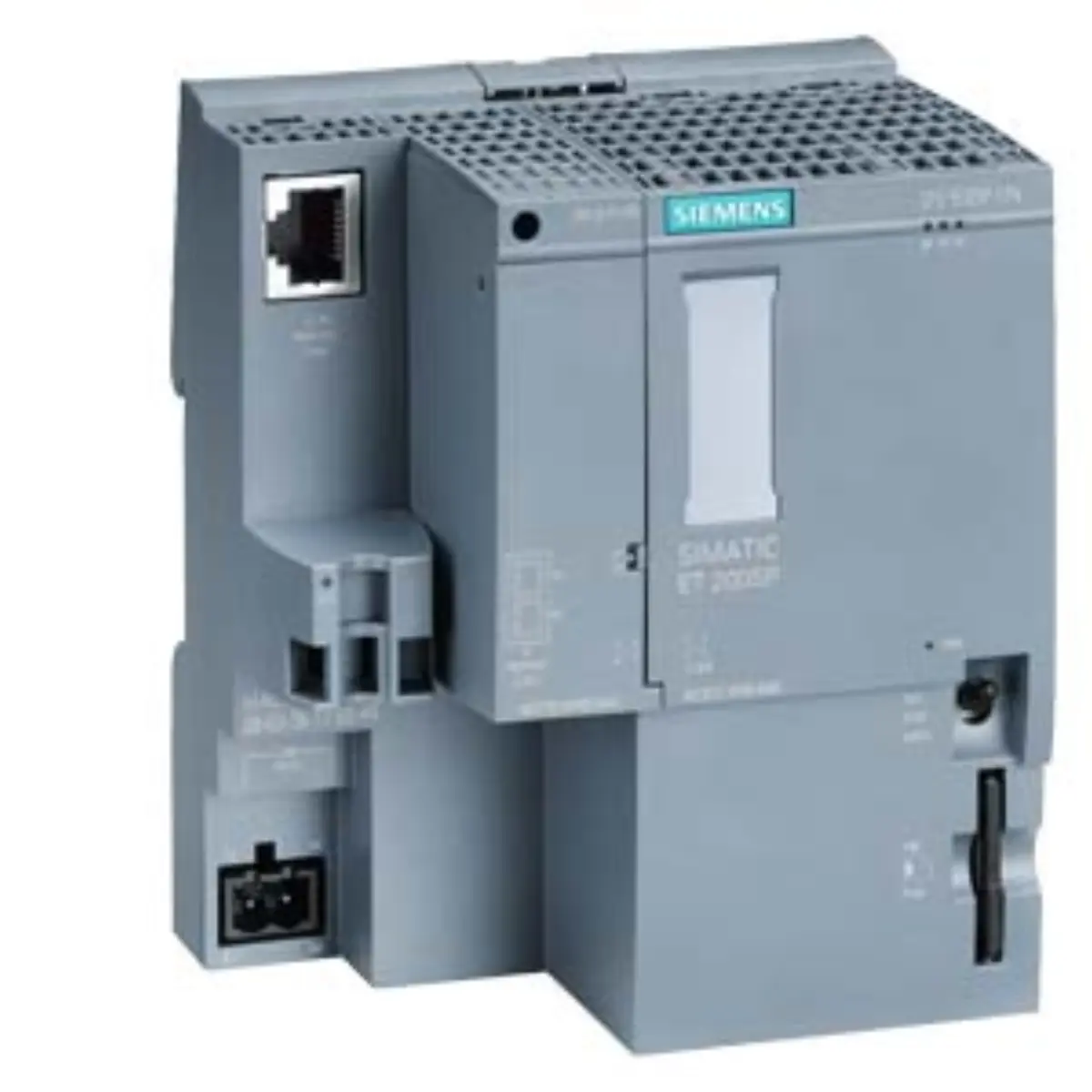

Siemens 6AG1510-1DJ01-2AB0 SIPLUS CPU 1510SP-1 PN

Part number

6AG1510-1DJ01-2AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Phase Out Announce

Dimensions

13.00 x 13.00 x 8.00 cm

Net weight

0.395 Kg

Source category

SIPLUS CPU 1510SP-1 PN

• Central processing capability includes 100 KB work memory for program storage and execution tasks within the automated control environment.
• Data memory capacity is recorded at 750 KB, allowing substantial storage for variables and historical process information during operations.
• The first interface utilizes PROFINET IRT technology, enabling high-performance real-time communication essential for synchronized industrial automation processes.
• Bit performance is specified at 72 nanoseconds, indicating rapid processing speeds for logic execution and control signal management.
• Physical dimensions are listed as 13.00 x 13.00 x 8.00 cm, providing a compact form factor for integration into control cabinets.
• Net weight is documented at 0.395 Kg, contributing to manageable handling and installation procedures within standard industrial mounting systems.

• The product falls under the SIPLUS standard CPUs classification, specifically identified as the SIPLUS CPU 1510SP-1 PN variant.
• Lifecycle status is currently noted as Phase Out Announce, requiring careful consideration for long-term project planning and documentation.
• Product class designation indicates review restrictions, advising direct contact with designated Siemens review contacts for specific handling inquiries.
• The part number 6AG1510-1DJ01-2AB0 serves as the primary identifier for sourcing and technical reference in project documents.

Parameters are factual source fields retained for model review.

• Operating temperature range extends from -40 to +60 degrees Celsius, ensuring functionality in extreme environmental conditions.
• Conformal coating is applied to the internal components, providing enhanced protection against moisture, dust, and corrosive agents.
• BusAdapters are required for ports 1 and 2, necessitating additional component selection for complete interface connectivity.
• SIMATIC Memory Card usage is mandatory for program storage, influencing the overall hardware configuration and accessory list.
• The base model derivation from 6ES7510-1DJ01-0AB0 suggests shared architectural principles while offering specialized environmental hardening features.

• Visual inspection should confirm the presence of conformal coating indicators on the printed circuit board assembly.
• Port configurations must align with the specified three-port PROFINET IRT switch layout for network integration verification.
• Labeling accuracy should be checked against the part number 6AG1510-1DJ01-2AB0 to ensure correct model identification.
• Physical condition assessment includes verifying the integrity of mounting points and connector pins for proper installation readiness.

• Review project requirements to determine if the extended temperature range meets specific environmental operational criteria.
• Verify necessary accessories such as BusAdapters and SIMATIC Memory Cards are included in the total system design.
• Consider the Phase Out Announce status when evaluating long-term maintenance and support strategies for the installation.
• Prepare detailed technical specifications for submission to ensure accurate matching with recorded inventory or alternative solutions.

• Confirm that all required accessories are accounted for before finalizing the technical specification review process.
• Assess the impact of the lifecycle status on future supply chain stability and component review details.
• Ensure that the physical dimensions fit within the allocated space in the target control cabinet design.
• Validate that the memory capacities meet the program and data storage requirements of the intended application.
