Siemens 6AG1343-1GX31-4XE0 Inquiry Page

Part number

6AG1343-1GX31-4XE0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 8.7 cm

Net weight

0.574 Kg

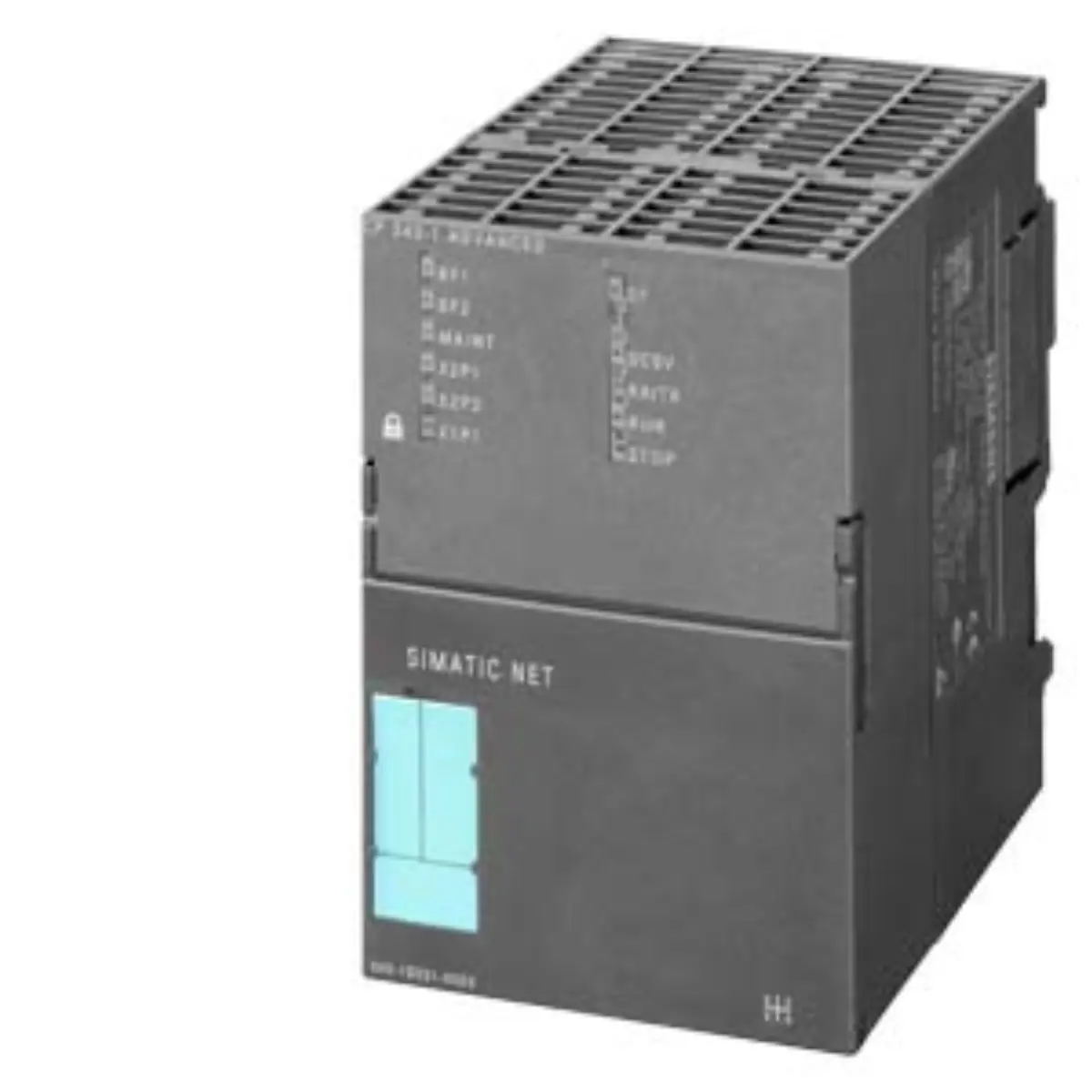

• Connects SIMATIC S7-300 CPUs to Industrial Ethernet, PROFINET IO Controller, and IO Device interfaces for real-time automation tasks. Keep dimensions 13.00 x 15.00 x 8.7 cm and net weight 0.574 Kg unchanged while comparing project documents and product image evidence.
• Supports PROFINET CBA, TCP/IP ISO, UDP, and S7 communication with fetch/write functions, including RFC 1006 integration.
• Includes multicast diagnostics extension, SNMP, DHCP, FTP client/server, and email capabilities for comprehensive network management.
• Features Gigabit Ethernet via RJ45 port alongside two additional PROFINET RJ45 ports operating at ten or one hundred megabits per second.
• Enables IRT (Isochronous Real-Time) communication for synchronized data transfer in high-performance automation applications.
• Integrates MRP (Media Redundancy Protocol) for maintaining network stability during cable or switch failures in critical infrastructure.

• Based on the SIPLUS NET CP 343-1 Advanced platform, derived from the base model 6GK7343-1GX31-0XE0.
• Identified by the specific part number 6AG1343-1GX31-4XE0, indicating its extended environmental rating and feature set.
• Classified under product class B, which indicates restricted review notes requiring direct contact with manufacturer representatives.
• Lifecycle status is recorded as Production Cancellation, meaning new production has ceased for this specific hardware revision.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as thirteen by fifteen by eight point seven centimeters for spatial planning purposes.
• Net weight is listed as zero point five seven four kilograms, aiding in logistics and mounting calculations.
• Operating temperature range is specified from zero to sixty degrees Celsius, listed for controlled industrial enclosures.
• Network interfaces include one Gigabit RJ45 port and two standard PROFINET RJ45 ports for flexible cabling.
• Protocol support covers essential industrial standards including TCP/IP, UDP, SNMP, and various S7 communication modes.

• Visual inspection should confirm the presence of conformal coating on internal circuitry for environmental protection.
• Check port labels to verify Gigabit Ethernet and PROFINET interface configurations match the technical specifications.
• Ensure the label displays the full part number 6AG1343-1GX31-4XE0 for accurate inventory and inquiry matching.
• Inspect physical connectors for any signs of damage or corrosion that might affect network performance.

• Verify the exact part number 6AG1343-1GX31-4XE0 when submitting technical questions to ensure accurate responses.
• Include project requirements such as operating temperature and network topology to receive relevant technical guidance.
• Note the production cancellation status when planning long-term maintenance strategies for existing S7-300 installations.
• Contact designated Siemens review contacts for assistance regarding the restricted review note associated with product class B.

• Confirm all technical parameters align with your specific automation project requirements before finalizing the inquiry.
• Review the lifecycle status carefully, as production cancellation may impact future supply chain considerations.
• Ensure compliance with product class B restrictions regarding review by consulting documented manufacturer guidelines.
• Document all technical specifications for internal records to facilitate smoother inquiry preparation and integration processes later.
