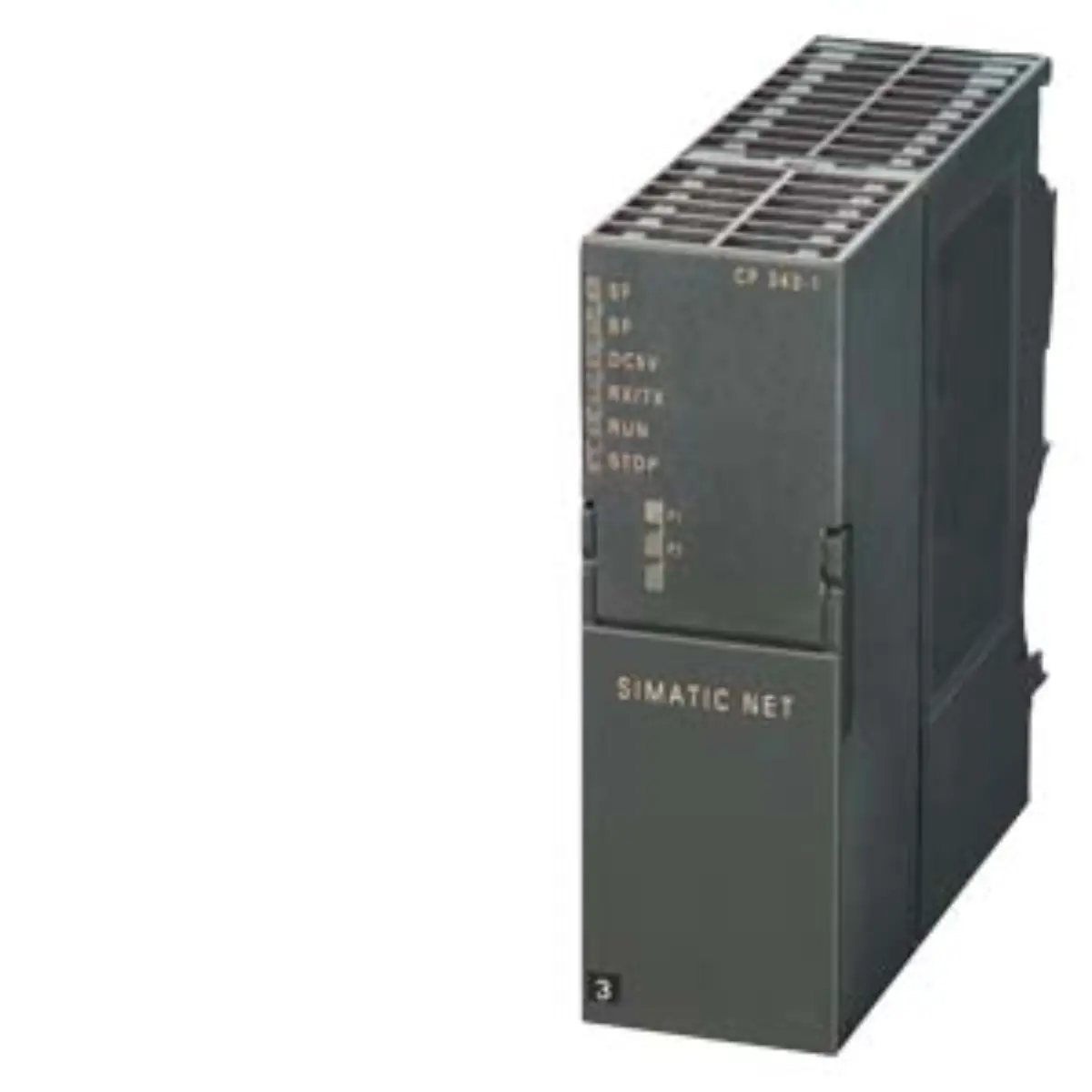

Siemens 6AG1343-1EX30-7XE0 Industrial Ethernet Communications Processor

Part number

6AG1343-1EX30-7XE0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Prod. Cancellation

Dimensions

15.2 x 13.2 x 5.1 cm

Net weight

0.287 Kg

• Connects SIMATIC S7-300 systems to Industrial Ethernet via ISO and TCP/IP protocol stacks for reliable data transmission. Keep dimensions 15.2 x 13.2 x 5.1 cm and net weight 0.287 Kg unchanged while comparing project documents and product image evidence.
• Supports PROFINET IO controller and PROFINET IO device roles for flexible network topology integration and management.
• Includes an integrated two-port switch identified as ERTEC 200 S7 for enhanced communication performance and stability.
• Facilitates fetch/write operations and send/receive functions with and without RFC1006 support for diverse application needs.
• Enables multicast DHCP functionality and NTC-CPU synchronization for precise timing and network address management.
• Provides comprehensive diagnostics and initialization capabilities via LAN interface to ensure continuous operational monitoring.

• Based on the reference model 6GK7343-1EX30-0XE0 with specific modifications for industrial environment resilience. Use the source path plc-cpu-controllers to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Identified as a SPARE PART item requiring careful handling and verification during the inquiry process.
• Marked with lifecycle status indicating production cancellation, necessitating thorough review of current project requirements.
• Classified under product class B, which denotes review restrictions and requires direct contact with review contacts.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.2 x 13.2 x 5.1 cm for accurate spatial planning in control cabinets.
• Net weight is listed at 0.287 Kg, allowing for precise load calculations during installation and mounting.
• Operating temperature range spans from -25°C to +70°C, ensuring functionality in demanding industrial settings.
• Conformal coating provides additional protection against environmental factors, enhancing durability and longevity of the component.
• Network interface specifications support both controller and device modes for versatile deployment in automated systems.

• Visual inspection should confirm the presence of the Siemens branding and the specific part number label.
• Check for any visible signs of physical damage or wear that might affect the unit's integrity.
• Verify the condition of the connector ports to ensure they are clean and free from debris.
• Ensure the conformal coating appears intact and uniform across the surface of the electronic components.

• Prepare detailed project documentation specifying the required network protocols and topology for the S7-300 system.
• Confirm the operating environment conditions to ensure the -25...+70 °C range meets your facility standards.
• Review the review restriction policy associated with product class B before finalizing any inquiry preparation steps.
• Include the exact part number 6AG1343-1EX30-7XE0 in all correspondence to avoid confusion with similar models.

• The lifecycle status indicates production cancellation, so verify long-term support options during the inquiry.
• Product class B restrictions mean review are limited; ensure all technical requirements are fully understood.
• Source parameter review confirms the base model is 6GK7343-1EX30-0XE0 with added environmental protections.
• Project document review should highlight the need for RFC1006 support if applicable to your setup.
