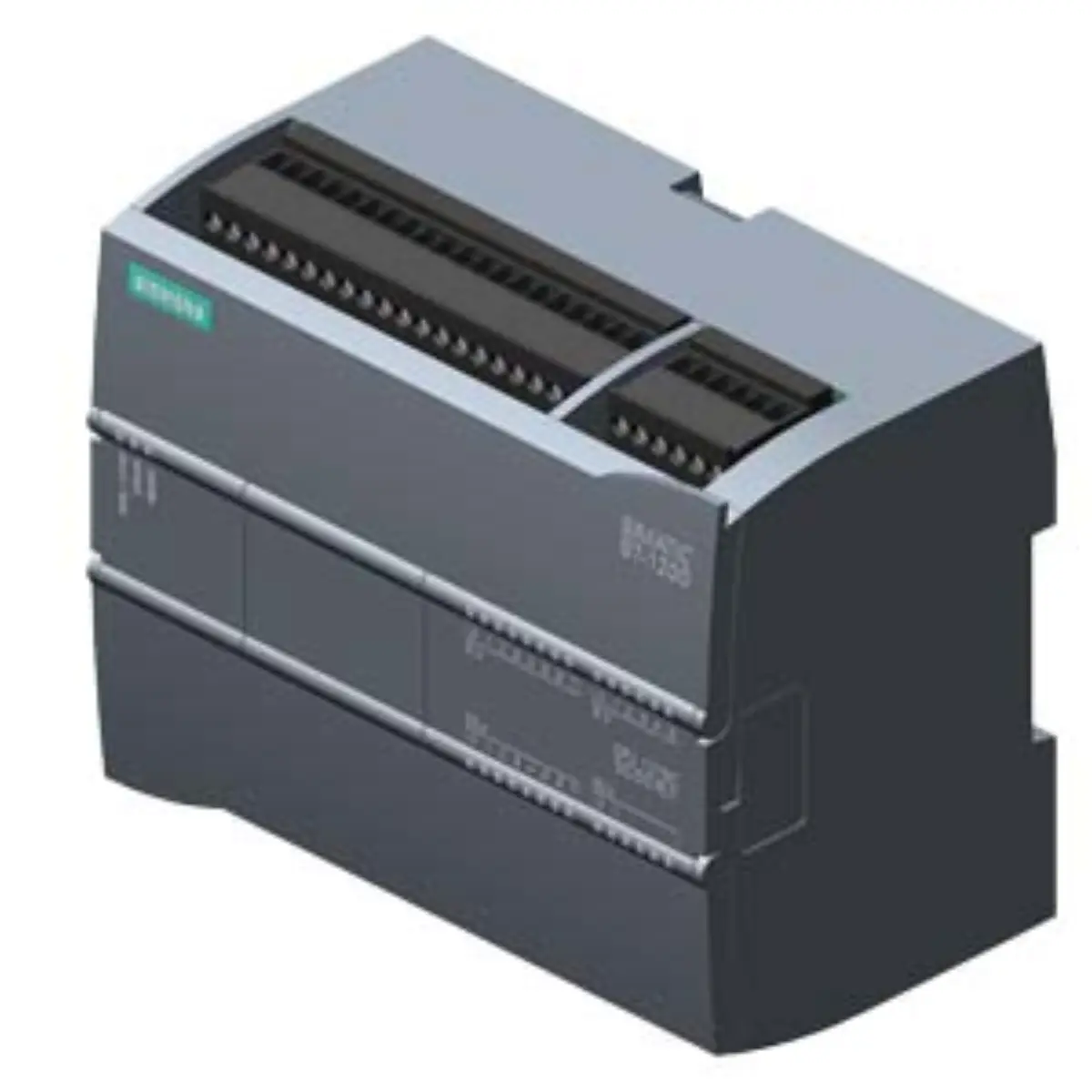

Inquiry for Siemens 6AG1215-1HG40-4XB0 SIPLUS S7-1200 Controller

Part number

6AG1215-1HG40-4XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

13.5 x 11.00 x 8.00 cm

Net weight

0.466 Kg

Source category

SIPLUS CPU 1215C

• Power supply requirements specify a DC voltage range between 20.4 and 28.8 volts for stable operation. Keep dimensions 13.5 x 11.00 x 8.00 cm and net weight 0.466 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs include fourteen channels configured for 24 volt DC signal processing and monitoring tasks.
• Digital output capabilities consist of ten relay contacts rated at 2 amperes each for load switching.
• Analog input functionality provides two channels accepting signals within the 0 to 10 volt DC range.
• Analog output configuration includes two channels delivering current signals ranging from 0 to 20 milliamps DC.
• Program and data memory capacity is recorded at 125 kilobytes for storing application logic and variables.

• The part number 6AG1215-1HG40-4XB0 identifies this specific variant within the SIPLUS standard CPU family. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is derived from the base 6ES7215-1HG40-0XB0 component with added environmental protections.
• The product class indicates it is a review-restricted item requiring direct contact with designated review contacts.
• Lifecycle status is listed as an active product within the manufacturer's current portfolio offerings.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.5 centimeters in width by 11.00 centimeters in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1215-1HG40-4XB0 record before publication.
• The height measurement stands at 8.00 centimeters, allowing for compact mounting in control cabinets.
• Net weight is specified at 0.466 kilograms, facilitating easy handling during installation procedures.
• Two PROFINET ports are integrated for network communication and integration into industrial Ethernet structures.
• Conformal coating application provides additional safeguarding for electronic components against moisture and contaminants.

• Visual inspection should confirm the presence of the Siemens branding and model labeling clearly.
• Check that the terminal blocks appear intact without visible signs of physical damage or wear.
• Verify the status LED indicators are present and positioned correctly on the front panel face.
• Ensure the DIN rail mounting clip is secure and undamaged for proper cabinet installation.

• Prepare project documentation detailing the required operating environment and temperature ranges for the application.
• List specific I/O requirements to verify alignment with the onboard digital and analog channels.
• Confirm network topology needs to ensure PROFINET connectivity meets the system integration standards.
• Gather any existing schematics or layout plans to assist in evaluating physical space constraints.

• Source parameter review confirms the technical specifications match the published product data sheet details.
• Model identification verification ensures the correct variant is selected for the intended industrial use case.
• Image review notes guide visual confirmation of physical attributes during the initial assessment phase.
• Inquiry preparation steps help streamline the submission process for accurate technical and logistical support.
