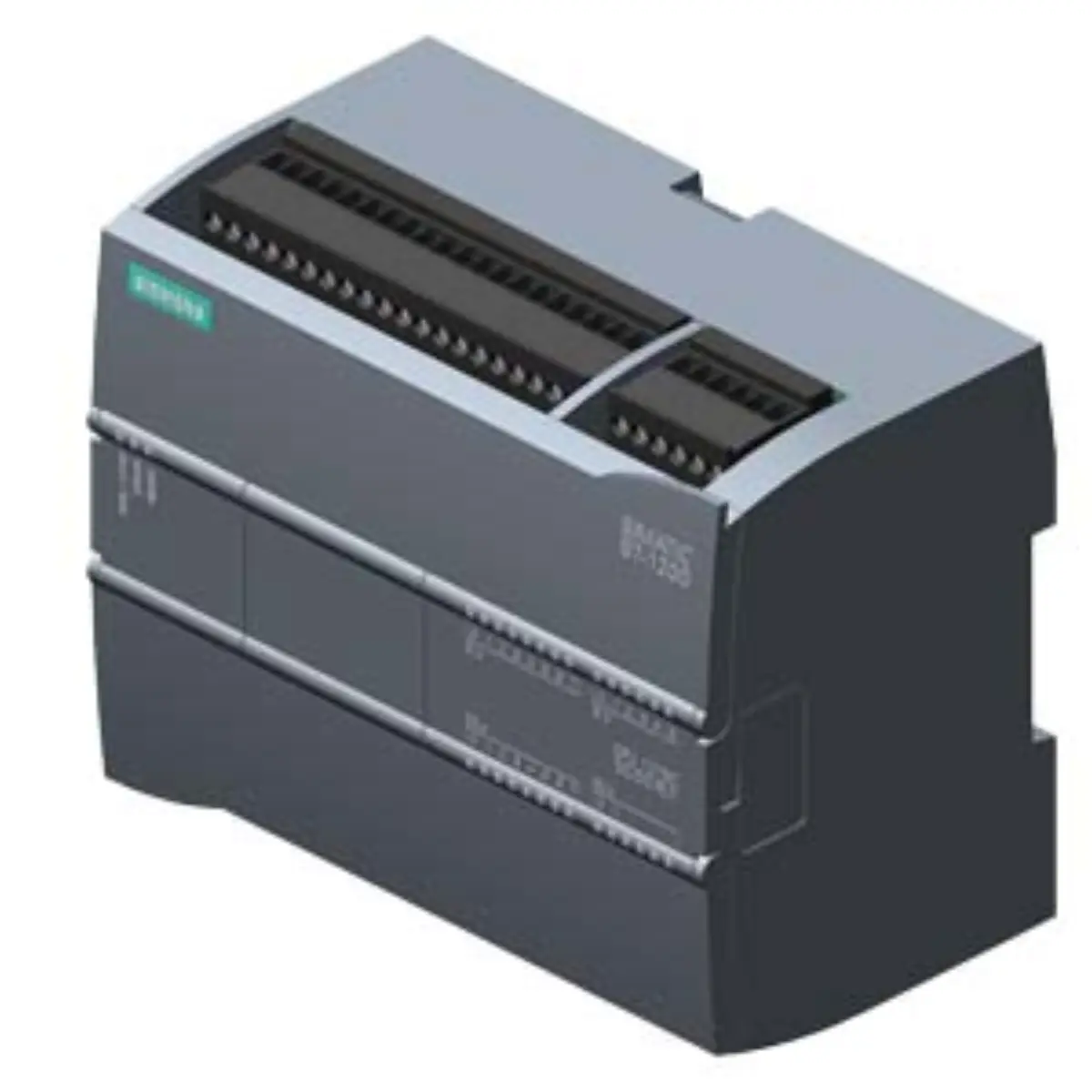

6AG1215-1HG40-2XB0 Industrial Automation Component

Part number

6AG1215-1HG40-2XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

13.5 x 11.00 x 8.00 cm

Net weight

0.472 Kg

Source category

SIPLUS CPU 1215C

• Operating temperature range spans from minus forty degrees Celsius to plus seventy degrees Celsius for continuous function. Keep dimensions 13.5 x 11.00 x 8.00 cm and net weight 0.472 Kg unchanged while comparing project documents and product image evidence.
• Startup capability is maintained at temperatures as low as minus twenty-five degrees Celsius during initial power cycles.
• The compact CPU integrates two PROFINET ports for network communication within automated control architectures.
• Onboard digital inputs include fourteen points rated for twenty-four volt direct current signal processing.
• Relay outputs provide ten digital connections capable of switching loads up to two amperes each.
• Analog input channels support two points receiving zero to ten volt signals for precise measurement tasks.

• Part number 6AG1215-1HG40-2XB0 identifies the SIPLUS variant based on the standard 6ES7215-1HG40-0XB0 platform. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The suffix indicates specialized environmental hardening compared to standard S7-1200 series components.
• Configuration includes zero signal boards attached at the factory for this specific hardware revision.
• Power supply requirements specify a direct current range between twenty point four and twenty-eight point eight volts.

Parameters are factual source fields retained for model review.

• Program and data memory capacity is recorded at one hundred twenty-five kilobytes for storage needs.
• Physical dimensions are listed as thirteen point five by eleven point zero by eight point zero centimeters.
• Net weight of the unit is documented at zero point four seven two kilograms for logistics planning.
• Analog output functionality provides two channels delivering zero to twenty milliampere direct current signals.
• Conformal coating application protects internal circuitry from moisture, dust, and corrosive atmospheric elements effectively.

• Visual inspection should confirm the presence of dual PROFINET interface connectors on the front panel.
• Check terminal blocks for correct labeling corresponding to digital input and relay output sections.
• Verify the model plate displays the full alphanumeric code matching the six AG one two one five sequence.
• Ensure the housing shows no physical damage that could compromise the integrity of the protective coating.

• Review project documentation to confirm the extended temperature range meets specific site environmental requirements.
• Verify power supply specifications align with the twenty-four volt direct current operating parameters listed.
• Assess memory allocation needs against the one hundred twenty-five kilobyte limit for program storage.
• Confirm network topology supports PROFINET communication protocols for integration with existing control systems.

• Cross-reference the part number with documented Siemens documentation to validate technical specifications accurately.
• Evaluate the necessity of conformal coating based on the specific contamination levels present in the installation area.
• Consider the impact of the extended operating temperature range on overall system longevity and maintenance schedules.
• Document all physical dimensions and weights for rack mounting and spatial planning purposes before submission.
