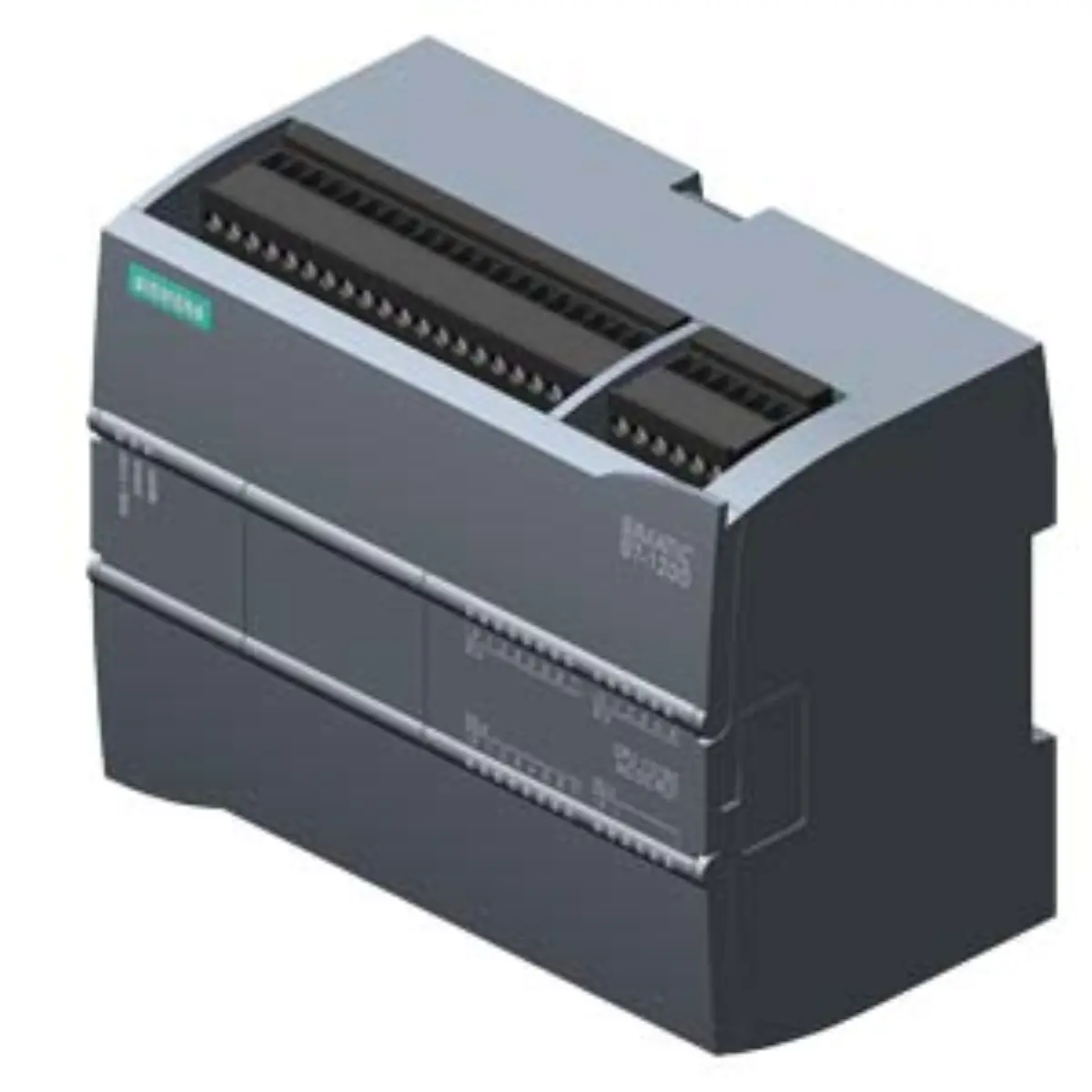

6AG1215-1BG40-5XB0 SIPLUS S7-1200 CPU Inquiry

Part number

6AG1215-1BG40-5XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

13.9 x 11.6 x 8.9 cm

Net weight

0.523 Kg

Source category

SIPLUS CPU 1215C

• Operating temperature range extends from minus forty to plus sixty degrees Celsius for continuous operation. Keep dimensions 13.9 x 11.6 x 8.9 cm and net weight 0.523 Kg unchanged while comparing project documents and product image evidence.
• Startup capability is maintained down to minus twenty-five degrees Celsius under specific conditions.
• Onboard I/O configuration includes fourteen digital inputs rated at twenty-four volts DC.
• Ten digital outputs utilize relay technology capable of switching loads up to two amperes.
• Two analog inputs accept voltage signals within the zero to ten volts DC range.
• Program and data memory capacity is recorded at one hundred twenty-five kilobytes for storage.

• The part number 6AG1215-1BG40-5XB0 identifies this specific variant within the SIPLUS standard line. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is derived from the base model 6ES7215-1BG40-0XB0 with added protective coatings.
• The suffix indicates compliance with extended environmental standards for harsh industrial environments.
• Review the submitted model number to ensure alignment with project specification documents.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as thirteen point nine by eleven point six by eight point nine centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1215-1BG40-5XB0 record before publication.
• Net weight is recorded at zero point five two three kilograms for logistics planning.
• Power supply requirements specify AC input within the eighty-five to two-sixty-four volt range.
• Frequency tolerance for the AC power source is defined between forty-seven and sixty-three hertz.
• Memory allocation includes both program storage and working data areas totaling one hundred twenty-five kilobytes.

• Visual inspection should confirm the presence of conformal coating on the internal circuitry. Review Siemens 6AG1215-1BG40-5XB0 as PLC CPUs & Controllers with source category SIPLUS CPU 1215C, recorded lifecycle Active Product, and submitted model identity.
• Check label clarity for the full part number and Siemens branding identification marks.
• Verify terminal block connections for digital and analog I/O ports are intact.
• Ensure PROFINET ports are visible and undamaged for network connectivity assessment purposes.

• Prepare project documentation detailing required operating temperatures and environmental exposure levels. Keep dimensions 13.9 x 11.6 x 8.9 cm and net weight 0.523 Kg unchanged while comparing project documents and product image evidence.
• List specific I/O points needed for the control application to verify capacity.
• Confirm power supply characteristics match the AC voltage and frequency specifications provided.
• Include any special mounting or enclosure requirements for the compact CPU form factor.

• Source parameter review confirms the technical specifications align with the published datasheet.
• Project document review should verify that the extended temperature range meets site needs.
• Class B classification indicates review restrictions apply per manufacturer contact guidelines.
• Final validation requires cross-referencing all electrical and mechanical data before submission.
