Inquiry for Siemens 6AG1215-1BG40-4XB0 SIPLUS CPU 1215C

Part number

6AG1215-1BG40-4XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

13.5 x 11.00 x 8.00 cm

Net weight

0.511 Kg

Source category

SIPLUS CPU 1215C

• Power supply accepts AC voltage between 85 and 264 volts at frequencies ranging from 47 to 63 hertz. Keep dimensions 13.5 x 11.00 x 8.00 cm and net weight 0.511 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs include fourteen channels rated for 24 volt DC signal processing for standard sensor integration.
• Ten digital outputs utilize relay technology capable of switching loads up to two amperes for direct control tasks.
• Two analog input channels support signals from zero to ten volts DC for precise measurement acquisition applications.
• Two analog output channels deliver current signals ranging from zero to twenty milliamps for actuator control needs.
• Program and data memory capacity totals one hundred twenty-five kilobytes for storing logic and process variables efficiently.

• The part number 6AG1215-1BG40-4XB0 identifies this specific variant within the broader SIPLUS standard CPU family structure.
• This model is based on the underlying 6ES7215-1BG40-0XB0 hardware platform but includes specialized environmental protections.
• The suffix indicates the inclusion of conformal coating which safeguards internal circuitry against moisture and contaminants.
• Lifecycle status is recorded as an active product, ensuring continued technical documentation and support review details.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as thirteen point five by eleven point zero by eight point zero centimeters.
• Net weight is documented at zero point five one one kilograms for logistical planning and mounting considerations.
• Category classification places this device under PLC CPUs and Controllers within the broader automation technology portfolio.
• Source path indicates origin from SIPLUS standard CPUs specifically categorized under the SIPLUS CPU 1215C series.
• Product class designation notes review restrictions, advising direct contact with designated Siemens review contacts for handling procedures.

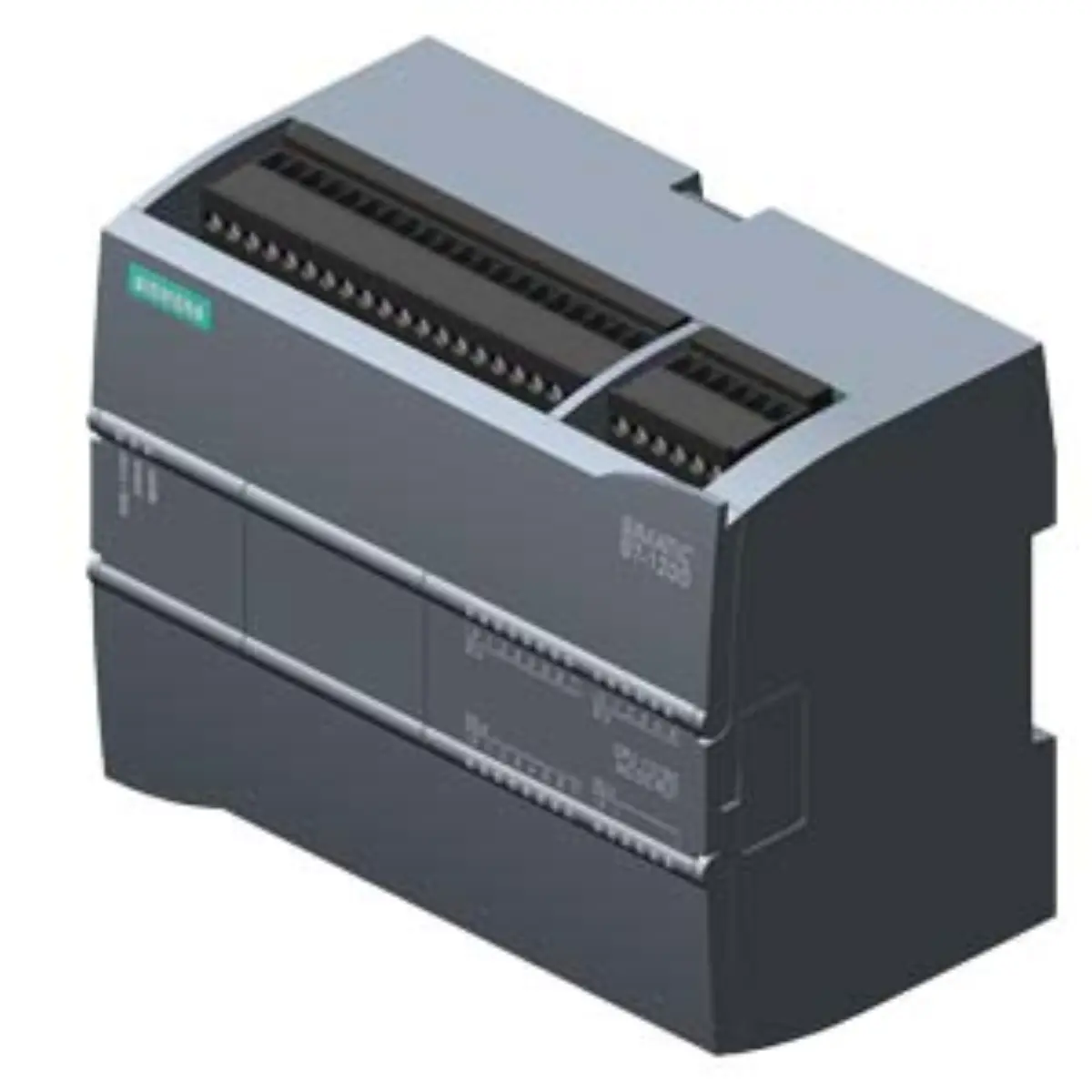

• Visual inspection should confirm the presence of terminal blocks for power and I/O connections on the front.
• Check labeling clarity to ensure the full part number 6AG1215-1BG40-4XB0 is legible on the nameplate.
• Verify physical condition of the housing to ensure no damage affects the conformal coating integrity.
• Confirm LED indicators are visible and intact for operational status monitoring during installation and testing phases.

• Review project documentation to verify that the extended temperature range meets your specific environmental operating conditions.
• Confirm power supply specifications align with the 85-264 V AC requirement for proper system integration.
• Assess I/O count requirements to ensure fourteen digital inputs and ten relay outputs suffice for your application.
• Prepare technical questions regarding the review restricted product class for clarification during the submission process.

• All technical parameters are derived directly from the manufacturer's published specification sheet for accuracy.
• Users are advised to cross-reference these details with their specific engineering requirements before proceeding.
• The inquiry process allows for detailed discussion of technical constraints and integration challenges with experts.
• Final validation of product suitability rests with the end-user based on their unique operational context.
