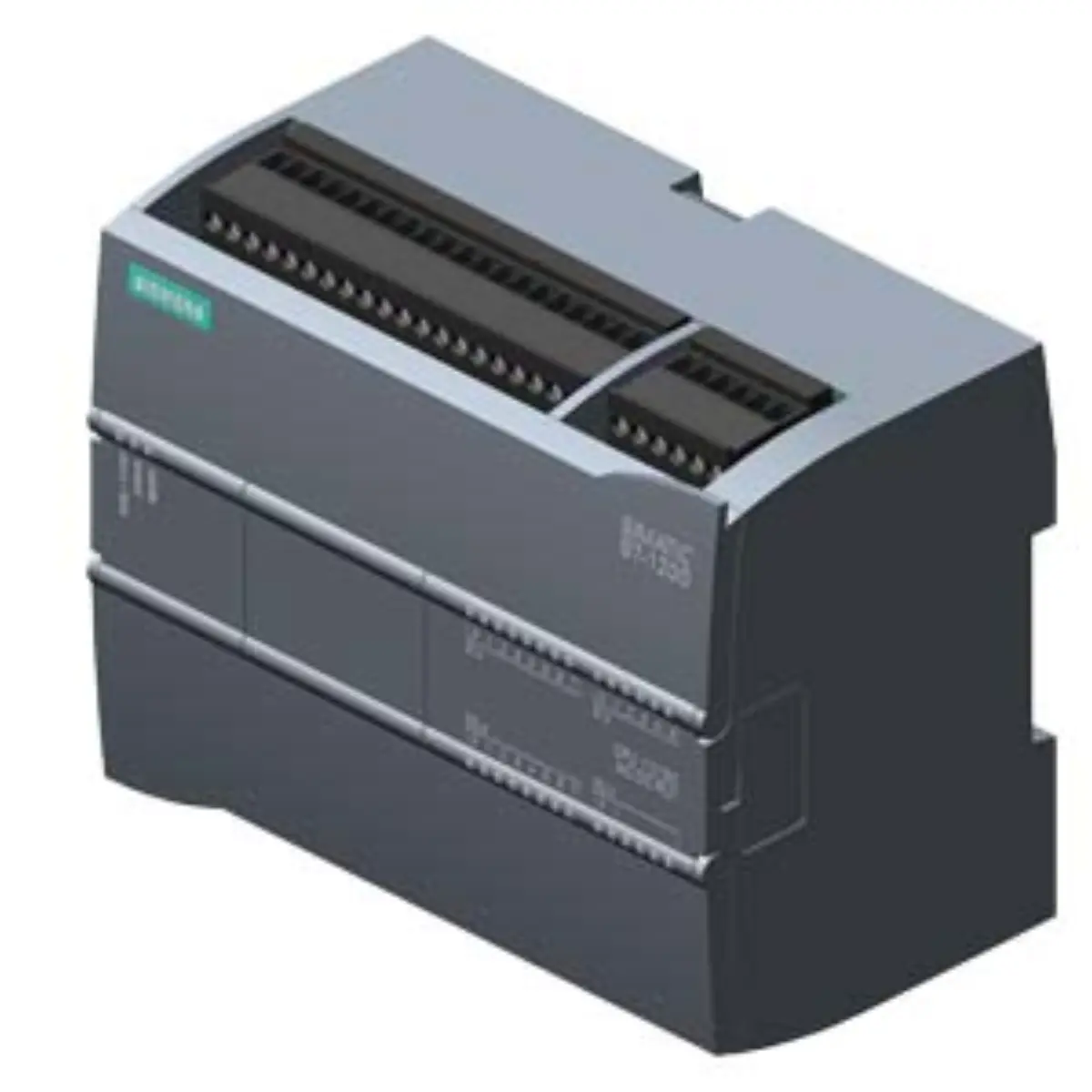

6AG1215-1BG40-2XB0 SIPLUS S7-1200 CPU Inquiry

Part number

6AG1215-1BG40-2XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

3.5 x 11.00 x 8.00 cm

Net weight

0.525 Kg

Source category

SIPLUS CPU 1215C

• Operating range extends from -40°C to +70°C with startup capability at -25°C for extreme environments. Keep dimensions 3.5 x 11.00 x 8.00 cm and net weight 0.525 Kg unchanged while comparing project documents and product image evidence.
• Power supply accepts AC voltage between 85-264 V AC at frequencies of 47-63 Hz reliably.
• Onboard I/O includes fourteen 24 V DC digital inputs and ten relay outputs rated at 2 A.
• Analog capabilities feature two inputs measuring 0-10 V DC and two outputs ranging 0-20 mA DC.
• Program and data memory capacity is recorded at 125 KB for storing control logic and variables.
• Physical dimensions measure 3.5 x 11.00 x 8.00 cm with a net weight of 0.525 Kg.

• Base model reference is 6ES7215-1BG40-0XB0 with added environmental protection features for industrial use. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification indicates active lifecycle status within the Siemens automation technology portfolio structure.
• Category placement falls under SIPLUS standard CPUs specifically within the SIPLUS CPU 1215C series group.
• review restriction class B applies, requiring direct contact with designated Siemens review contacts for handling.

Parameters are factual source fields retained for model review.

• Verify the AC power input range matches your facility's electrical supply specifications before submission.
• Confirm that the -40°C lower operating limit meets your specific site environmental requirements accurately.
• Check the 125 KB memory allocation against your program size needs for adequate headroom.
• Review the relay output current rating of 2 A to ensure load application context with devices.
• Assess the two PROFINET ports for sufficient network interface points in your control architecture.

• Inspect the physical labeling on the device front panel to confirm the full part number.
• Examine the terminal block connections for any visible signs of damage or corrosion prior to use.
• Check the conformal coating integrity on the circuit board if internal inspection is permitted safely.
• Verify the mounting rail application context based on the compact CPU dimensions provided in specifications.

• Gather your facility's power supply voltage and frequency details to match the AC input specs.
• Document the ambient temperature ranges expected in the installation area to validate operational limits.
• List the required digital and analog I/O points to ensure onboard capacity meets project needs.
• Prepare any specific network topology requirements involving PROFINET for discussion during the inquiry process.

• Ensure all technical parameters align with your engineering specifications before finalizing the inquiry request.
• Note the review restriction class B when planning logistics and handling procedures for the unit.
• Cross-reference the memory size and I/O counts with your application logic requirements thoroughly.
• Confirm the extended temperature ratings are necessary for your specific operational environment conditions.
