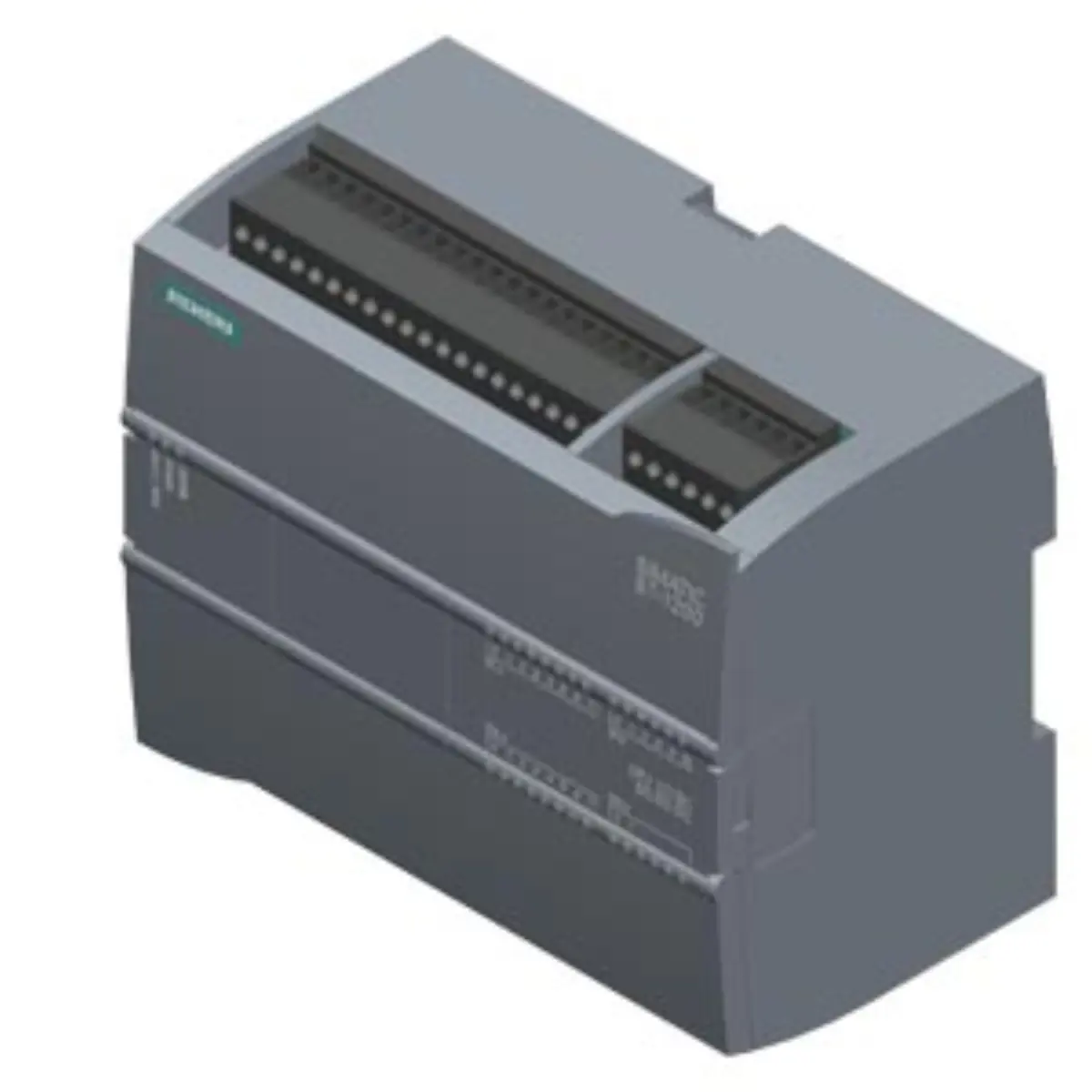

Inquiry for Siemens 6AG1215-1AG40-2XB0 SIPLUS S7-1200 CPU

Part number

6AG1215-1AG40-2XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

13.5 x 11.5 x 8.5 cm

Net weight

0.446 Kg

Source category

SIPLUS CPU 1215C

• Power supply requirements are specified as DC 20.4-28.8 V DC for stable operation. Keep dimensions 13.5 x 11.5 x 8.5 cm and net weight 0.446 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs include 14 DI points rated at 24 V DC for sensor integration.
• Digital outputs consist of 10 DQ points providing 0.5 A current capacity per channel.
• Analog input channels offer 2 AI points supporting signals from 0-10 V DC sources.
• Analog output functionality includes 2 AQ points capable of delivering 0-20 mA DC signals.
• Program and data memory capacity is recorded at 125 KB for application storage needs.

• The base model reference is 6ES7215-1AG40-0XB0 with specific SIPLUS enhancements applied. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Conformal coating is a key differentiator for environmental resistance in this specific variant.
• Extended temperature range allows operation from -40 to +70 °C continuously.
• Startup capability is supported down to -25 °C for cold environment initialization.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 13.5 x 11.5 x 8.5 cm for space planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1215-1AG40-2XB0 record before publication.
• Net weight is recorded at 0.446 Kg for logistics and mounting considerations.
• Two PROFINET ports are integrated for network communication and device connectivity.
• Signal board configuration is noted as zero, indicating no additional expansion slots.
• Product class indicates review restrictions requiring direct contact with designated review contacts.

• Visual inspection should confirm the presence of conformal coating on circuit boards. Review Siemens 6AG1215-1AG40-2XB0 as PLC CPUs & Controllers with source category SIPLUS CPU 1215C, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number 6AG1215-1AG40-2XB0 for verification.
• Connector types should match DC/DC/DC specifications for power and signal lines.
• Physical condition checks should verify integrity of the compact CPU housing structure.

• Review project documentation to ensure temperature ranges meet operational environment requirements. Keep dimensions 13.5 x 11.5 x 8.5 cm and net weight 0.446 Kg unchanged while comparing project documents and product image evidence.
• Verify power supply specifications align with the 20.4-28.8 V DC input range.
• Check I/O counts against control logic to confirm onboard capacity sufficiency.
• Confirm network topology supports the two integrated PROFINET port connections.

• Ensure all technical parameters are cross-referenced with final engineering design documents.
• Validate that environmental ratings match the specific installation site conditions accurately.
• Confirm that memory allocation meets the complexity of the intended control program.
• Review review notes and contact procedures before initiating formal inquiry preparation discussions.
