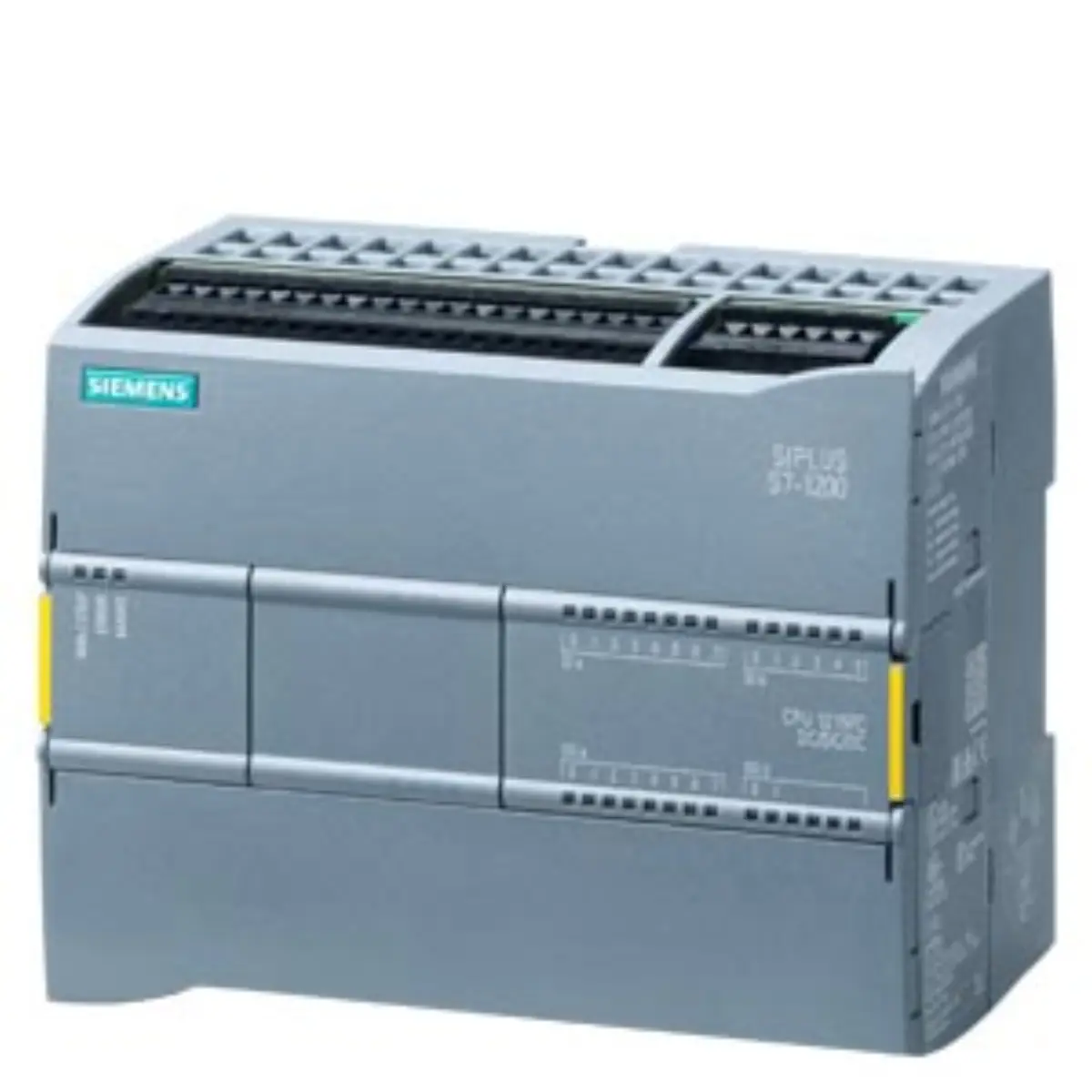

Inquiry for Siemens 6AG1215-1AF40-5XB0 SIPLUS S7-1200 Fail-Safe CPU

Part number

6AG1215-1AF40-5XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

13.5 x 11.5 x 8.5 cm

Net weight

0.467 Kg

Source category

SIPLUS fail-safe CPUs

• Power supply requirements specify a DC voltage range between 20.4 and 28.8 volts for stable operation. Keep dimensions 13.5 x 11.5 x 8.5 cm and net weight 0.467 Kg unchanged while comparing project documents and product image evidence.
• Digital input capacity includes fourteen channels rated for 24 volt DC signaling levels.
• Digital output configuration provides ten channels capable of switching loads at 24 volt DC.
• Analog input section supports two channels measuring voltage signals within the zero to ten volt range.
• Analog output capability allows for two channels controlling current signals up to twenty milliamps DC.
• Program and data memory allocation totals one hundred fifty kilobytes for application storage needs.

• The part number 6AG1215-1AF40-5XB0 identifies this specific variant within the broader Siemens automation portfolio. Use the source path Automation technology / SIPLUS central processing units / SIPLUS fail-safe CPUs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is classified as a fail-safe CPU, indicating enhanced safety functionality integration.
• It belongs to the SIPLUS family, which denotes extended environmental protection features.
• The base architecture derives from the 6ES7215-1AF40-0XB0 component structure for application context reference.

Parameters are factual source fields retained for model review.

• Operating temperature range extends from minus twenty-five degrees Celsius to plus fifty-five degrees Celsius. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1215-1AF40-5XB0 record before publication.
• Physical dimensions are recorded as thirteen point five by eleven point five by eight point five centimeters.
• Net weight is listed at zero point four six seven kilograms for logistics planning purposes.
• Lifecycle status is currently designated as an active product for ongoing project consideration.
• Product class indicates review restrictions requiring direct contact with designated Siemens representatives.

• Visual inspection should confirm the presence of the conformal coating on internal circuitry. Review Siemens 6AG1215-1AF40-5XB0 as PLC CPUs & Controllers with source category SIPLUS fail-safe CPUs, recorded lifecycle Active Product, and submitted model identity.
• Label verification ensures the part number matches the submitted inquiry documentation accurately.
• Port configuration shows two distinct PROFINET interfaces for network connection capabilities.
• Terminal block arrangement reflects the specified digital and analog input/output distribution.

• Review project documentation to verify voltage requirements match the specified DC power range.
• Confirm that the operating environment falls within the stated temperature limits for reliability.
• Assess memory needs against the one hundred fifty kilobyte allocation for program storage.
• Prepare technical questions regarding the review restriction policy and contact procedures clearly.

• Source parameter review confirms the technical specifications align with the published datasheet.
• Model identification checks ensure the correct fail-safe variant is selected for safety tasks.
• Dimensional data assists in panel layout planning and enclosure selection processes effectively.
• Contact your Siemens review contacts to discuss inquiry preparation steps and review note details.
