Inquiry for Siemens 6AG1214-1HG40-2XB0 SIPLUS CPU 1214C

Part number

6AG1214-1HG40-2XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.5 x 11.00 x 8.00 cm

Net weight

0.431 Kg

Source category

SIPLUS CPU 1214C

• Power supply requirements specify a DC voltage range of 20.4 to 28.8 V DC for stable operation. Keep dimensions 11.5 x 11.00 x 8.00 cm and net weight 0.431 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs consist of 14 points operating at 24 V DC for sensor connectivity.
• Digital outputs include 10 relay contacts rated at 2 A each for switching loads directly.
• Analog input capability provides 2 channels measuring 0-10 V DC for precise signal processing.
• Program and data memory capacity is recorded at 100 KB for application storage needs.
• Operating temperature range extends from -40 to +70 °C with startup capability down to -25 °C.

• The part number 6AG1214-1HG40-2XB0 identifies this specific SIPLUS variant of the CPU 1214C. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1214C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is derived from the base model 6ES7214-1HG40-0XB0 with added environmental protection features.
• The suffix indicates DC/DC/relay configuration, defining the power supply and output types.
• Signal board count is listed as zero, indicating no additional expansion boards are included.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 11.5 x 11.00 x 8.00 cm for space planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1214-1HG40-2XB0 record before publication.
• Net weight is specified at 0.431 Kg for logistics and mounting considerations.
• Lifecycle status is noted as Active Product, confirming current manufacturing and support status.
• Category classification places this unit under Automation technology and SIPLUS standard CPUs.
• Product type is defined as PLC CPUs & Controllers within the industrial portfolio.

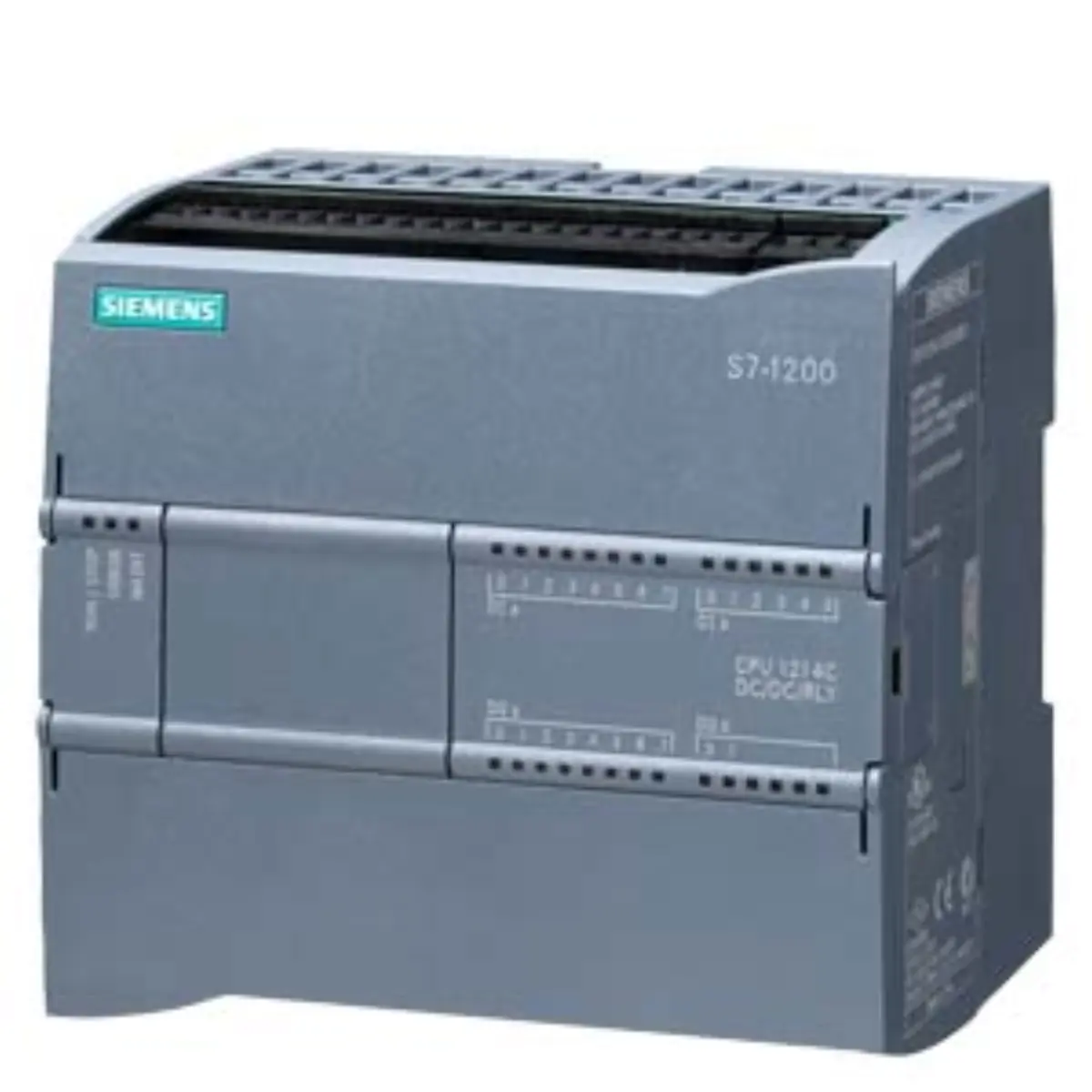

• Front view displays the terminal blocks for digital and analog I/O connections clearly. Review Siemens 6AG1214-1HG40-2XB0 as PLC CPUs & Controllers with source category SIPLUS CPU 1214C, recorded lifecycle Active Product, and submitted model identity.
• Side profile shows the compact form factor listed for DIN rail mounting applications.
• Label area confirms the full part number and Siemens branding for identification purposes.
• Connector details illustrate the relay output terminals and DC power input specifications.

• Verify the required voltage range matches your facility's DC power supply infrastructure.
• Check if the onboard I/O counts meet your specific control logic requirements.
• Confirm that the extended temperature rating aligns with your installation environment conditions.
• Review project documentation to ensure the 100 KB memory suffices for your program.

• Source parameter review should confirm the conformal coating meets your corrosion standards.
• Project document review must validate the relay output capacity for your load types.
• Technical specification check ensures the -40 °C lower limit fits your site needs.
• Model verification confirms the 6AG1214-1HG40-2XB0 designation matches your engineering bill of materials.
