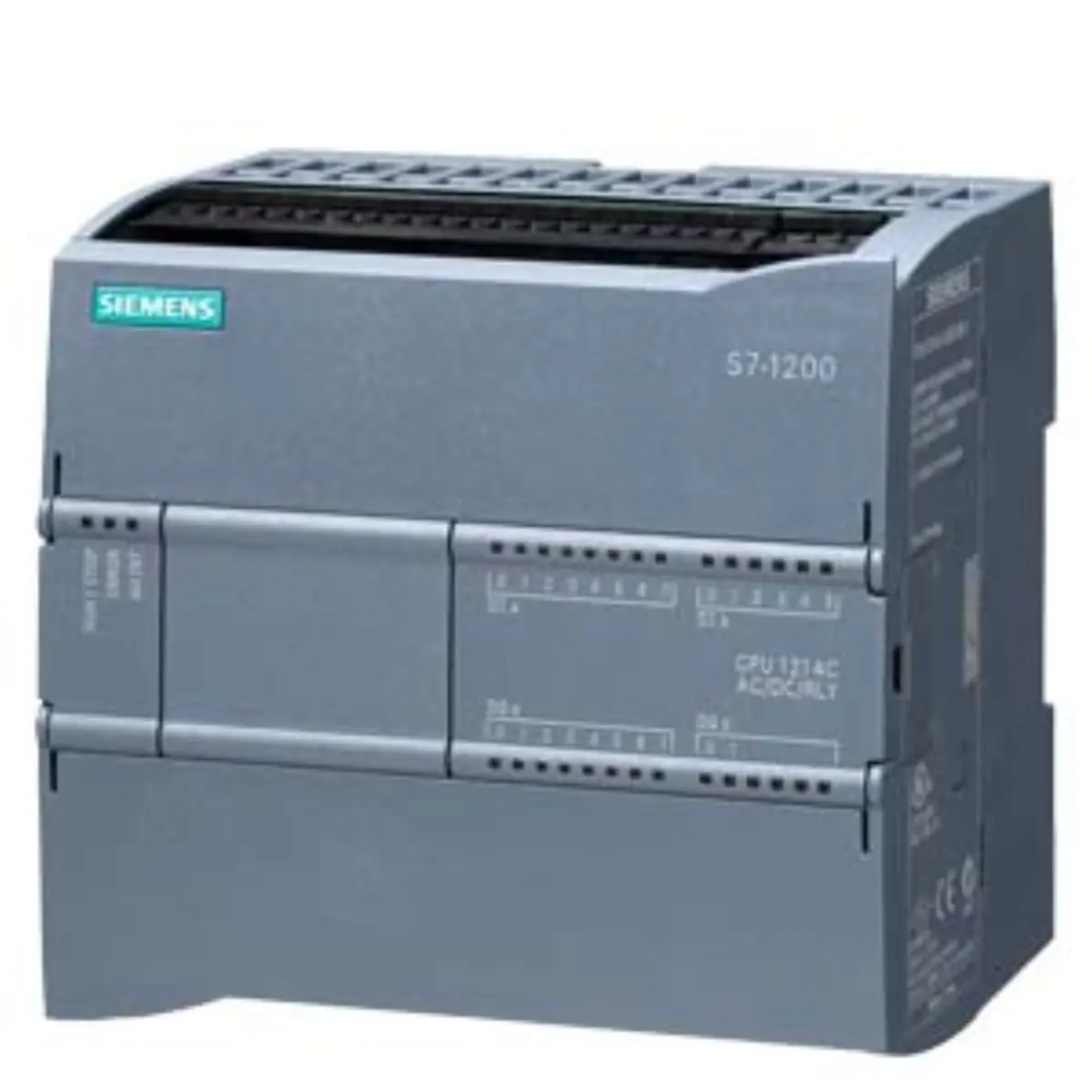

Inquiry: Siemens 6AG1214-1BG40-5XB0 SIPLUS CPU 1214C

Part number

6AG1214-1BG40-5XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.5 x 11.00 x 8.00 cm

Net weight

0.46 Kg

Source category

SIPLUS CPU 1214C

• Power supply accepts AC voltage between 85 and 264 volts at frequencies of 47 to 63 hertz. Keep dimensions 11.5 x 11.00 x 8.00 cm and net weight 0.46 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs consist of 14 channels operating at 24 volts DC for signal detection.
• Digital outputs include 10 relay channels capable of switching loads up to 2 amperes each.
• Analog input functionality is provided via two channels supporting voltage signals from 0 to 10 volts DC.
• Program and data memory capacity is recorded as 100 kilobytes for storing application logic and variables.
• Physical dimensions are listed as 11.5 by 11.00 by 8.00 centimeters with a net weight of 0.46 kilograms.

• The part number 6AG1214-1BG40-5XB0 identifies this specific variant within the SIPLUS standard CPU family. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1214C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is based on the standard S7-1200 CPU 1214C architecture with added environmental protections.
• The suffix 5XB0 indicates the inclusion of conformal coating and extended temperature rating specifications.
• Lifecycle status is recorded as an active product within the manufacturer's current portfolio listings.

Parameters are factual source fields retained for model review.

• Startup temperature capability is specified down to -25 degrees Celsius for initial system activation.
• Operating temperature range extends from -40 degrees Celsius up to +60 degrees Celsius continuously.
• Relay output type allows for switching both AC and DC loads without additional interface modules.
• Memory size of 100 KB supports moderate complexity control programs for standard automation tasks.
• Compact form factor enables installation in space-constrained control cabinets or terminal boxes easily.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components.
• Labeling must clearly display the full part number 6AG1214-1BG40-5XB0 for accurate identification.
• Terminal blocks should appear intact with no visible signs of physical damage or corrosion.
• Status LEDs must be present and unobstructed to allow for operational monitoring during testing.

• Review project documentation to verify power supply voltage matches the 85-264 V AC requirement.
• Confirm that the required number of digital and analog I/O points meets system needs.
• Check environmental conditions to ensure temperatures remain within the -40 to +60 C range.
• Prepare technical questions regarding mounting orientation and cable connection specifications for the relay outputs.

• Verify the product class designation B which indicates review restrictions per manufacturer guidelines.
• Ensure all technical parameters align with the specific demands of the intended application.
• Contact designated support channels for clarification on inquiry preparation procedures and handling requirements.
• Document any special storage or handling instructions required due to the conformal coating feature.
