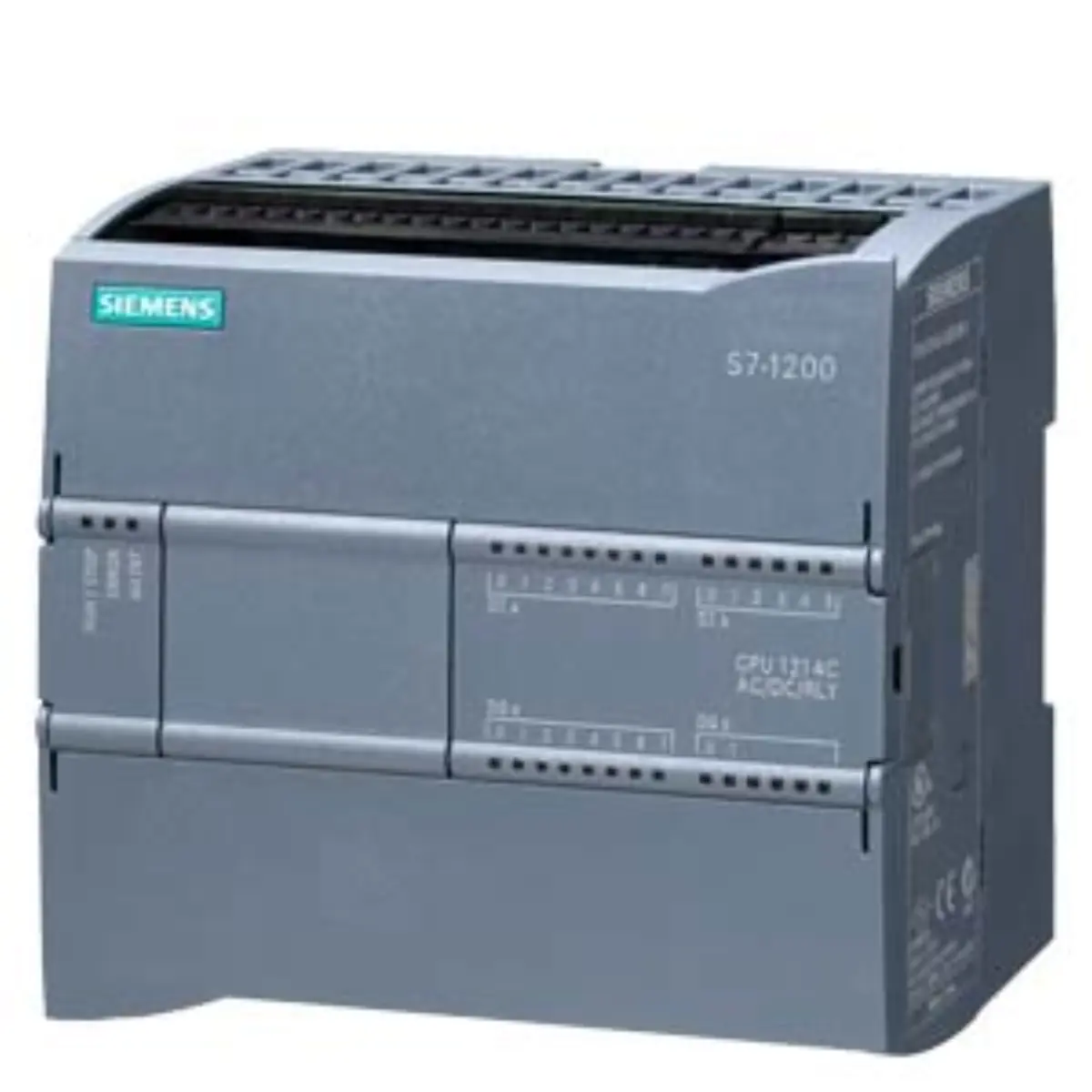

Inquiry for Siemens 6AG1214-1BG40-4XB0 SIPLUS CPU 1214C

Part number

6AG1214-1BG40-4XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.5 x 11.00 x 8.00 cm

Net weight

0.464 Kg

Source category

SIPLUS CPU 1214C

• Power supply accepts AC voltage ranging from 85 to 264 volts at frequencies between 47 and 63 hertz for stable operation.
• The device includes 14 digital inputs operating at 24 volts DC, allowing connection to standard field sensors and switches.
• Ten digital outputs utilize relay technology capable of switching loads up to 2 amperes for direct control of actuators.
• Two analog inputs support signals from 0 to 10 volts DC, enabling precise monitoring of process variables like pressure or temperature.
• Program and data memory capacity stands at 100 kilobytes, sufficient for storing complex logic sequences and operational data.
• Operating temperature range extends from minus 20 degrees Celsius to plus 60 degrees Celsius, ensuring reliability in extreme conditions.

• The part number 6AG1214-1BG40-4XB0 identifies this specific variant within the Siemens portfolio of programmable logic controllers.
• It belongs to the SIPLUS standard CPUs category, indicating specialized environmental adaptations beyond standard industrial specifications.
• The base model reference is 6ES7214-1BG40-0XB0, with the 4XB0 suffix denoting the addition of conformal coating.
• Lifecycle status is recorded as Active Product, confirming ongoing manufacturing and support for this hardware configuration.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 11.5 by 11.00 by 8.00 centimeters, facilitating installation in compact control cabinets.
• Net weight is recorded at 0.464 kilograms, contributing to lightweight design considerations for mounting structures.
• Conformal coating provides protection against moisture, dust, and corrosive agents, extending service life in challenging environments.
• The AC/DC/relay configuration allows flexible interfacing with both DC control circuits and AC powered load devices.
• Memory allocation supports substantial program storage, accommodating complex automation logic without immediate need for expansion cards.

• Visual inspection should confirm the presence of labeling indicating the full part number and Siemens branding.
• Check terminal blocks for integrity, ensuring no visible damage to connection points for input and output wiring.
• Verify the status LED indicators are present and undamaged, as they provide critical operational feedback during commissioning.
• Examine the housing for signs of wear or damage, particularly around the edges where conformal coating may be visible.

• Gather project requirements specifying the necessary digital and analog I/O counts to ensure adequate capacity for your application.
• Confirm power supply specifications match the 85-264 V AC input range to prevent application context issues during installation.
• Document environmental conditions such as temperature extremes or exposure to chemicals to justify the need for SIPLUS features.
• Prepare technical drawings showing mounting space constraints to verify that the 11.5 cm width fits within your panel layout.

• Ensure all technical parameters align with your specific engineering requirements before submitting the inquiry form.
• Cross-reference the onboard I/O configuration with your bill of materials to avoid unnecessary module additions.
• Verify that the extended temperature range meets the operational needs of your facility's physical environment.
• Contact your designated Siemens review contacts for further clarification on product class B restrictions and handling procedures.
