Siemens 6AG1214-1AG40-4XB0 SIPLUS CPU Inquiry

Part number

6AG1214-1AG40-4XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.5 x 11.00 x 8.00 cm

Net weight

0.397 Kg

Source category

SIPLUS CPU 1214C

• Power supply requirements specify a DC voltage range of 20.4 to 28.8 V DC for stable operation. Keep dimensions 11.5 x 11.00 x 8.00 cm and net weight 0.397 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs include fourteen channels rated at 24 V DC for sensor connectivity.
• Digital outputs consist of ten channels providing 24 V DC switching capability for actuators.
• Two analog inputs support signals ranging from 0 to 10 V DC for precise measurement.
• Program and data memory capacity is recorded at 100 KB for application storage needs.
• Physical dimensions are listed as 11.5 x 11.00 x 8.00 cm with a net weight of 0.397 Kg.

• The part number 6AG1214-1AG40-4XB0 identifies the specific SIPLUS variant of the S7-1200 series. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1214C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Base model reference is 6ES7214-1AG40-0XB0, indicating the standard version without environmental enhancements.
• Product classification falls under PLC CPUs & Controllers within the broader automation technology sector.
• Lifecycle status is currently active, meaning the component remains in current production and support.

Parameters are factual source fields retained for model review.

• Review the onboard I/O configuration to ensure it meets your specific control logic requirements. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1214-1AG40-4XB0 record before publication.
• Verify that the DC power supply range aligns with your facility's electrical infrastructure standards.
• Check the memory size of 100 KB against your program complexity and data logging needs.
• Confirm the operating temperature range of -20 to +60 degrees Celsius suits your environment.
• Assess the physical footprint of 11.5 x 11.00 x 8.00 cm for DIN rail mounting space.

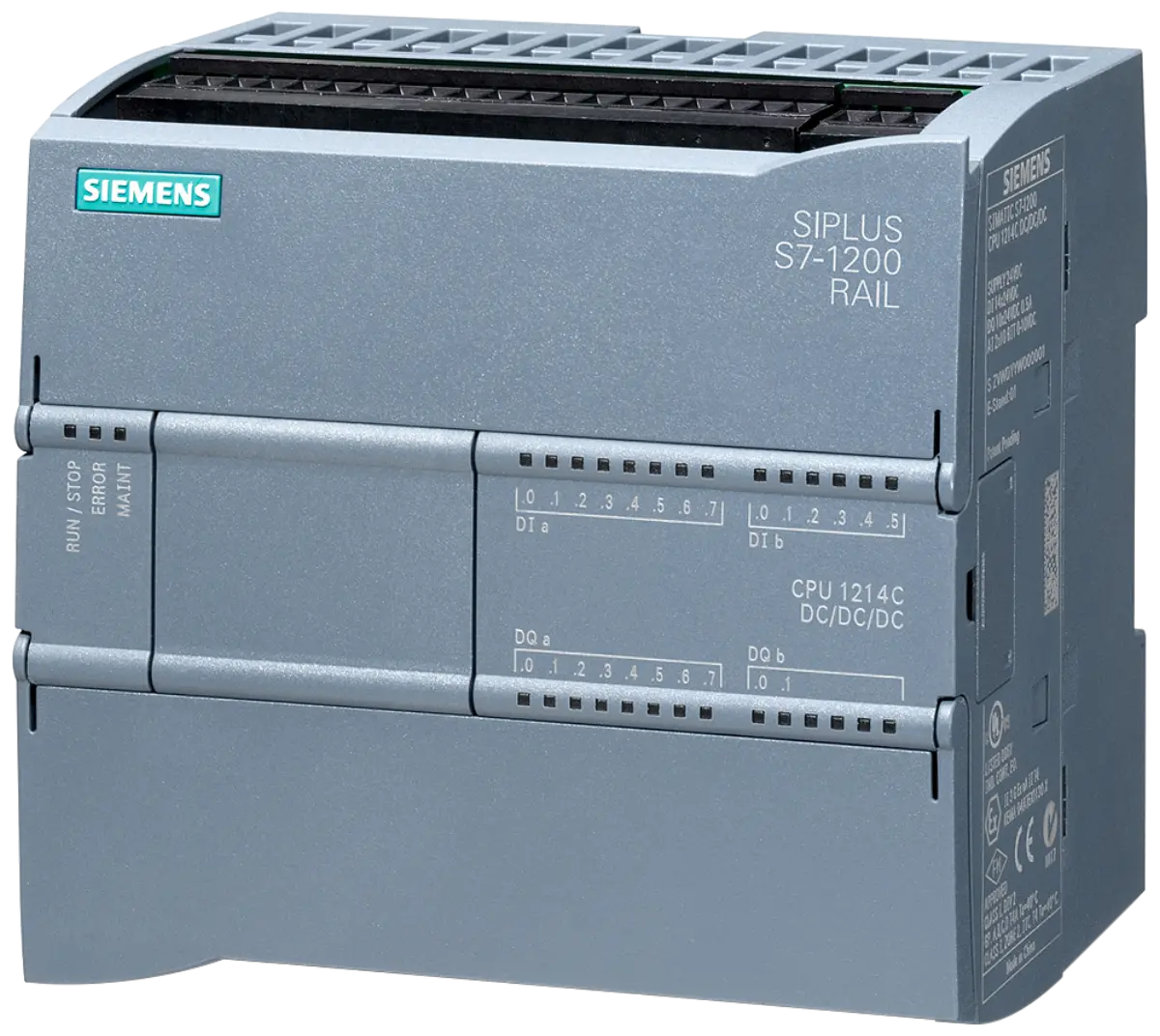

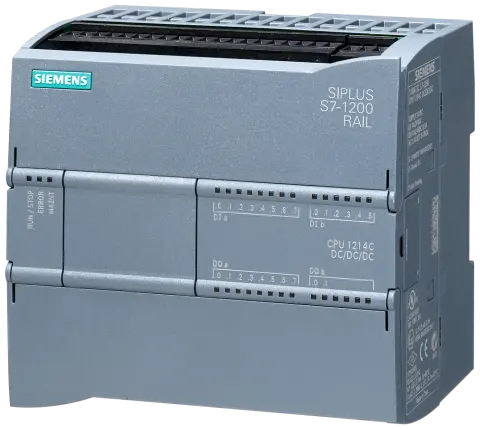

• Inspect images for the Siemens branding and the specific part number label on the unit.
• Note the compact form factor typical of the S7-1200 family of programmable logic controllers.
• Look for indicators showing the digital and analog terminal blocks on the front panel.
• Observe the overall condition and labeling consistency in any provided product photography examples.

• Prepare your project documentation specifying the required quantity and intended application environment details.
• Gather technical drawings or layout plans to verify mounting constraints and wiring connections.
• List any specific software versions or firmware requirements associated with the CPU controller.
• Define your timeline expectations for receiving the technical datasheet or further product information.

• The product class indicates review restrictions, so consult your Siemens review contacts for handling procedures.
• Ensure all technical parameters match your system design before initiating the formal inquiry process.
• Reference the source category path to confirm alignment with your specific automation technology needs.
• Double-check the normalized part number format when submitting your detailed technical request form.
