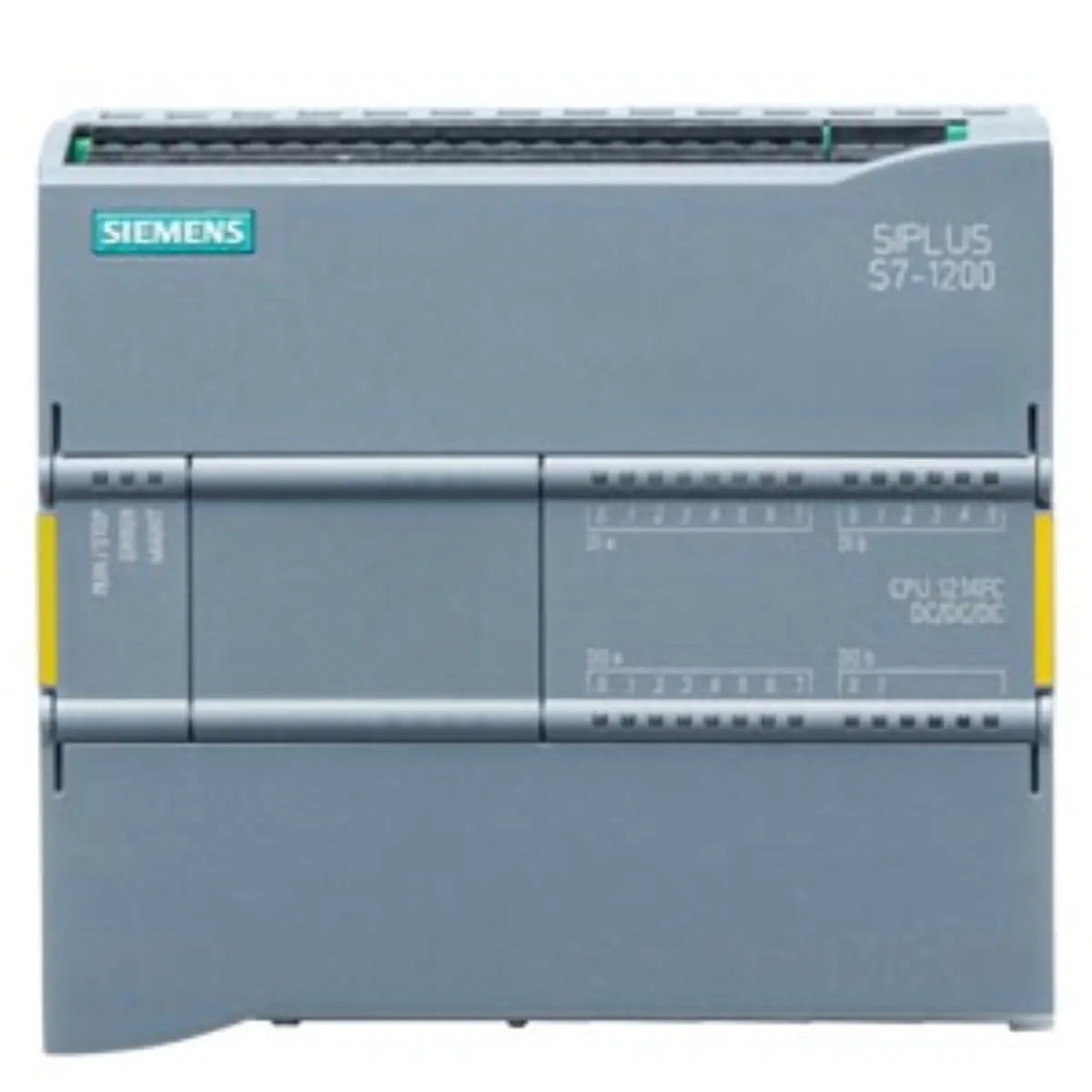

Inquiry: Siemens 6AG1214-1AF40-5XB0 SIPLUS S7-1200 CPU

Part number

6AG1214-1AF40-5XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

11.5 x 11.00 x 8.2 cm

Net weight

0.368 Kg

Source category

SIPLUS fail-safe CPUs

• Power supply requirements specify a DC voltage range between 20.4 V and 28.8 V for stable operation. Keep dimensions 11.5 x 11.00 x 8.2 cm and net weight 0.368 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs consist of fourteen channels rated for 24 V DC signal detection and processing.
• Digital output capacity includes ten channels configured for 24 V DC switching applications and control tasks.
• Analog input functionality provides two channels supporting signals ranging from 0 to 10 V DC.
• Program and data memory allocation totals 125 KB, facilitating complex logic execution and data storage needs.
• Operating temperature tolerance spans from -25 °C to +55 °C, accommodating extreme industrial climate conditions.

• The part number 6AG1214-1AF40-5XB0 identifies this unit as a fail-safe CPU within the SIPLUS family.
• This model is classified under the broader category of SIPLUS central processing units for automation technology.
• Specific designation indicates it is a compact CPU type, integrating essential I/O directly onto the main board.
• The suffix 5XB0 distinguishes this variant by its enhanced environmental protection and extended temperature rating features.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 11.5 cm in width, 11.00 cm in height, and 8.2 cm in depth.
• Net weight is listed at 0.368 Kg, contributing to manageable installation logistics within control cabinet spaces.
• Lifecycle status is documented as Active Product, indicating current manufacturing support and technical documentation review details.
• Product class B designation notes that review are restricted and require direct contact with documented channels.
• Source categorization places this item under SIPLUS fail-safe CPUs, highlighting its specialized safety-oriented design purpose.

• Visual inspection should confirm the presence of conformal coating on internal circuitry visible through housing openings.
• Label verification must match the printed part number 6AG1214-1AF40-5XB0 exactly to ensure correct model identification.
• Connector types should align with DC/DC/DC configuration standards for power and signal interface connections.
• Physical condition assessment should check for any signs of damage to the compact CPU housing structure.

• Review project documents to verify that the 125 KB memory capacity meets your application logic requirements.
• Confirm that the operating environment temperature falls within the specified -25 °C to +55 °C range.
• Check power supply specifications to ensure application context with the required 20.4-28.8 V DC input voltage.
• Assess I/O needs against the onboard 14 DI, 10 DQ, and 2 AI channel configuration limits.

• Verify all technical parameters against your specific engineering drawings before initiating the formal inquiry process.
• Ensure that the review restriction policy is understood and accepted prior to submitting inquiry requests.
• Cross-reference the active lifecycle status with your long-term maintenance and support planning requirements.
• Document any special environmental conditions that necessitate the use of the SIPLUS conformal coating feature.
