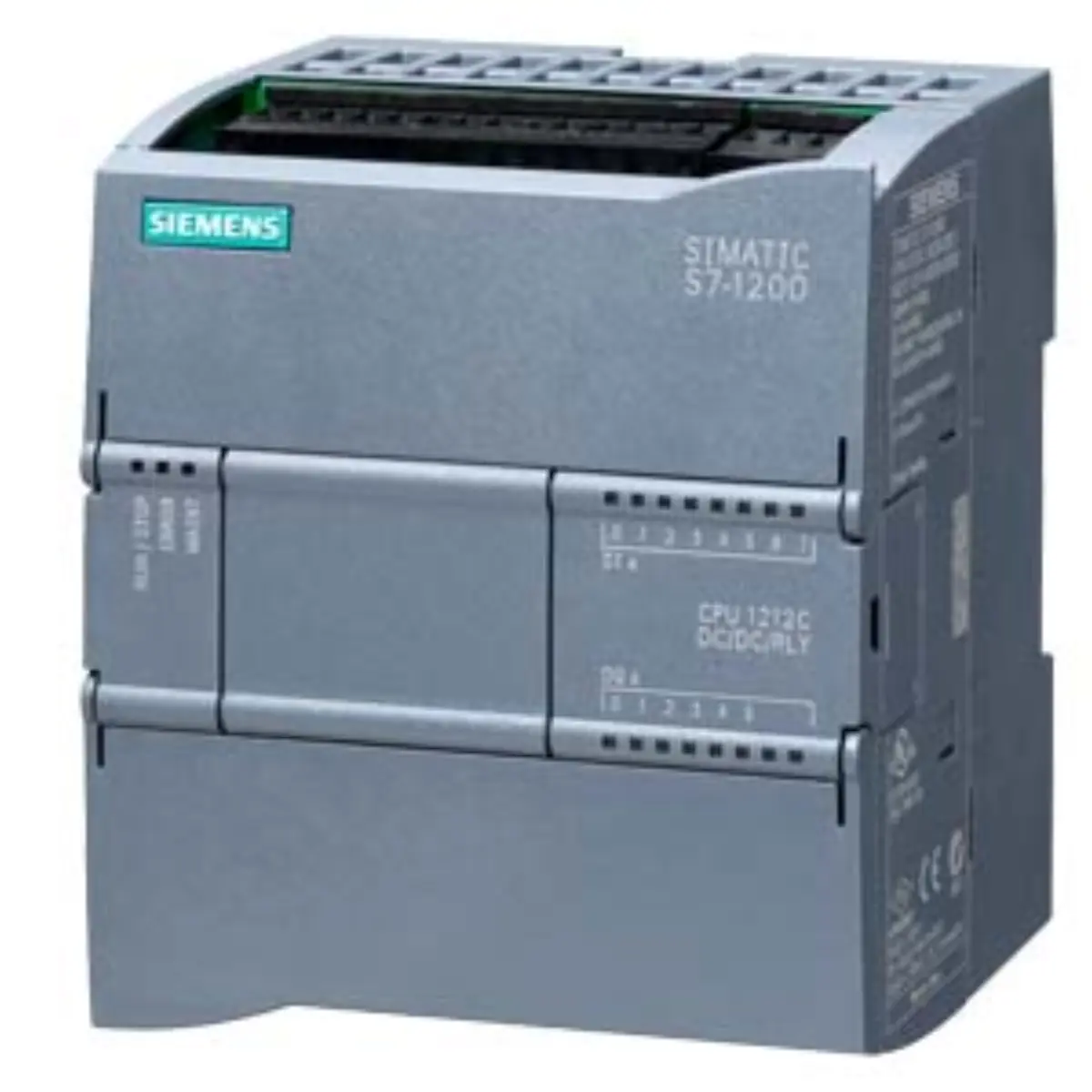

6AG1212-1HE40-4XB0 SIPLUS S7-1200 Compact CPU

Part number

6AG1212-1HE40-4XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

10.5 x 10.00 x 8.2 cm

Net weight

0.323 Kg

Source category

SIPLUS CPU 1212C

• Power supply requirements are specified as 20.4 to 28.8 volts DC for stable operation. Keep dimensions 10.5 x 10.00 x 8.2 cm and net weight 0.323 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs include eight channels configured for 24 volt DC signal processing.
• Digital outputs consist of six relay contacts capable of switching loads up to 2 amperes.
• Analog input capabilities feature two channels supporting voltage signals ranging from zero to ten volts.
• Internal memory allocation provides seventy-five kilobytes for both program storage and data retention tasks.
• Operating temperature range extends from negative twenty degrees Celsius to positive sixty degrees Celsius.

• The part number 6AG1212-1HE40-4XB0 identifies this specific SIPLUS variant within the S7-1200 family. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1212C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Base hardware corresponds to the 6ES7212-1HE40-0XB0 model with added environmental protection enhancements.
• Product classification indicates active status with specific review restrictions requiring direct manufacturer contact.
• Category placement falls under SIPLUS standard CPUs focusing on robust industrial control applications.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as ten point five by ten point zero by eight point two centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1212-1HE40-4XB0 record before publication.
• Net weight is listed at zero point three two three kilograms for logistical planning purposes.
• Input configuration utilizes eight discrete points for binary signal acquisition from field devices.
• Output configuration employs six relay contacts for switching AC or DC load circuits directly.
• Memory capacity supports moderate program complexity with seventy-five kilobytes of non-volatile storage space.

• Visual inspection should confirm the presence of conformal coating on the internal PCB layers. Review Siemens 6AG1212-1HE40-4XB0 as PLC CPUs & Controllers with source category SIPLUS CPU 1212C, recorded lifecycle Active Product, and submitted model identity.
• Label verification must match the full part number including the four XB0 suffix code.
• Connector orientation should align with standard DIN rail mounting practices for secure installation.
• LED indicators must correspond to the standard S7-1200 status display pattern for diagnostics.

• Verify that the operating environment temperature remains within the specified negative twenty to sixty degree range.
• Confirm power supply stability meets the twenty point four to twenty eight point eight volt DC requirement.
• Check that load currents for digital outputs do not exceed the two ampere relay contact limit.
• Ensure analog input signals fall within the zero to ten volt DC measurement window.

• Product class B designation requires contacting the manufacturer for any review or exchange procedures.
• Standard inquiry preparation channels may not apply due to the restricted review note classification.
• Technical support should be engaged early to validate environmental suitability for specific deployment sites.
• Documentation review is essential to ensure compliance with all operational and safety guidelines.
