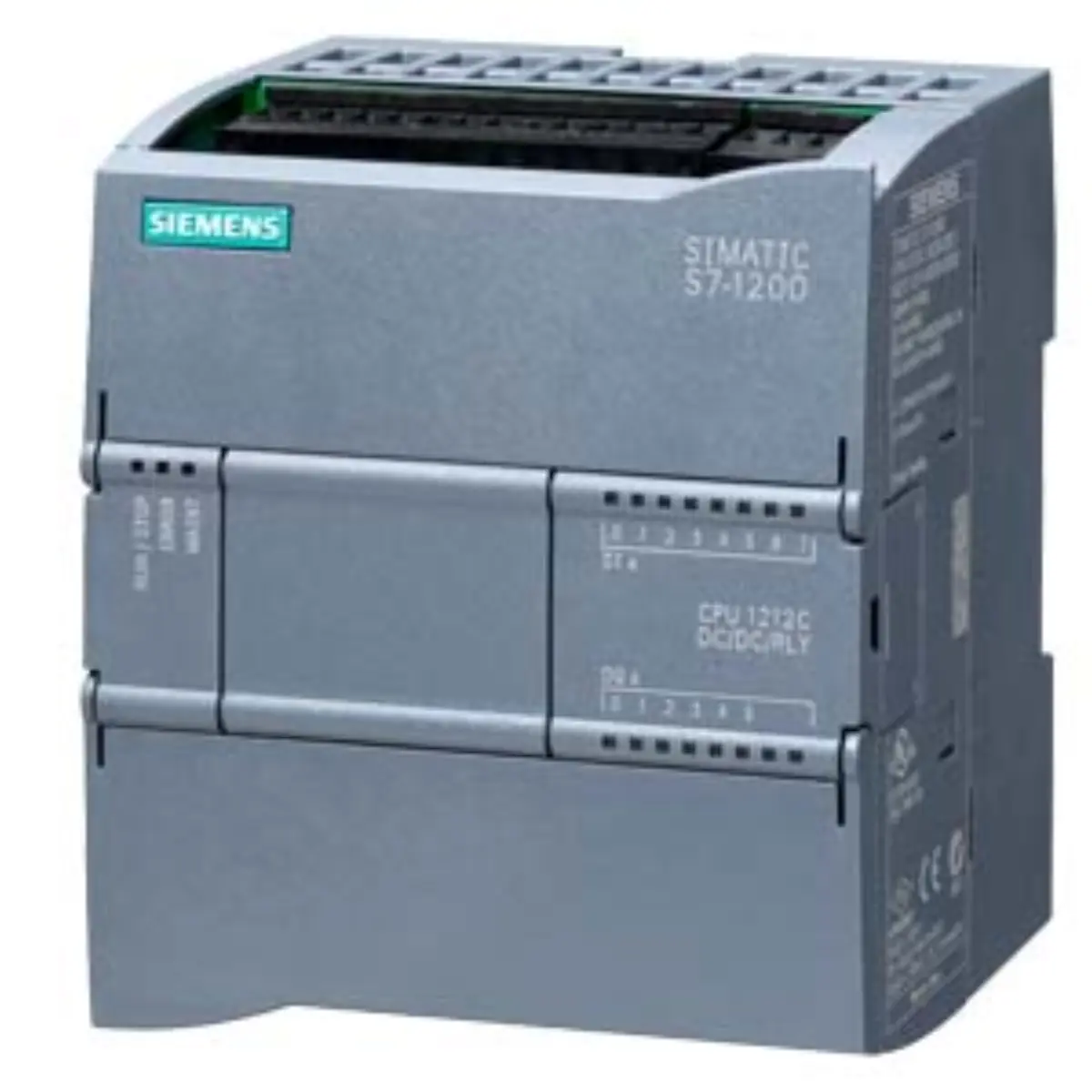

6AG1212-1HE40-2XB0 SIPLUS S7-1200 CPU Controller

Part number

6AG1212-1HE40-2XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

10.5 x 10.00 x 8.3 cm

Net weight

0.34 Kg

Source category

SIPLUS CPU 1212C

• Power supply requirements are specified as DC 20.4 to 28.8 volts for stable operation. Keep dimensions 10.5 x 10.00 x 8.3 cm and net weight 0.34 Kg unchanged while comparing project documents and product image evidence.
• Onboard input/output configuration includes eight digital inputs rated at 24 volts DC.
• Six digital outputs utilize relay technology with a current capacity of two amperes each.
• Two analog inputs support voltage signals ranging from zero to ten volts DC.
• Program and data memory capacity is recorded at seventy-five kilobytes for application storage.
• Operating temperature range extends from minus forty degrees Celsius to plus seventy degrees Celsius.

• The part number 6AG1212-1HE40-2XB0 identifies this specific SIPLUS variant of the S7-1200 series. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1212C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is derived from the base 6ES7212-1HE40-0XB0 with added environmental protections.
• Conformal coating is applied to protect internal circuitry from moisture and corrosive agents.
• The lifecycle status is listed as an active product within the manufacturer's catalog.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 10.5 centimeters in width, 10.00 centimeters in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1212-1HE40-2XB0 record before publication.
• Depth measurement is noted at 8.3 centimeters for spatial planning and mounting considerations.
• Net weight is specified at 0.34 kilograms for logistics and handling documentation purposes.
• Signal board count is listed as zero, indicating no additional expansion modules are attached.
• Startup temperature capability is defined at minus twenty-five degrees Celsius for cold starts.

• Verify the physical label matches the part number 6AG1212-1HE40-2XB0 exactly. Review Siemens 6AG1212-1HE40-2XB0 as PLC CPUs & Controllers with source category SIPLUS CPU 1212C, recorded lifecycle Active Product, and submitted model identity.
• Check for visible signs of conformal coating on the printed circuit board surface.
• Inspect terminal blocks for correct wiring configuration corresponding to DC/DC/relay type.
• Ensure the housing shows no damage that might compromise environmental sealing integrity.

• Confirm the power supply voltage aligns with the 20.4 to 28.8 DC specification. Keep dimensions 10.5 x 10.00 x 8.3 cm and net weight 0.34 Kg unchanged while comparing project documents and product image evidence.
• Review project requirements for the eight digital inputs and six relay outputs needed.
• Assess if the extended temperature range meets the specific installation environment conditions.
• Prepare documentation detailing the seven-five kilobyte memory requirement for your application.

• Class B classification indicates review restrictions requiring direct contact with manufacturer channels.
• Source parameter review should verify all electrical specifications against project needs.
• Project document review ensures the compact CPU form factor fits the control panel.
• Final submission requires accurate confirmation of the part number and technical details.
