Siemens 6AG1212-1AE40-2XB0 Industrial Automation Component Inquiry

Part number

6AG1212-1AE40-2XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

10.5 x 10.00 x 8.3 cm

Net weight

0.34 Kg

Source category

SIPLUS CPU 1212C

• Operating temperature range extends from -40°C to +70°C for continuous industrial application. Keep dimensions 10.5 x 10.00 x 8.3 cm and net weight 0.34 Kg unchanged while comparing project documents and product image evidence.
• Startup capability is confirmed down to -25°C ensuring functionality in cold starts.
• Power supply requirements specify a DC voltage input between 20.4V and 28.8V.
• Onboard digital inputs include eight channels rated for 24V DC signal processing.
• Onboard digital outputs provide six channels configured for 24V DC switching loads.
• Analog input section contains two channels supporting 0-10V DC measurement signals.

• Base model reference is 6ES7212-1AE40-0XB0 with added environmental protection features. Use the source path Automation technology / SIPLUS standard CPUs / SIPLUS CPU 1212C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification indicates active lifecycle status within the manufacturer portfolio.
• Item class B designation suggests specific handling protocols during inquiry preparation processes.
• Brand attribution clearly identifies Siemens as the original equipment manufacturer.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 10.5 cm by 10.00 cm by 8.3 cm. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1212-1AE40-2XB0 record before publication.
• Net weight specification lists 0.34 Kg for logistics and mounting calculations.
• Program and data memory capacity is listed at 75 KB for storage.
• Signal board expansion slots are noted as zero for this specific configuration.
• Form factor is categorized as a compact CPU for space-constrained installations.

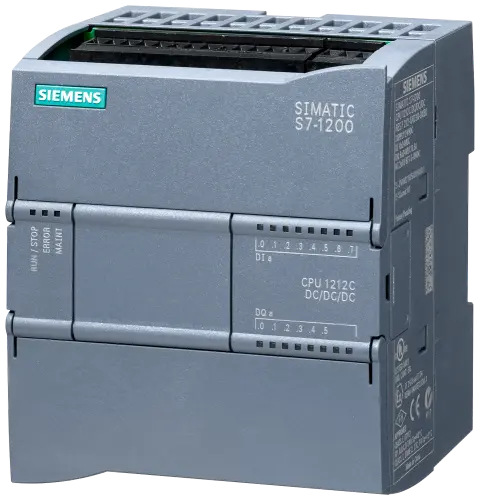

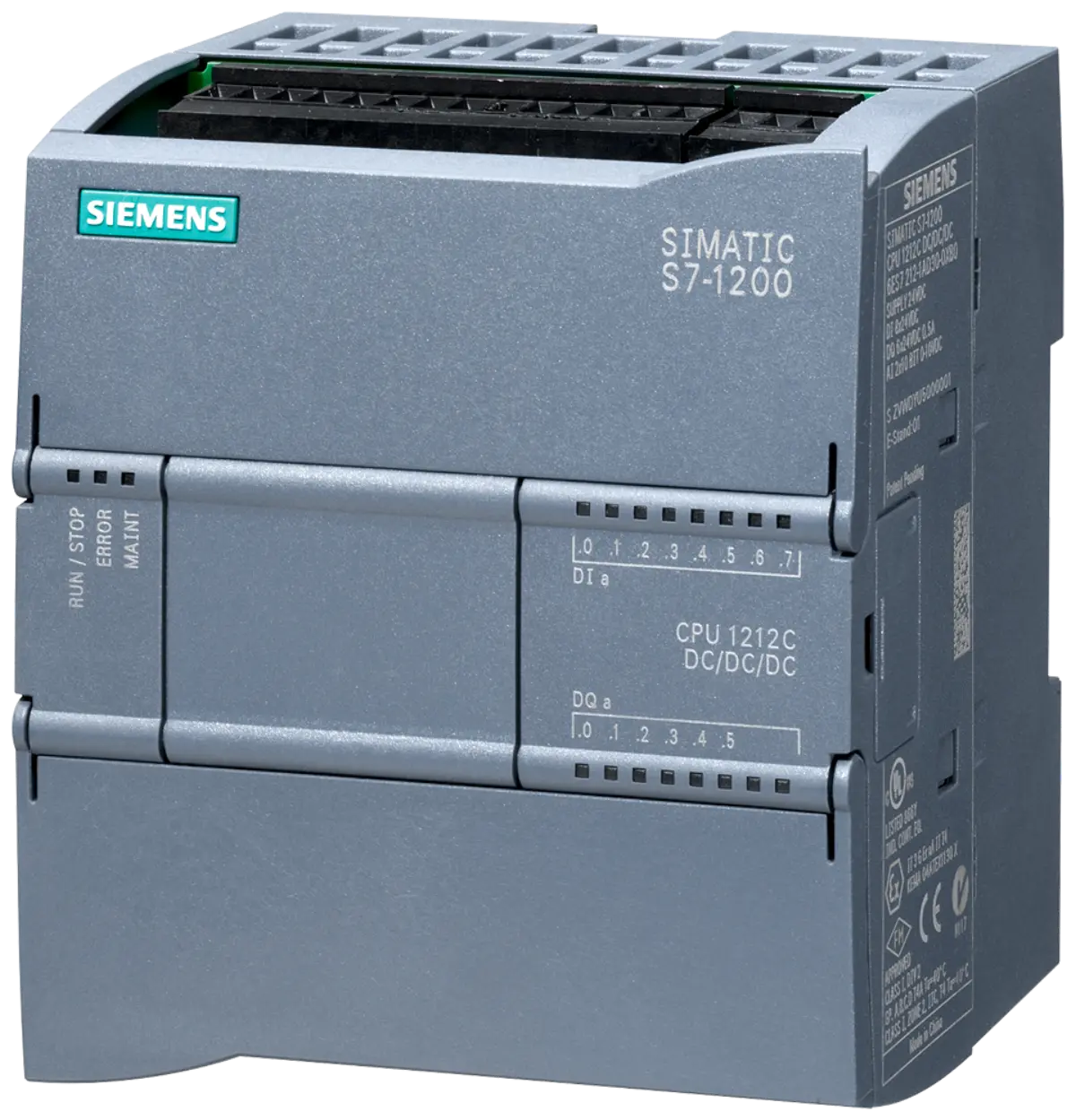

• Visual inspection should confirm the presence of conformal coating on circuit boards. Review Siemens 6AG1212-1AE40-2XB0 as PLC CPUs & Controllers with source category SIPLUS CPU 1212C, recorded lifecycle Active Product, and submitted model identity.
• Labeling must display the full part number 6AG1212-1AE40-2XB0 clearly.
• Connector types should match DC/DC/DC electrical interface specifications.
• Mounting rail clips appear intact for standard DIN rail installation methods.

• Review project documentation to verify temperature requirements against -40°C to +70°C range. Keep dimensions 10.5 x 10.00 x 8.3 cm and net weight 0.34 Kg unchanged while comparing project documents and product image evidence.
• Confirm power supply stability matches the 20.4-28.8 V DC input specification.
• Check I/O count needs against the eight digital inputs and six outputs.
• Assess memory usage requirements to ensure 75 KB capacity meets program size.

• Verify all technical parameters align with specific engineering design constraints.
• Ensure environmental ratings meet the operational site conditions before submission.
• Cross-reference memory limits with current software version requirements for accuracy.
• Document any special handling instructions due to the Class B classification.
