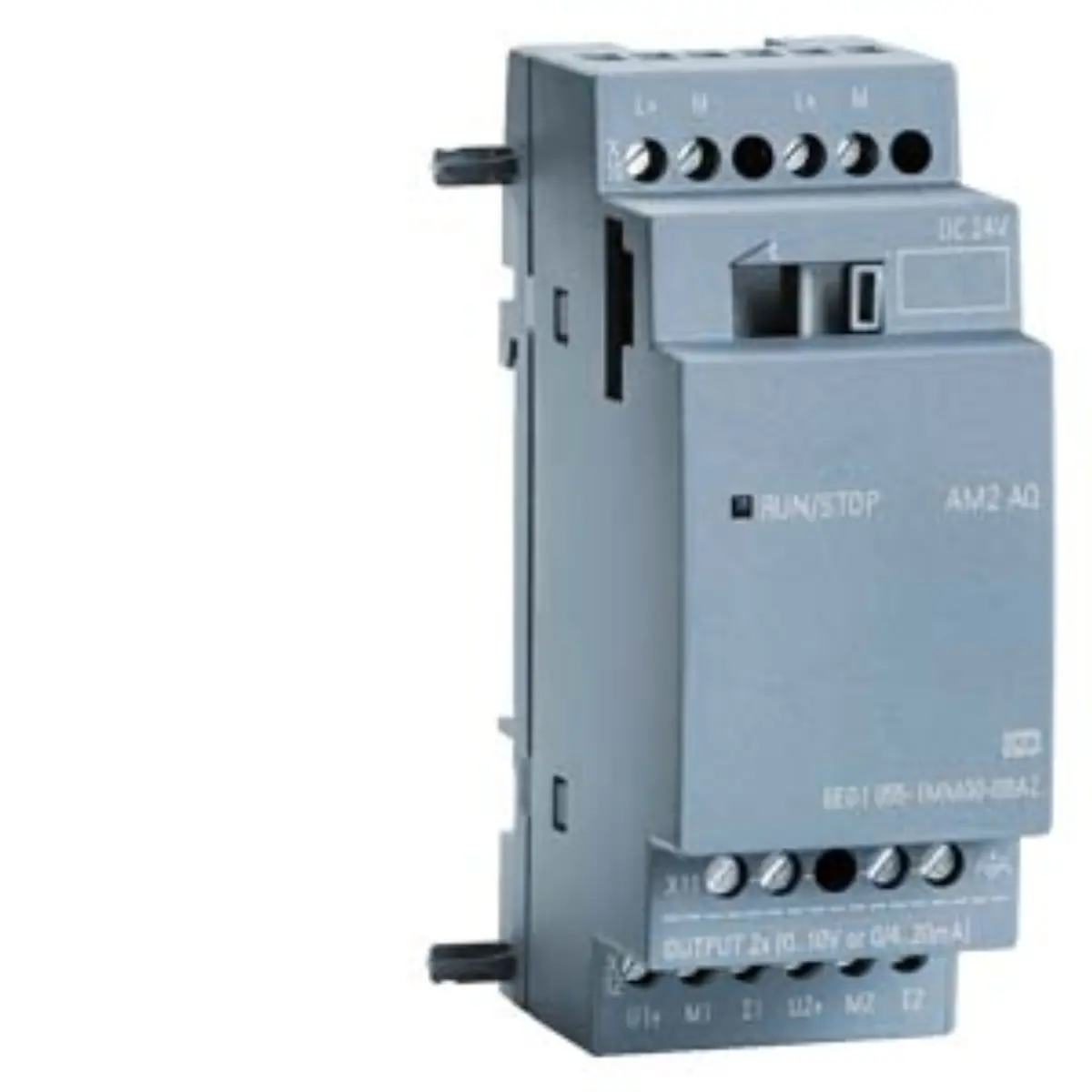

Siemens 6AG1055-1MM00-7BA2 Industrial Automation Component Details

Part number

6AG1055-1MM00-7BA2

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

9.6 x 5.7 x 7.1 cm

Net weight

0.14 Kg

Source category

SIPLUS LOGO! expansion modules

• Physical dimensions are listed as 9.6 x 5.7 x 7.1 cm with a net weight of 0.14 Kg. Keep dimensions 9.6 x 5.7 x 7.1 cm and net weight 0.14 Kg unchanged while comparing project documents and product image evidence.
• The module operates on a 24 V DC power supply system for stable energy consumption.
• It provides two analog output channels configured for standard industrial process control signals.
• Output signal options include 0-10 V voltage range for direct voltage-based device interfacing.
• Current loop capability is supported via a 0/4-20 mA range for robust transmission.
• Operating temperature range extends from -40 to +70 °C for harsh environment resilience.

• The base hardware architecture is derived from the 6ED1055-1MM00-0BA2 reference design. Use the source path Automation technology / SIPLUS LOGO! / SIPLUS LOGO! expansion modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS branding indicates enhanced environmental protection compared to standard LOGO! expansion units.
• Conformal coating is applied to ensure durability against moisture, dust, and chemical exposure.
• Startup temperature specification is recorded at -25 °C for cold climate initialization.

Parameters are factual source fields retained for model review.

• Power supply requirement is strictly defined as 24 V DC for correct module operation. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1055-1MM00-7BA2 record before publication.
• Analog quantity count is fixed at two outputs for simultaneous signal generation tasks.
• Voltage output range spans from zero to ten volts for linear control applications.
• Current output range allows selection between zero-four and four-twenty milliampere modes.
• Environmental rating supports continuous operation in temperatures up to seventy degrees Celsius.

• Visual inspection should confirm the presence of conformal coating on exposed circuit boards. Review Siemens 6AG1055-1MM00-7BA2 as PLC CPUs & Controllers with source category SIPLUS LOGO! expansion modules, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number 6AG1055-1MM00-7BA2 for verification.
• Connector pins should be checked for integrity and absence of physical deformation damage.
• Thermal rating stickers must indicate the extended temperature range capabilities for safety.

• Verify that the target LOGO! 8 controller supports expansion module attachment protocols.
• Confirm power supply stability matches the 24 V DC requirement for this unit.
• Check if the application environment exceeds the -40 to +70 °C operating limits.
• Ensure project documentation includes the specific analog output type needed for sensors.

• Product class B indicates review restrictions requiring direct contact with Siemens representatives.
• Lifecycle status is confirmed as Active Product for ongoing manufacturing and support.
• Source category path links this item to Automation technology and SIPLUS LOGO!.
• All technical data is sourced from documented manufacturer documentation for accuracy assurance.
