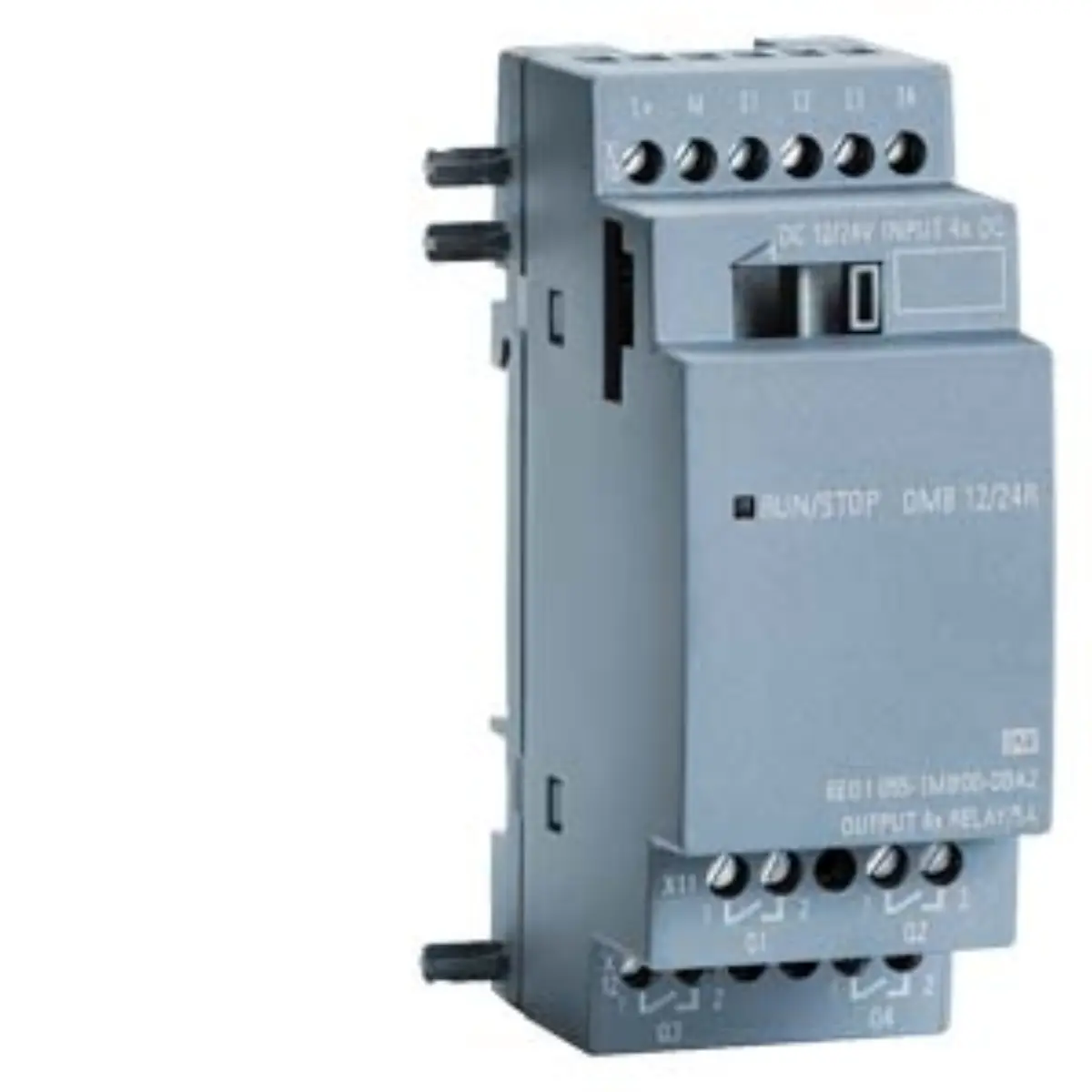

6AG1055-1MB00-7BA2 SIPLUS LOGO! DM8 12/24R Expansion Module

Part number

6AG1055-1MB00-7BA2

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

9.5 x 7.00 x 5.5 cm

Net weight

0.167 Kg

Source category

SIPLUS LOGO! expansion modules

• Power supply requirements are listed as 12, 24 V/12 V/24 V/relay, ensuring flexible integration with various standard industrial voltage levels.
• The module supports two mains interfaces, allowing for efficient power distribution and management within the expanded controller architecture.
• Digital input capacity is recorded as four points, enabling the connection of multiple sensors or switches to the central processing unit.
• Digital output capacity is recorded as four points, utilizing relay technology to handle switching loads for actuators and indicators.
• Operating temperature range extends from -40 to +70 °C, supporting deployment in extreme environmental conditions without performance degradation.
• Startup capability is specified at -25 °C, ensuring reliable initialization even when ambient temperatures are significantly below freezing.

• The base model reference is 6ED1055-1MB00-0BA2, indicating the core hardware configuration upon which the SIPLUS variant is built.
• The SIPLUS designation confirms enhanced environmental protection features, specifically tailored for outdoor or uncontrolled indoor industrial installations.
• The suffix DM8 identifies the specific module type within the LOGO! 8 family, denoting its role as a digital expansion unit.
• The 12/24R designation refers to the relay output configuration, distinguishing it from transistor-based output variants in the product line.
