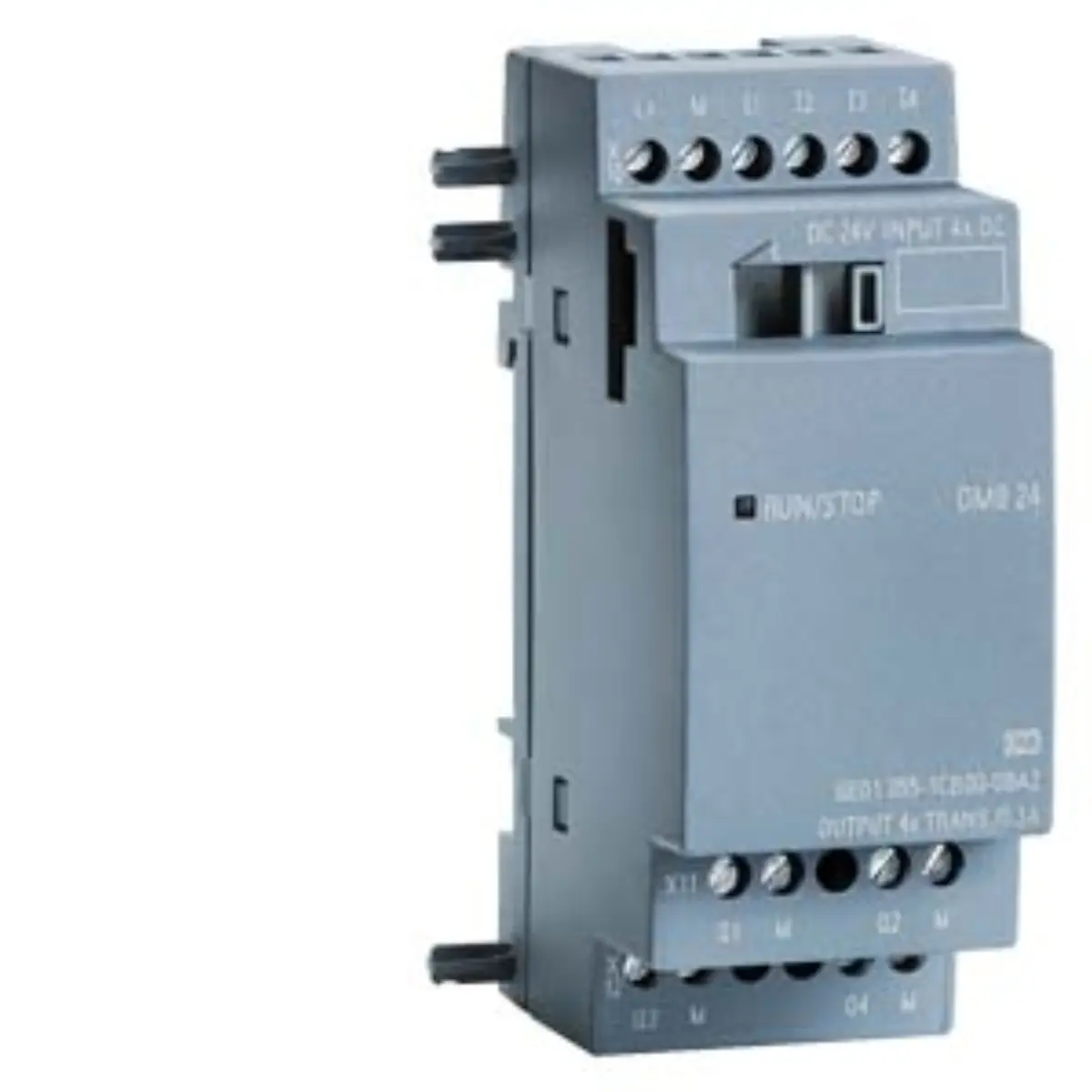

6AG1055-1CB00-7BA2 Siemens SIPLUS LOGO! Expansion Module

Part number

6AG1055-1CB00-7BA2

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Active Product

Dimensions

9.5 x 7.00 x 5.5 cm

Net weight

0.133 Kg

Source category

SIPLUS LOGO! expansion modules

• Base model reference is 6ED1055-1CB00-0BA2, adapted for enhanced environmental resistance through specific material and design modifications.
• Conformal coating protects internal components against moisture, dust, and corrosive agents, extending operational life in difficult environments.
• Operating temperature range spans from -40 to +70 degrees Celsius, allowing functionality in extreme cold or heat scenarios.
• Startup capability is maintained down to -25 degrees Celsius, ensuring reliable initialization even after exposure to low temperatures.
• Power supply configuration utilizes 24 V DC for both power and input/output circuits, standardizing energy requirements for integration.
• I/O configuration provides four digital inputs and four digital outputs, expanding the control capacity of the base LOGO! unit.

• Part number 6AG1055-1CB00-7BA2 identifies the specific variant with extended temperature ratings and protective coating features.
• The prefix 6AG indicates the product belongs to the SIMATIC LOGO! automation system family within the Siemens portfolio.
• Suffix BA2 distinguishes this model from standard versions, highlighting the specialized SIPLUS enhancements for rugged applications.
• Classification as an expansion module confirms its role in augmenting the functionality of a primary LOGO! controller unit.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 9.5 cm by 7.00 cm by 5.5 cm, indicating a compact form factor for DIN rail mounting.
• Net weight is listed at 0.133 kg, reflecting the lightweight construction typical of modern electronic control modules.
• Lifecycle status is noted as Active Product, suggesting ongoing manufacturing or support review details for current projects.
• Product class B indicates restricted review notes, requiring direct contact with designated Siemens review contacts for handling inquiries.
• Source category path places this item under Automation technology, specifically within the SIPLUS LOGO! expansion modules segment.

• Visual inspection should confirm the presence of conformal coating indicators or labeling denoting extended temperature capabilities.
• Check terminal block markings to verify the 24 V power supply and 4 DI/4 DQ configuration layout.
• Ensure the part number label matches 6AG1055-1CB00-7BA2 exactly to avoid confusion with standard LOGO! expansion units.
• Inspect housing integrity for any signs of damage that might compromise the protective coating or environmental sealing.

• Prepare project documentation specifying the required operating temperature range to validate suitability for the -40 to +70 C specification.
• Confirm power supply voltage stability at 24 V DC to ensure proper operation of the digital input and output circuits.
• Review existing LOGO! 8 controller models to determine if additional expansion slots are recorded for this module.
• Contact designated Siemens review contacts directly, as product class B requires specific handling procedures for review and support.

• Verify that the application environment does not exceed the specified thermal limits for continuous operation.
• Ensure mounting hardware is application context with the compact dimensions and weight of the expansion module.
• Cross-reference the base model 6ED1055-1CB00-0BA2 documentation for detailed programming and wiring schematics.
• Confirm that the conformal coating meets industry standards for the specific chemical or moisture exposure risks present.
