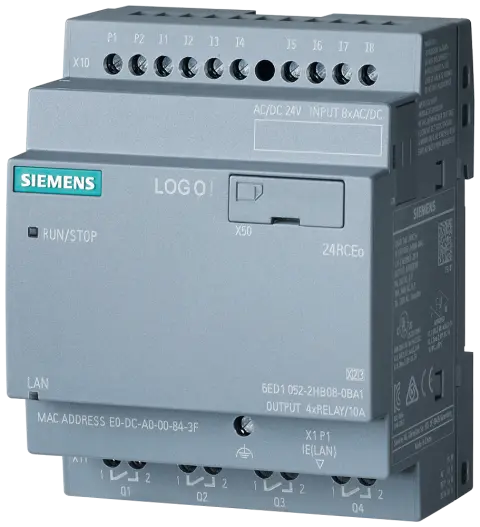

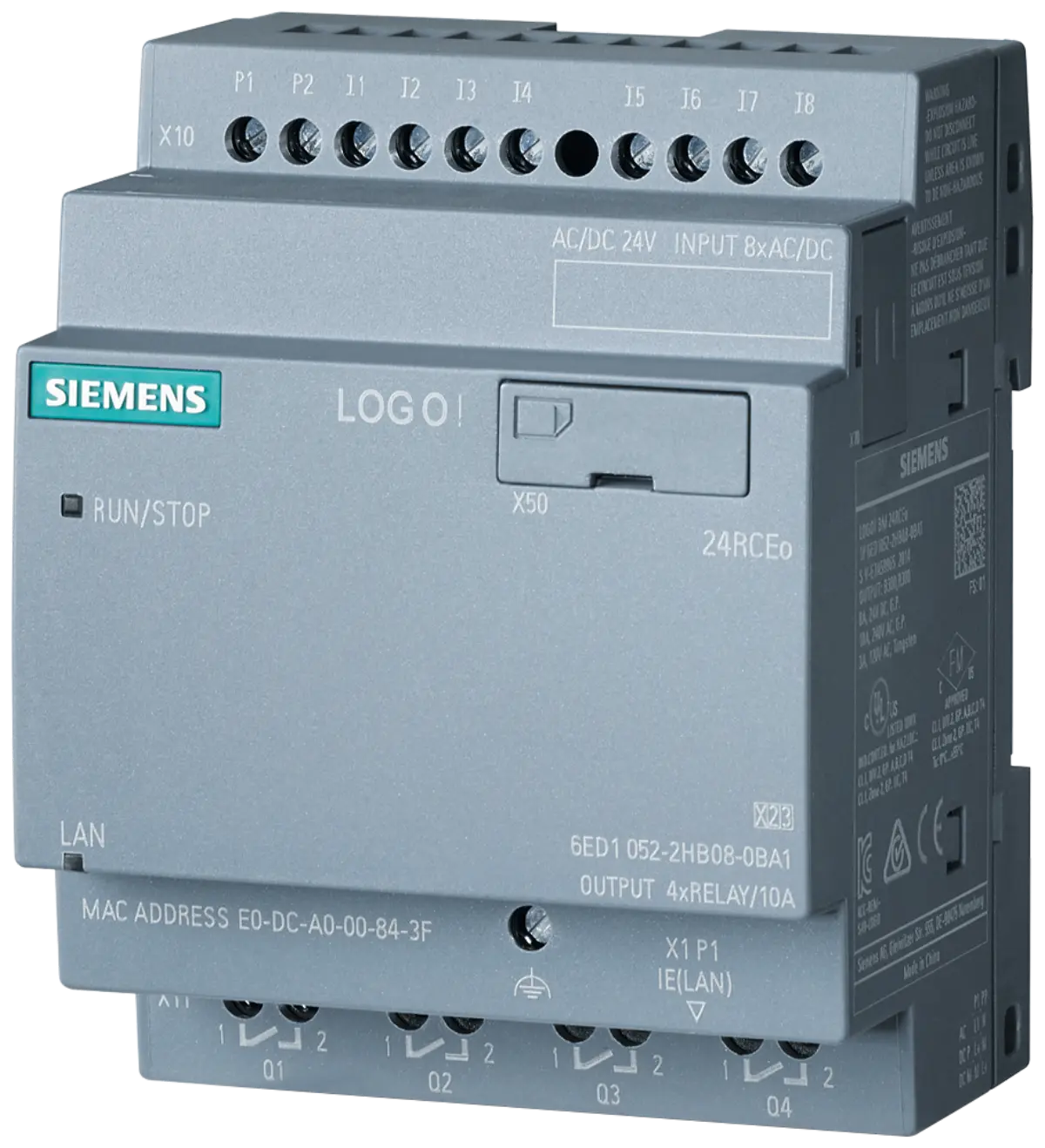

Siemens 6AG1052-2HB08-7BA1 Logic Module Inquiry

Part number

6AG1052-2HB08-7BA1

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Prod. Discont.

Dimensions

10.3 x 8.4 x 7.6 cm

Net weight

0.254 Kg

• Power supply and I/O configuration utilizes 24 V DC input with 24 V AC relay outputs. Keep dimensions 10.3 x 8.4 x 7.6 cm and net weight 0.254 Kg unchanged while comparing project documents and product image evidence.
• The module provides eight digital inputs and four digital outputs for standard control applications.
• Memory capacity supports up to 400 blocks for program storage and execution logic.
• Connectivity includes Ethernet integration with an embedded web server for remote monitoring.
• Data logging capabilities allow for detailed recording of operational events and system states.
• User-defined web pages can be configured for customized interface displays and information.

• This model is classified as a SIPLUS LOGO! 24RCEO variant based on 6ED1052-2HB08-0BA1. Use the source path plc-cpu-controllers to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The part number 6AG1052-2HB08-7BA1 identifies the specific hardened version of the LOGO! series.
• It is categorized under PLC CPUs & Controllers within industrial automation hardware classifications.
• The lifecycle status indicates production discontinuation, requiring careful project planning and review.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 10.3 cm by 8.4 cm by 7.6 cm for space planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1052-2HB08-7BA1 record before publication.
• Net weight is listed at 0.254 Kg, facilitating transport and mounting logistics calculations.
• The class B designation notes review restrictions, advising contact with designated Siemens review contacts.
• Standard microSD card support enables use with LOGO! Soft Comfort V8.3 or higher versions.

• Visual inspection should confirm the presence of the conformal coating on internal circuitry. Review Siemens 6AG1052-2HB08-7BA1 as PLC CPUs & Controllers with source category plc-cpu-controllers, recorded lifecycle Prod. Discont., and submitted model identity.
• Check terminal block markings for correct 24 V DC and AC relay output identification.
• Verify Ethernet port integrity and status indicator lights for network connectivity assessment.
• Ensure the microSD card slot is accessible for software updates and data extraction.

• Review project requirements against the -40 to +70 degree Celsius operating temperature range. Keep dimensions 10.3 x 8.4 x 7.6 cm and net weight 0.254 Kg unchanged while comparing project documents and product image evidence.
• Confirm that eight digital inputs and four digital outputs meet control logic needs.
• Assess memory requirements to ensure 400 block capacity suffices for application complexity.
• Evaluate network infrastructure application context for Ethernet integration and web server functionality.

• Source parameter review should verify all electrical specifications against current project standards.
• Project document review must account for the discontinued lifecycle status of this unit.
• Technical evaluation should consider the modular expandability features for future system growth.
• Cloud connection capabilities in LOGO! 8.3 basic units require additional software licensing.
