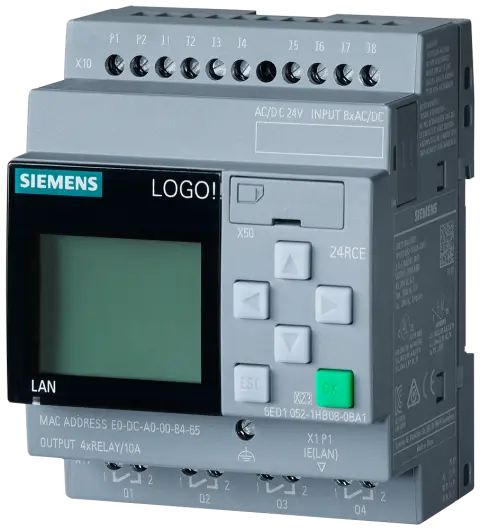

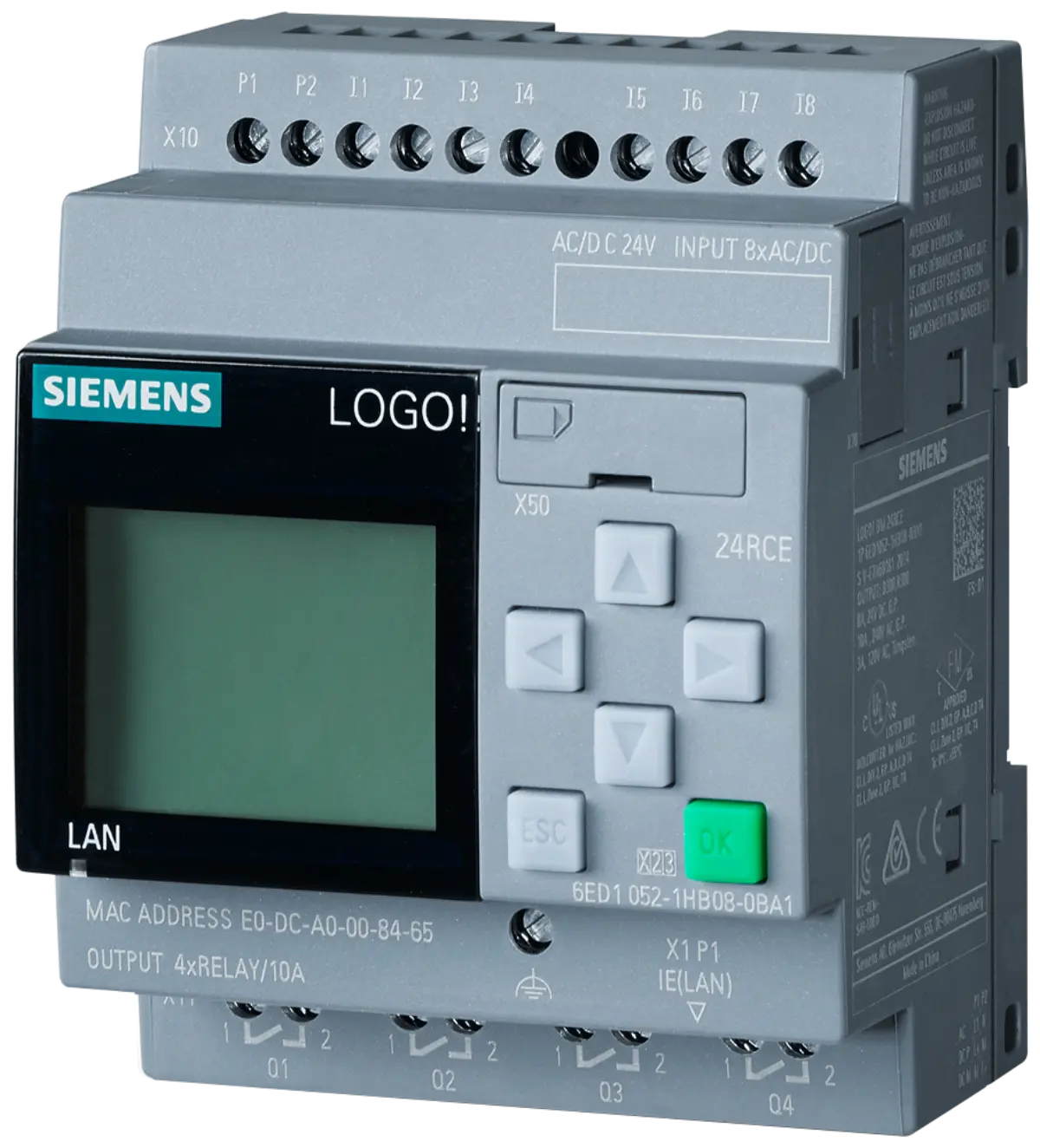

Siemens 6AG1052-1HB08-7BA1 Industrial Automation Component Inquiry

Part number

6AG1052-1HB08-7BA1

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Prod. Discont.

Dimensions

10.3 x 8.4 x 7.6 cm

Net weight

0.29 Kg

• Power supply requirements are listed as 24 V AC/DC for both logic operation and input/output circuitry connections. Keep dimensions 10.3 x 8.4 x 7.6 cm and net weight 0.29 Kg unchanged while comparing project documents and product image evidence.
• The module includes eight digital inputs and four digital outputs utilizing relay technology for switching control signals.
• Memory capacity allows storage of up to 400 blocks for program execution and data retention during operation cycles.
• Connectivity options include Ethernet integration with an embedded web server for remote monitoring and configuration access.
• Physical dimensions are recorded at 10.3 x 8.4 x 7.6 cm with a net weight of 0.29 Kg.
• Operating temperature range spans from -25 to +60 °C with startup capability initiated at -20 °C minimum.

• The base hardware corresponds to the SIPLUS LOGO! 24RCE series derived from the 6ED1052-1HB08-0BA1 reference design. Use the source path plc-cpu-controllers to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Conformal coating application is a key identifier distinguishing this variant for enhanced environmental protection and durability.
• Lifecycle status is documented as Production Discontinued, indicating current manufacturing status for inventory planning purposes.
• Product class B designation requires direct contact with documented Siemens representatives for further handling instructions.

Parameters are factual source fields retained for model review.

• Modular expansion capabilities allow integration with additional interface modules to extend input/output count as needed.
• Data logging functions support recording operational metrics for analysis and troubleshooting within the control system environment.
• User-defined web pages can be configured via the integrated server for customized operator interface displays.
• Standard microSD card slots facilitate software updates and project loading using LOGO! Soft Comfort V8.3 or higher.
• Cloud connection features are enabled across all LOGO! 8.3 basic units for remote data transmission access.

• Visual inspection should confirm the presence of conformal coating on internal components for environmental resistance verification.
• Labeling must clearly display the full part number 6AG1052-1HB08-7BA1 for accurate inventory and inquiry matching.
• Terminal block connections should be examined for integrity to ensure proper electrical contact for power and signals.
• Ethernet port visibility confirms network connectivity options recorded for remote management and data exchange protocols.

• Review project documents to verify if the discontinued status aligns with long-term maintenance requirements.
• Confirm power supply specifications match the 24 V AC/DC requirement for seamless integration into existing systems.
• Assess environmental conditions to ensure the -25 to +60 °C range meets operational temperature demands.
• Prepare technical questions regarding the Class B review restriction policy for complete compliance understanding.

• Verify all technical parameters against current project specifications before submitting detailed inquiry requests.
• Consider the production discontinuation status when planning future expansions or spare part record strategies for systems.
• Ensure compliance with Class B handling guidelines to avoid potential logistical issues during inquiry preparation.
• Cross-reference memory block limits and I/O counts to confirm suitability for complex control logic needs.
