Inquiry: Siemens 6AG1052-1CC08-7BA1 Logic Module

Part number

6AG1052-1CC08-7BA1

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

PLC CPUs & Controllers

Lifecycle

Prod. Discont.

Dimensions

10.3 x 8.4 x 7.6 cm

Net weight

0.246 Kg

• Power supply and I/O configuration utilizes 24 V DC for both logic and input/output connections. Keep dimensions 10.3 x 8.4 x 7.6 cm and net weight 0.246 Kg unchanged while comparing project documents and product image evidence.
• Input capacity includes eight digital inputs alongside four analog inputs for versatile signal processing.
• Output configuration provides four digital outputs to control various actuators and switching devices directly.
• Memory allocation allows storage of up to 400 blocks for complex program execution and data retention.
• Modular expansion options enable the integration of additional modules to scale system functionality as needed.
• Communication features include an integrated Ethernet port supporting web server functions and data logging tasks.

• The part number 6AG1052-1CC08-7BA1 identifies this specific variant within the SIPLUS LOGO! product family. Use the source path plc-cpu-controllers to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is based on the standard LOGO! 24CE model with part number 6ED1052-1CC08-0BA1.
• The suffix 7BA1 denotes the extended environmental rating and conformal coating application for rugged use.
• Lifecycle status is recorded as Production Discontinued, indicating limited future manufacturing support review details.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 10.3 cm by 8.4 cm by 7.6 cm for space planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1052-1CC08-7BA1 record before publication.
• Net weight is listed at 0.246 Kg, which assists in calculating load requirements for mounting.
• Operating temperature range spans from -25°C to +60°C for diverse climatic condition applications.
• Startup temperature limit is specified at -20°C to ensure reliable initialization in cold starts.
• Software requirement specifies LOGO! Soft Comfort version 8.3 or higher for programming tasks.

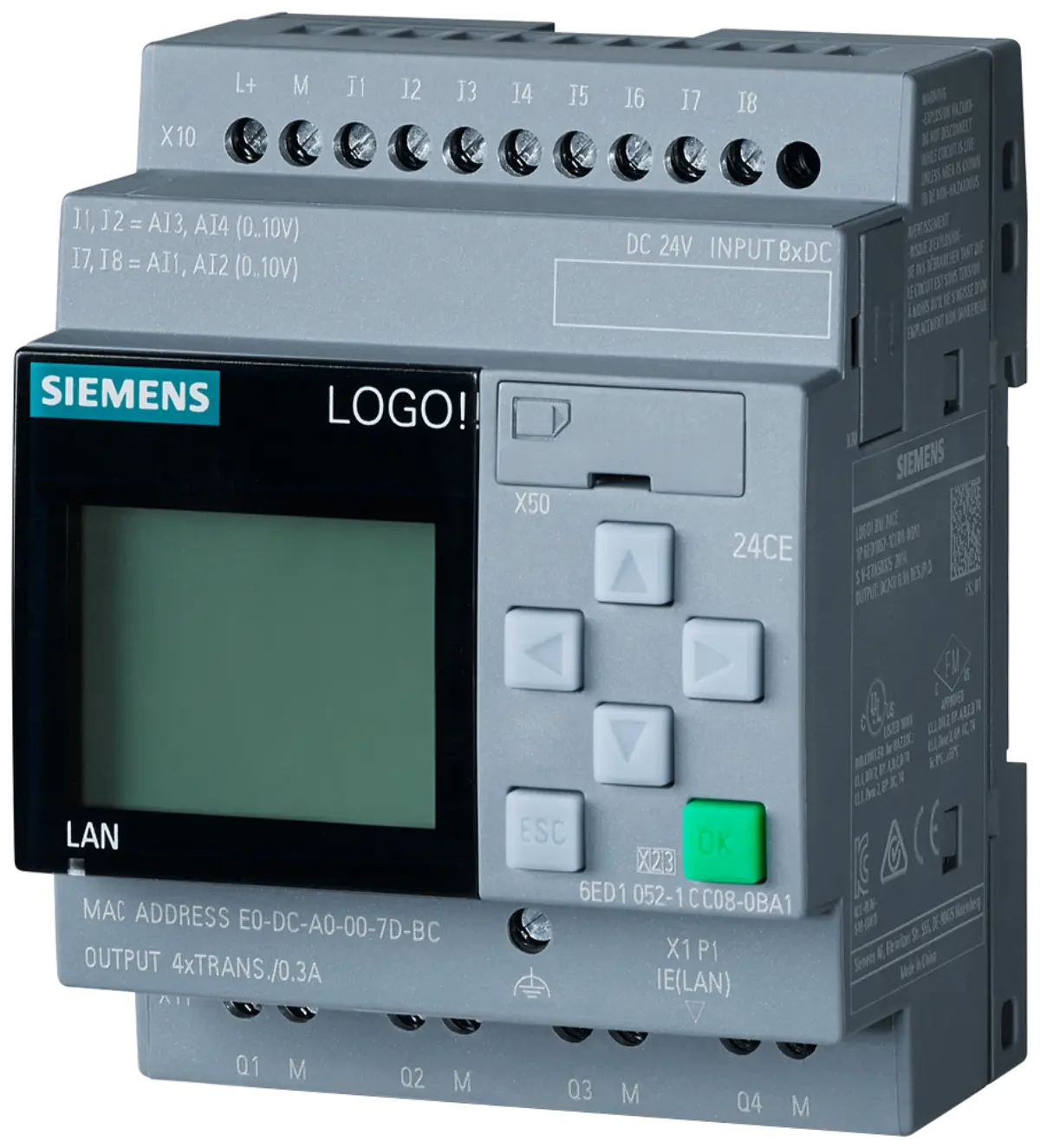

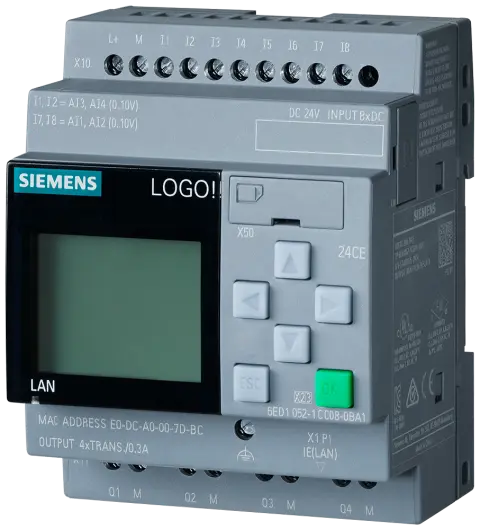

• Verify the presence of the display screen and indicator lights on the front panel face.
• Check for the integrated Ethernet port location and status LEDs near the communication interface.
• Inspect the terminal block area for input and output connection points clearly marked on housing.
• Confirm the microSD card slot position for data logging and software update procedures.

• Prepare project documents specifying required input/output counts and environmental operating conditions for review.
• Document existing system architecture to assess integration points with current control network infrastructure.
• Note the discontinued lifecycle status when evaluating long-term maintenance and support strategy options.
• Include specific questions regarding the review restriction class B for handling and logistics planning.

• Source parameter review confirms the technical specifications align with the SIPLUS extended environment series.
• Model identification notes highlight the relationship between the standard and coated variants for clarity.
• Lifecycle assessment indicates discontinued production status, requiring careful consideration for new installations.
• Inquiry preparation steps ensure all necessary technical and logistical details are captured accurately.
